Automatic Ice Cube Filling Machine With Large Ice Maker

Application:
This automatic ice filling machine with a large ice maker is designed for efficiently dispensing ice cubes into cups for frozen drinks, smoothies, and cold beverages.

Package Type:
This automatic ice filling machine with a large ice maker supports various packaging formats to meet different production needs. It can fill ice cubes directly into cups, plastic containers, or bags, ensuring clean and consistent portioning. Ideal for frozen drink preparation, food service packaging, and commercial ice distribution, it provides flexible, efficient, and hygienic packaging solutions for both retail and industrial applications.

Wide Application Range:
This Ice Cube Plastic Cup Filling and Sealing Machine is designed for fully automated cup packaging of ice cubes or similar frozen products. It features precise filling, rapid sealing, and stable operation, ensuring clean, leak-proof, and attractive packaging. The compact and hygienic stainless-steel structure makes it suitable for high-speed production lines and easy maintenance.
1. Frozen Beverages & Ice Products
Ideal for packing ice cubes, crushed ice, flavored ice, and small frozen desserts in individual plastic cups for retail and takeaway.
2. Dairy & Nutritional Drinks
Can be applied to yogurt, milk-based drinks, smoothies, or protein shakes in single-serve cups, ensuring precise portion control and hygienic sealing.
3. Food & Snack Industry
Suitable for small frozen fruits, jellies, or chilled desserts that require individual portion packaging in plastic cups
4. Beverage & Cocktail Mixes
Used for ready-to-drink cocktails, iced coffee, or juice blends that need ice and liquid packaged together in convenient plastic cups.

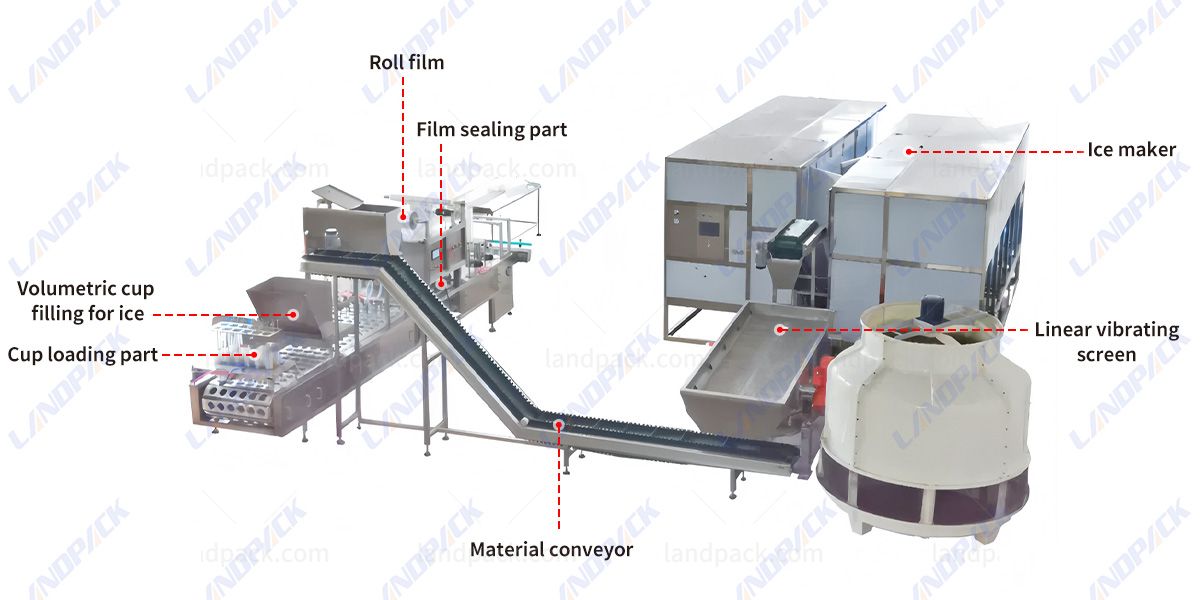

Key Component:
1. Ice Maker
2. Linear Vibrating Screen
3.  Material Conveyor
4. Volumetric Cup Filling For Ice
5. Cup Loading Part
6. Roll Film
7. Film Sealing Part

Feature:

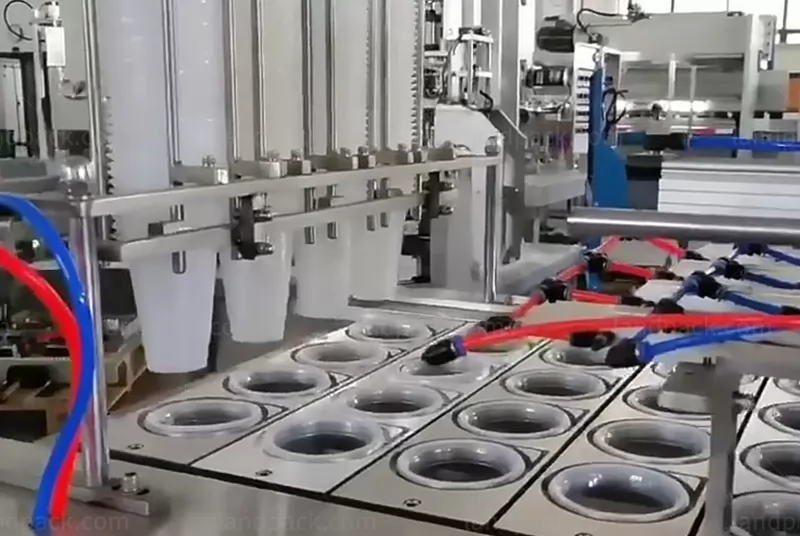

Cup Feeding System The automatic cup feeding system accurately delivers and positions each cup under the filling station. Designed for smooth and stable operation, it prevents jamming and supports different cup sizes. Its hygienic design ensures clean handling, making it ideal for high-speed beverage or ice packaging lines.
	Ice Filling System Equipped with a large ice maker and precise dispensing mechanism, the ice filling system automatically measures and fills the exact amount of ice into each cup. The inclined feeding design minimizes ice breakage and ensures fast, uniform filling for frozen drinks and beverage production.

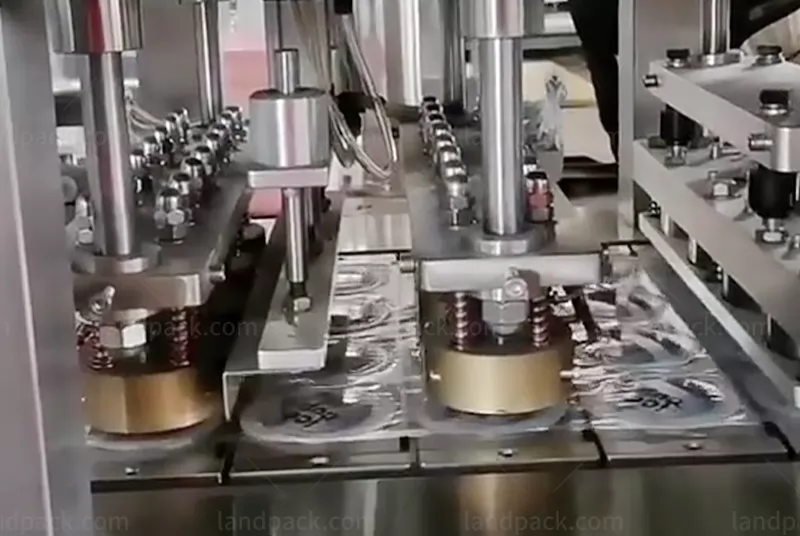

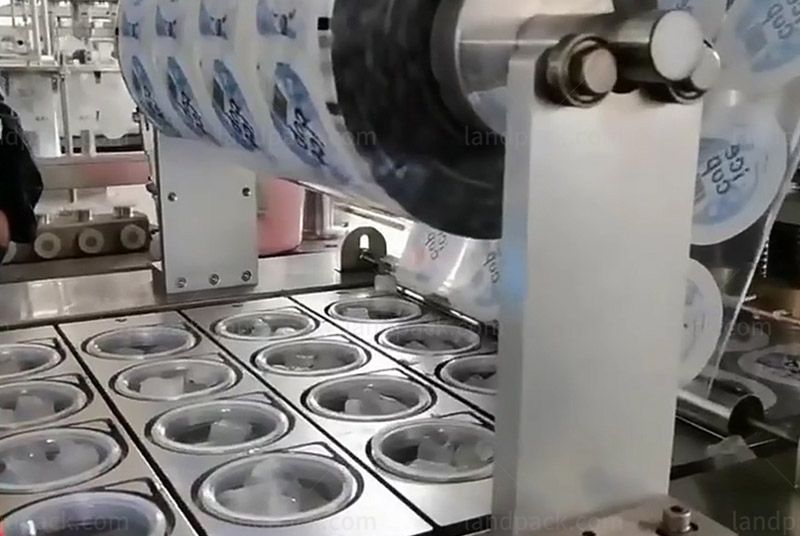

Film Sealing System The film sealing system automatically pulls, positions, and heat-seals the film onto the cup top with strong, airtight sealing. It guarantees leak-proof packaging, maintains product hygiene, and ensures a clear, professional finish — suitable for both cold-chain storage and retail display.
	Smart Control Panel User-friendly touch screen with PLC system allows for easy parameter setting, fault detection, and operation monitoring.
