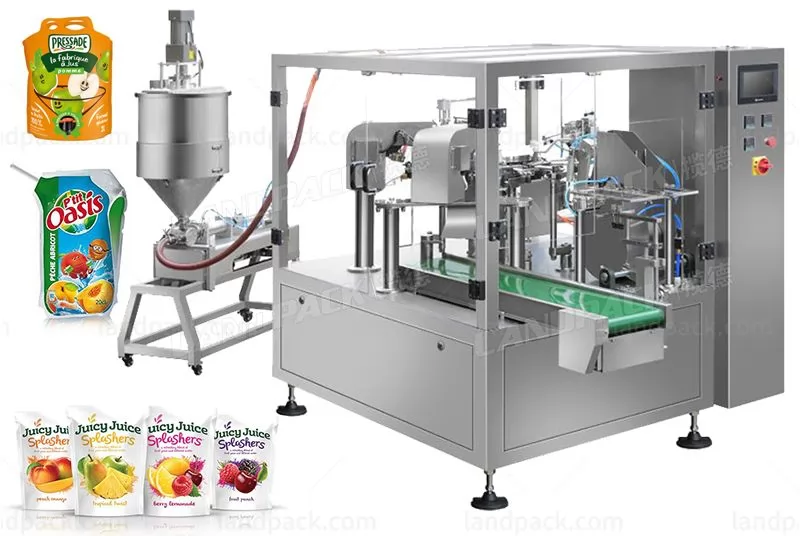

Automatic Doypack Pouch Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.

Packaging samples: 应用图.jpg

1. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..

3. Automatic checking system can check bag situation, filling and sealing situation.

4.The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..

5. The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

ModelLD-GD7749
Bag SizeWidth:80-210/200-300mm, Length:100-300/100-350mm
Filling Volume5-2500g (Depending on type of products)
Capacity30-80bags/min (The speed depends on type of products and packaging material used)
25-50bags/min (For zipper bag)
Package AccuracyError≤±1%
Total Power2.5KW (220V/380V,3PH,50HZ)
Demension1750*1550*1650 (L*W*H)
Weight1480KGS
Compress Air Requirement≥0.8m³/min supply by user
