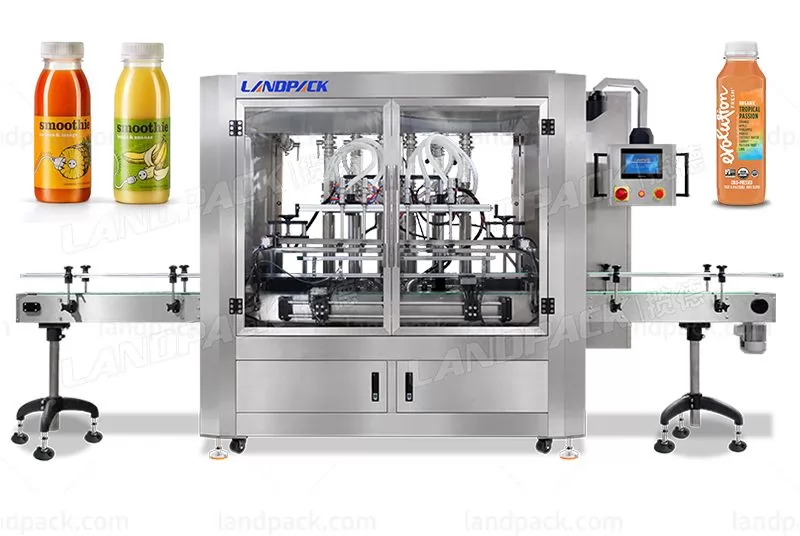

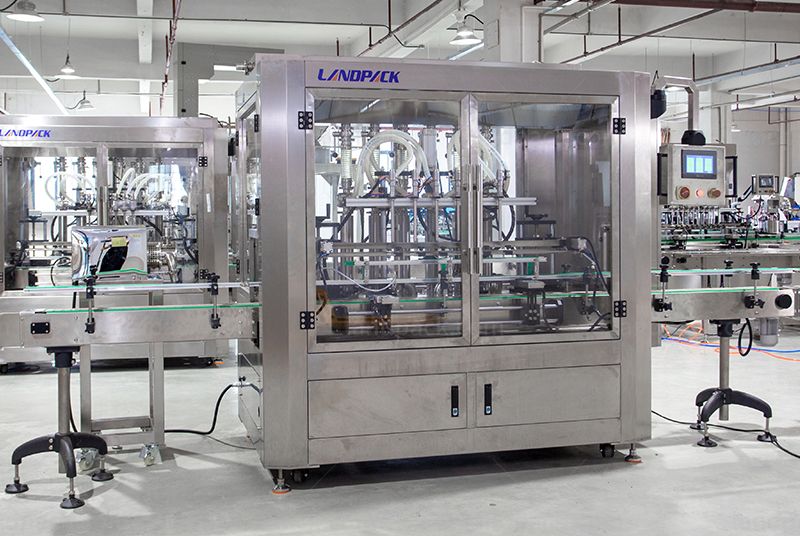

Automatic Juice Filling Machine Bottle Liquid Filler

  • Application
  • Description
  • Parameter
  • Video

Application:

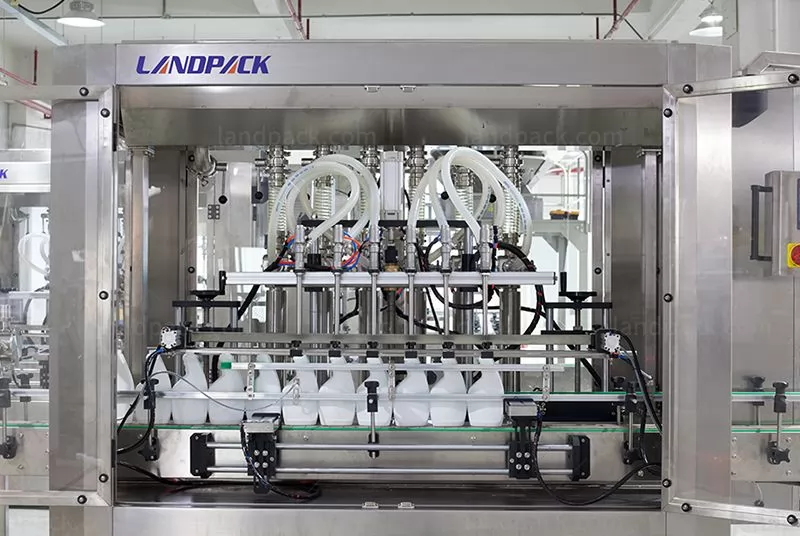

The automatic piston filling machine adopts quantitative filling of the plunger bottle-in, positioning, filling and bottle-out are all automatically controlled by the PLC, conforming to the GMP standard. Applicable for medicine, food, daily chemicals, pesticides and fine chemicals, and other varieties of product filling.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

packaging sample:应用图2.jpg

1. Adopts world-famous brands of electrical and pneumatic components, low failure rate, reliable performance, long service life.

2. Material contact parts are made of stainless steel, easy to disassemble and assemble, easy to clean and meet the requirements of GMP.

3. Easy to adjust filling volume and filling speed, operated and displayed by touch screen, beautiful appearance.

4. With no bottle no filling function, liquid level automatic control feeding.

5. Piston Seals with Tetrafluorine Technology improve the wear resistance of the piston seals (service life is 12 months or more) and have a good applicability to materials.

6. No need to change parts, you can quickly adjust the various specifications of the shape of the bottle.

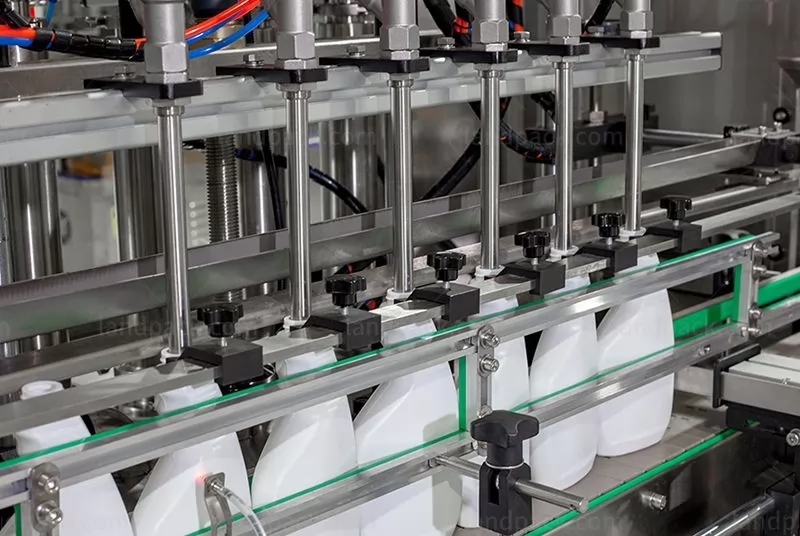

7. The filling head is equipped with a special leak-proof device. No wire drawing or drip leakage.

Model
LD-005
Filling range
50-1000ml
Filling speed
<30-50 bottles/min(Base on100-500ml)
Measurement accuracy
±1%
Power
380V,220V / 3.2kw
Working air pressure
6-7kg/㎡
Gas consumption
0.6mpa
Weight
1200kg

After receiving your inquiry,We will send you the quotation as soon as possible.
