Application:

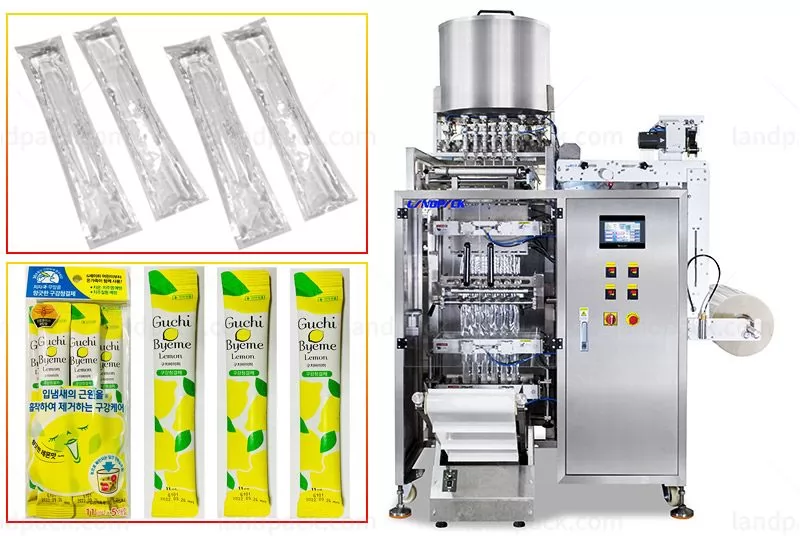

Automatic Multi Track Juice/ Liquid Sealing Sachet Packing Machine, It is widely applied for food, medicine, chemical liquid products such as beverage, juice, medicine liquid, health care liquid, sauce, seasoning, ketchup, flavoring, sauce, pasty, shampoo, cream, body wash liquid and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging sample:
English and Chinese screen display, operation is simple.
PLC computer system, function is more stable, adjustment any parameters not need stop machine.
It can stock ten dispose, simple to change variety.

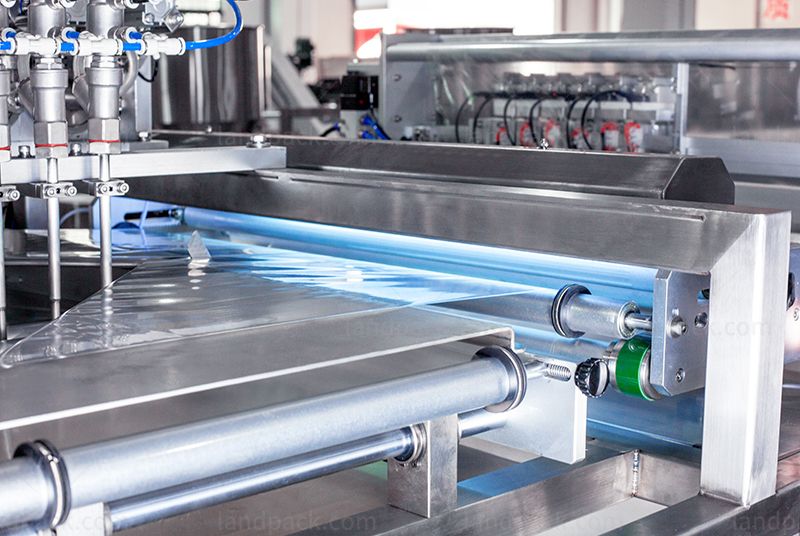

Sever motor drawing film, position accurately.
Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
Bag-making, sealing, packing, print date in one operation.
Model | LDFS480L | LDFS720Y | LDFS960Y |
Lanes quantity | 4~6 lanes | 4~10 lanes | 4~12 lanes |
Capacity | Max．40 bags／lane／min | Max．40 bags／lane／min | Max．40 bags／lane／min |
Bag size | L:45-120mm W:35-60mm | L:45-120mm W:35-90mm | L:45-120mm W:35-120mm |
Film width＆ thickness | Max.480mm,0.05-0.1mm | Max 720mm,0.05-0.1mm | Max 960mm,0.05-0.1mm |
Sealing type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
Power | 28KW.1N+PE/50HZ/AC220V | 4.1KW,1N+PE/50HZ/AC220V | 5.5KW,1N+PE/50HZ/AC220V |
Air consumption | 0.8 Mpa 0.8m3/min | 0.8 Mpa 0.8m3/min | 0.8 Mpa 0.8m3/min |
Dimension | L950XW1470XH1750mm | L1153XW1654XH1750mm | L1415XW1686XH2130mm |
Weight | 300kg | 400kg | 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
