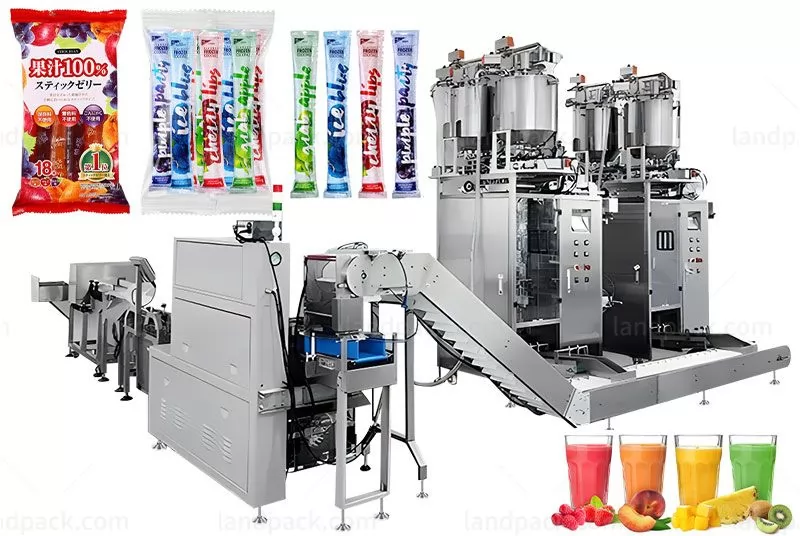

Automatic Multi Lane Juice Packaging Machine Sachet Packaging Cartoning System

  • Application
  • Description
  • Parameter
  • Video

Application:

It is suitable for the packaging of various liquid products, such as juice, ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Sample:Automatic Multi Lane Juice Packaging Machine Sachet Packaging Cartoning System

1. It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, cartoning and other functions;

2. The heat-generating parts and moving parts are hidden in the protective cover;

3. The contact part of the box and material is made of 304 stainless steel, which meets the requirements of medicines and food production;

4. The equipment is equipped with casters for easy handling and movement.

5. Automatic alarm protection, saving materials, and no wasting film.

MULTI-LANE STICK PACK LIQUID PACKAGING MACHINE
Model
LD560BY
Lane number
3-12 Lanes
Filling Method
Piston pump; Peristaltic pump; Ceramic pump; Rotary pump
Capacity
Max.50 cycles/min
Sachet size
L: 50-180mm; W: 17-90mm
Film width & Thickness
Max.560mm, 0.07-0.10mm
Sealing type
Back sealing/ Stick bag
Cutting type
1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut
Air & Power
0.8Mpa, 0.8m³/min,3.5kw
Dimension & weight
1385*918*2005mm,350kg
BOXING MACHINE
Model
LD200ZH
Paper type
250-400g/²(Boxes need come with pre-fold over)
Capacity
30-60 boxes/min
Box type
Gusseted tongue type; Glue spray type
Count way
Fixed number type; Numerable type; Manipulator counting
Boxing way
Orderly type; Unorderly type
Air & Power
0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW
Workflow
Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish

After receiving your inquiry,We will send you the quotation as soon as possible.
