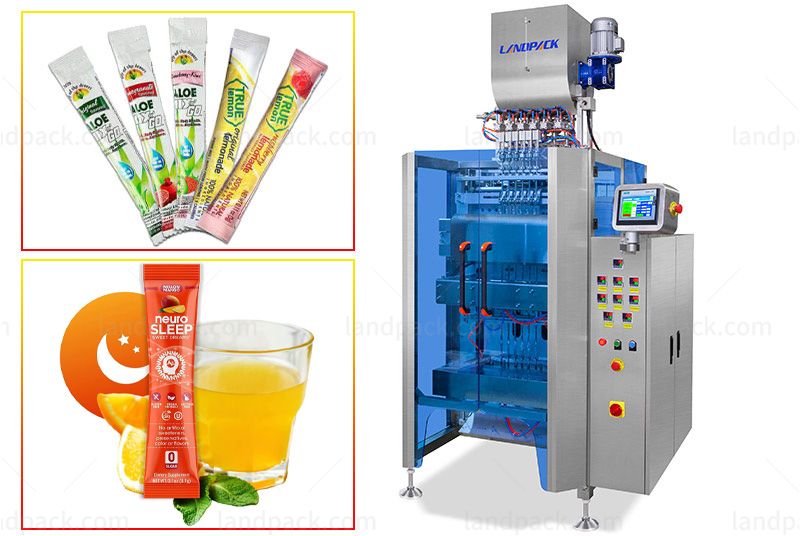

Automatic Multi Lane Liquid/ Juice Stick Packing Machine

  • Application
  • Description
  • Parameter
  • Video


Automatic Multi Lane Liquid/ Juice Stick Packing Machine, This machine is suitable for the packaging of medicine, cosmetics, food, chemical products, such as beverage, juice, medicine liquid, health care liquid, olive oil, ketchup, sauce, seasoning, flavoring, sauce, pasty, shampoo, cream, body wash liquid and so on.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Multi Lane Liquid/ Juice Stick Packing Machine

PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

External film releasing mechanism: simpler and easier installation of packing film.

Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.

Track Number4~6 Track8~12 Track

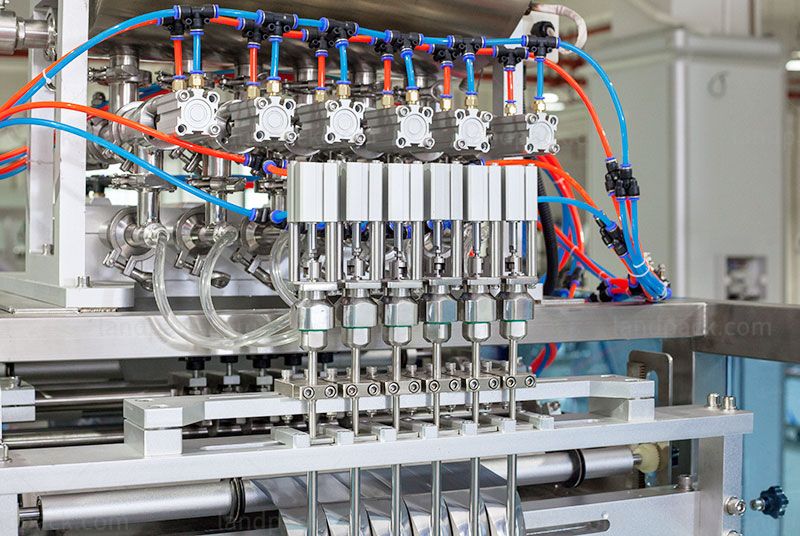

Filling Method1.Piston pump;   2.Peristaltic Pump;  3.Volumetric cup
CapacityMax.35 cycle/min
Sachet SizeL:50--180mm; W:17-30mmL:50--180mm; W:17--30mm
Film Width & ThicknessMax.280mm; 0.07-0.1mmMax.560mm; 0.07-0.1mm
Sealing Type Backsealing/ Stick bag
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw
