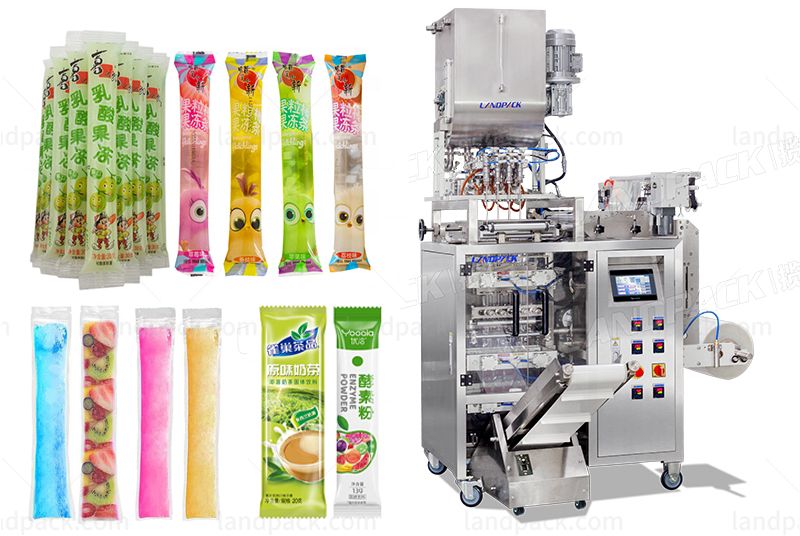

Automatic 4 Multi-Lane Sachet Packing Machine Juice Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

This machine is suitable for the packaging of medicine, cosmetics, food, chemical products, such as olive oil/ ketchup/ honey/ oral liquid, essential oil/ eye cream/ fertilizer and pesticide, etc.

Packaging sample:3333.jpg

1. The parts of the machine in contact with materials are all made of stainless steel, and the whole machine is fully enclosed during operation.

2. Adopt high-precision film walking system, PLC program control, advanced touch man-machine interface, photoelectric automatic positioning and tracking.

3. Simple operation and perfect structure can greatly improve production efficiency and reduce labor costs. Packaging materials: polyester/polyethylene, polyester/aluminized/polyethylene, polyester/aluminum foil/polyethylene, paper/polyethylene, nylon and other heat-sealing composite materials.

ModelLD-DL-525
Capactity(bag/min)
350-500
Range of measurement(ml)
2-22g
Bag size(mm)
(L)20-450mm ;(W)50-220 mm
Power(W)
5500W
Source voltage
220V/50-60Hz 380V/50Hz
Packing weight(kg)
700KG
Overall dimensions
L1300*W1550*H2450mm

After receiving your inquiry,We will send you the quotation as soon as possible.
