Application:
Automatic multi-lane stick pack liquid packaging and boxing line is suitable for kinds of liquid products, such as fruit juice, shampoo, shower gel, honey, milk, mouthwash, sauce, jam, jelly, etc.
Packaging Line Composition:

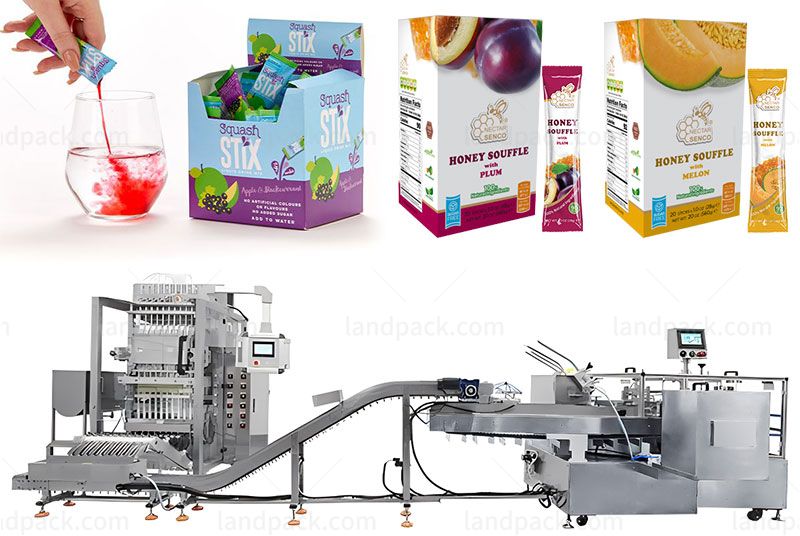

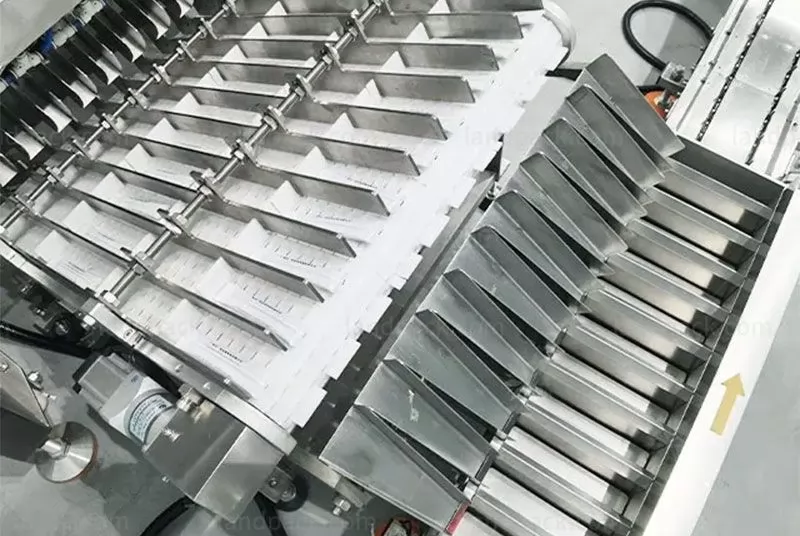

This packaging and boxing line system consists of LD-560BY Multi-lane stick pack liquid packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Automated Multifunctionality: This machine seamlessly performs tasks such as measuring, bag making, sealing, cutting, counting, and finishing product conveyors.
2. Hidden Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.
3. Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel, meeting the requirements for pharmaceutical and food production.
4. Easy Mobility with Casters: The equipment is equipped with casters, making it easy to handle and move.
5. Automatic Alarm System: The machine features an automatic alarm system, enhancing safety and preventing material wastage.
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD560BY |
Lane number | 3-12 Lanes |

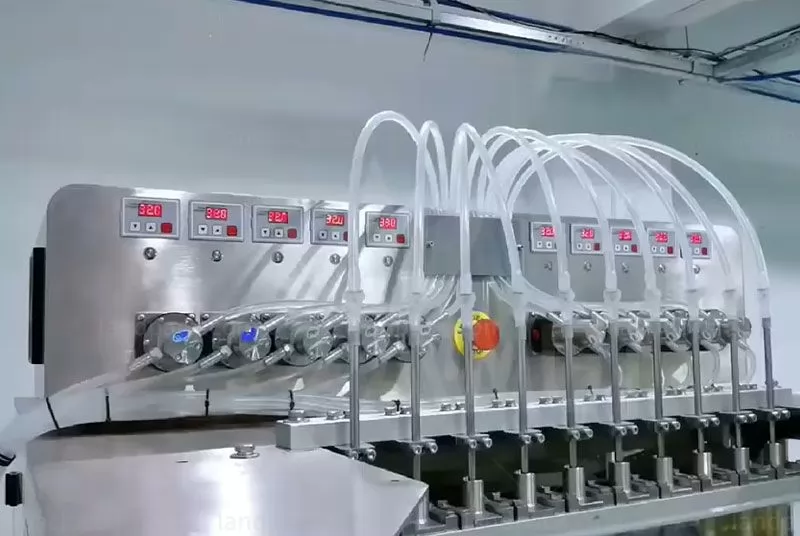

Filling Method | Piston pump; Peristaltic pump; Ceramic pump; Rotary pump |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min,3.5kw |
Dimension & weight | 1385*918*2005mm,350kg |

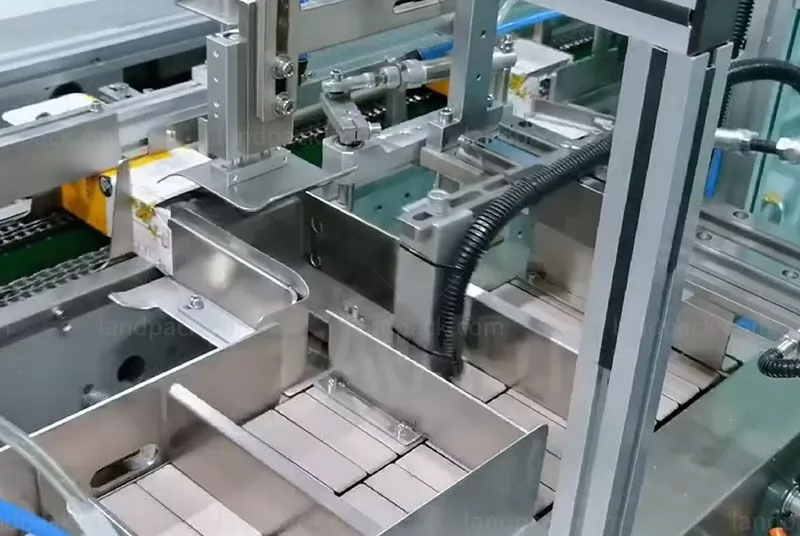

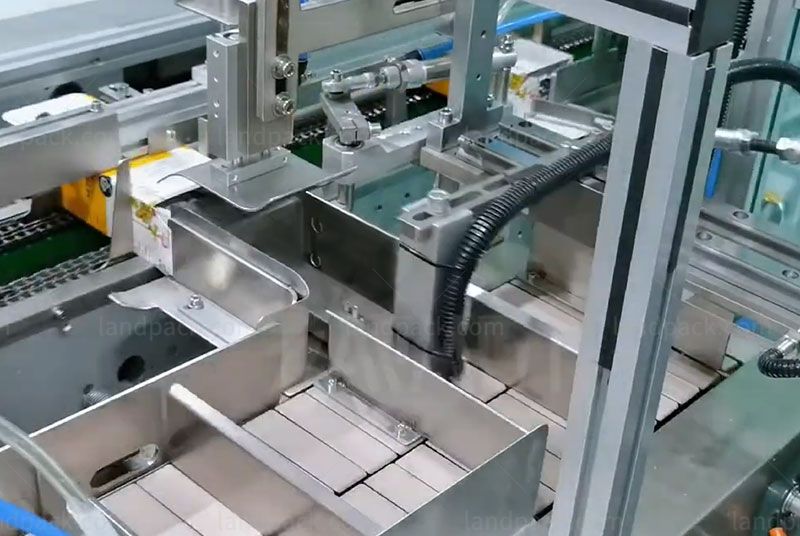

| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
