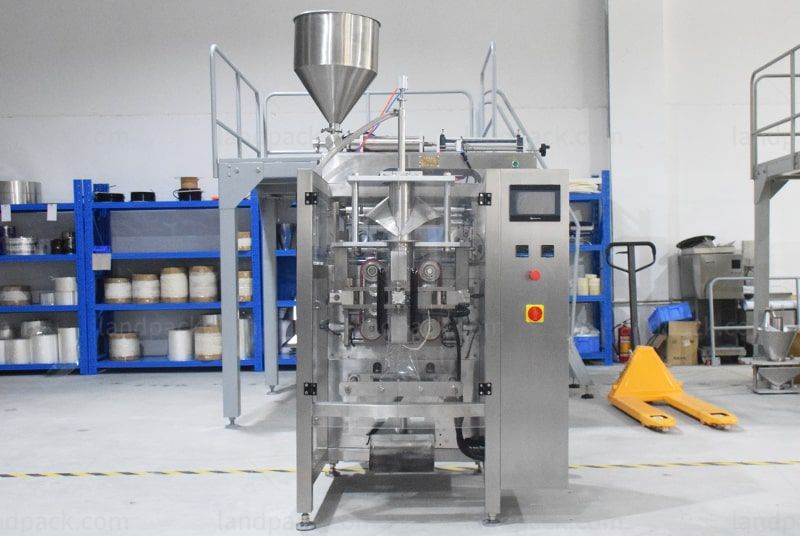

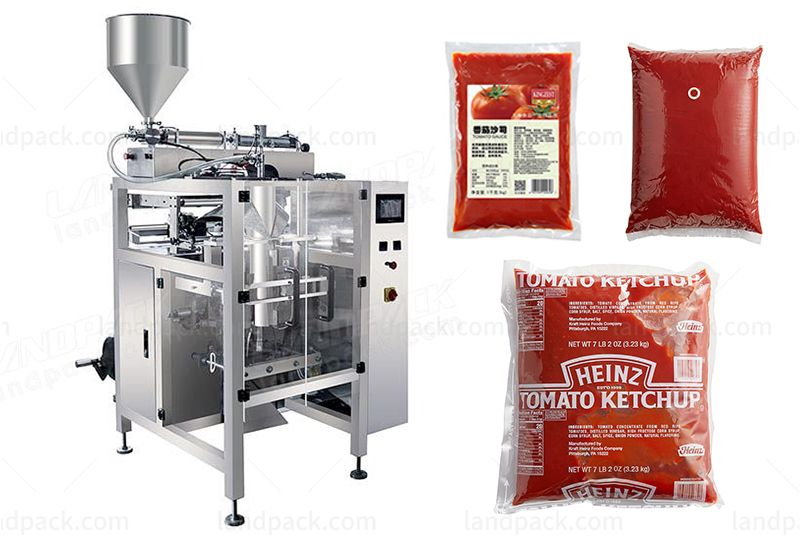

200ml-1800ml Vertical Liquid Sauce Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Its widely used in packing filling of sweetened bean paste , filling of lotus meat,fruit jam,cheese,jam,sauce,salad,lotion,liquid ,semi liquid.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging sampels:应用图.jpg

1.Touch screen display in Chinese and English ,direct and easy to operate.

2.Advanced design for complete machine , reasonable structure ,convenient adjusting operation and maintenance

3.PLC computer-controlled system to make the operation more stable .all the parameter can be adjusted without stopping the machine .

4.The pouching ,sealing ,packing and data printing of products is done in one time .

5.Minimize the consumption with multiple kinds of auto warning protection function .

Type

LD-420A

Control style

PLC+ English interface

Packing speed

45-60 bags/min

Size of Bag

length 20-180mm  width15-120mm

The max. roll film width

420 mm

Thickness of film

0.04-0.09mm

Type of sealing

Pillow bag ,3-side sealing ,4-side sealing

Range of measuring

1-100ml

Power/voltage

220V/380V, 50 Hz/60Hz /1.2 KW

Dimension

1200(L)*1500(W)*1800(H) mm

Weight

650kg

After receiving your inquiry,We will send you the quotation as soon as possible.
