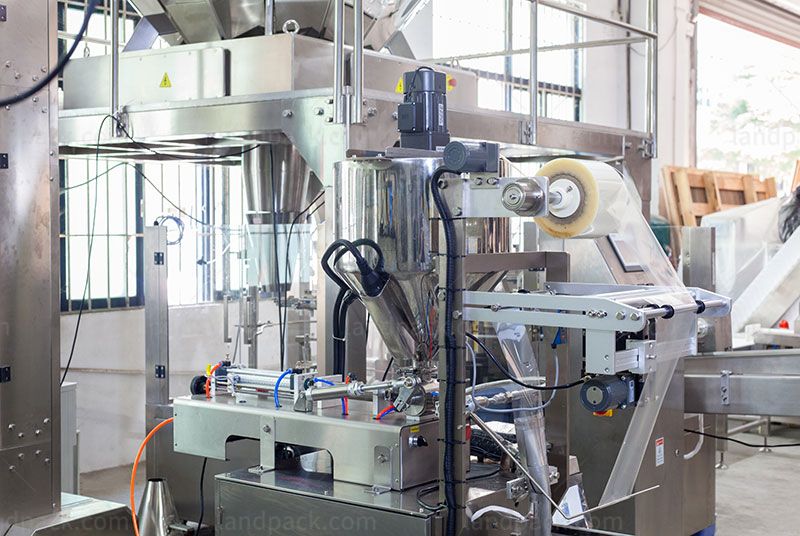

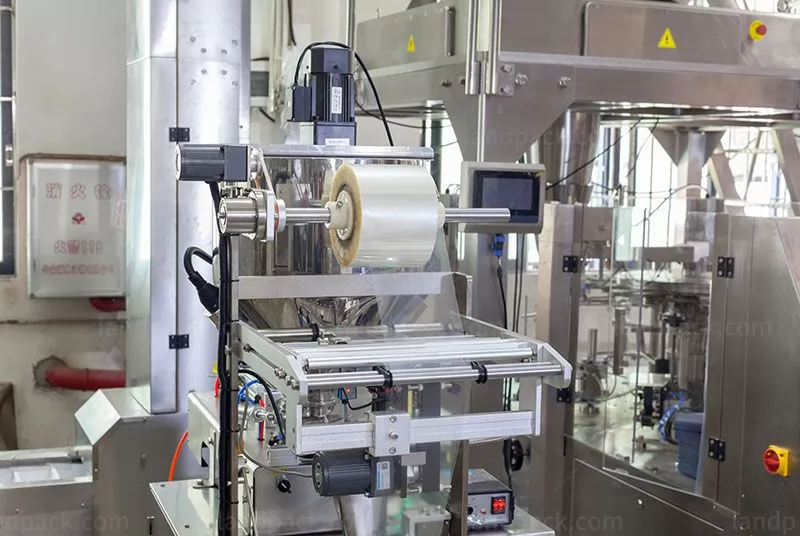

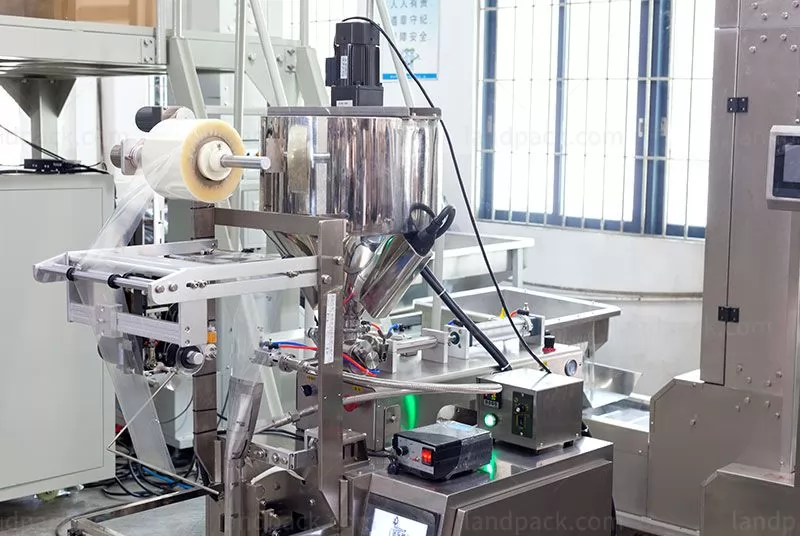

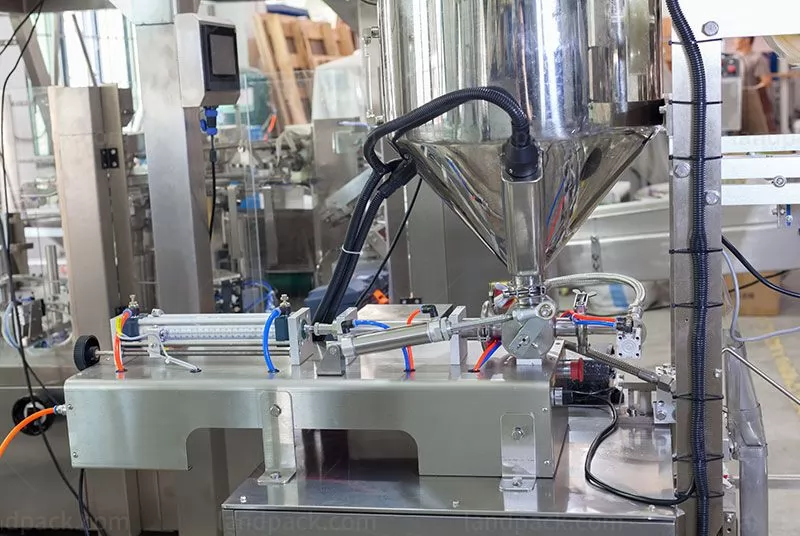

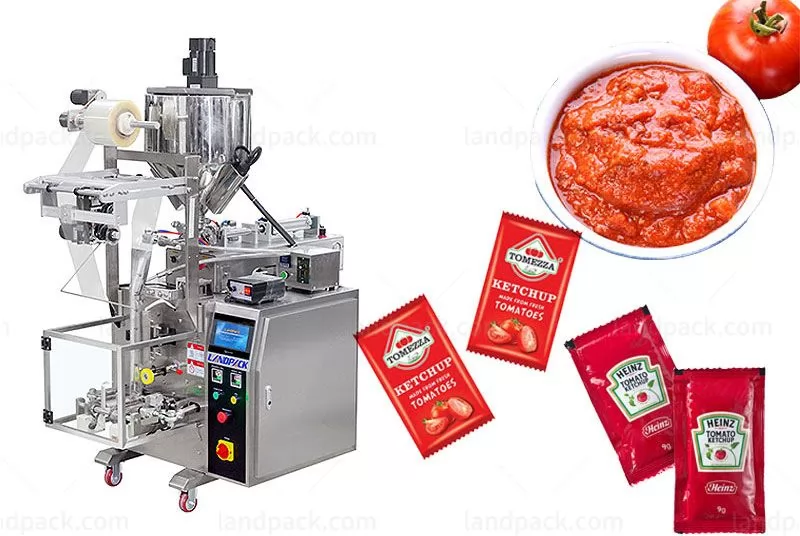

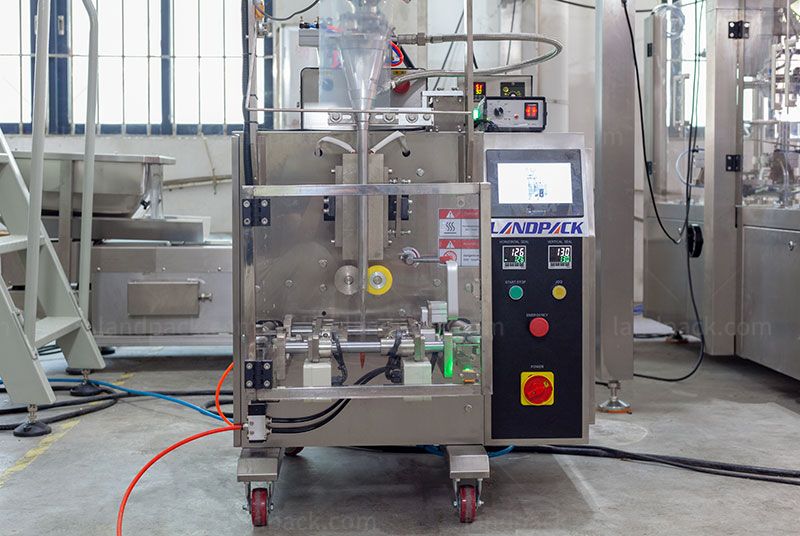

Multifunction Sauce/Ketchup Sided Seal Sachet Packing Machine

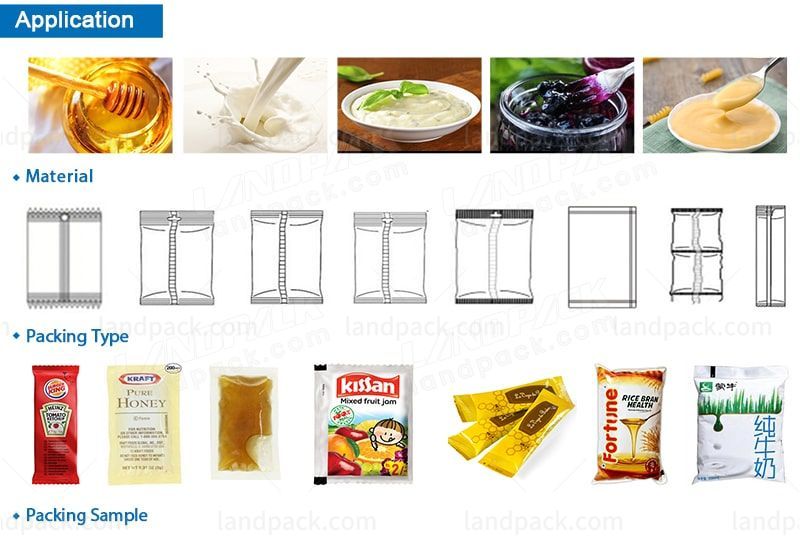

  • Application
  • Description
  • Parameter
  • Video

Suitable for 4-side sealing of conventional liquids such as sauces, ketchup, chili sauce, tomato sauce, shampoo, laundry detergent, honey, vitamin water, juice drinks, oil, milk, water, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    50-500ml Sachet Liquid Packaging Machine LD-320L/ LD-380L

Computer PLC control and automatic alarming function.

Multilingual screen display, easy operation.

High sensitivity photoelectric eye color tracing,more accuracy.

Bag type can be customised to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.

Famous brand components, ensure the quality and durability of machine.

Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

Ribbon code printer, link-bag device is option.

Multipurpose packaging, suitable for various packaging of different product.

Film width120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film rollMax.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)
Machine weightAbout 300kgAbout 450kg

After receiving your inquiry,We will send you the quotation as soon as possible.
