Application:
Suitable for packing all kinds of liquid, fluid and paste material, such as Mouthwash, hand sanitizer, body wash, face cream, juice, edible oil, sauce, daily necessities, medicine, mobility liquid, detergent, automobile oil, glass water,shower gel, shampoo, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

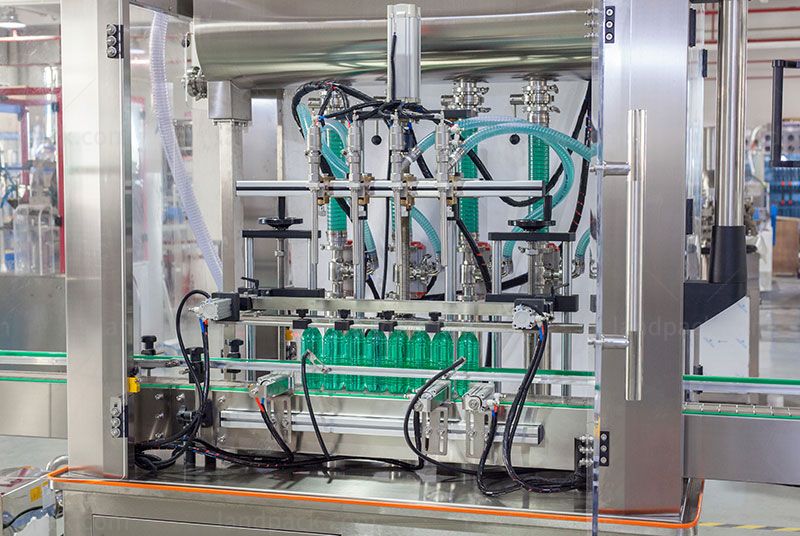

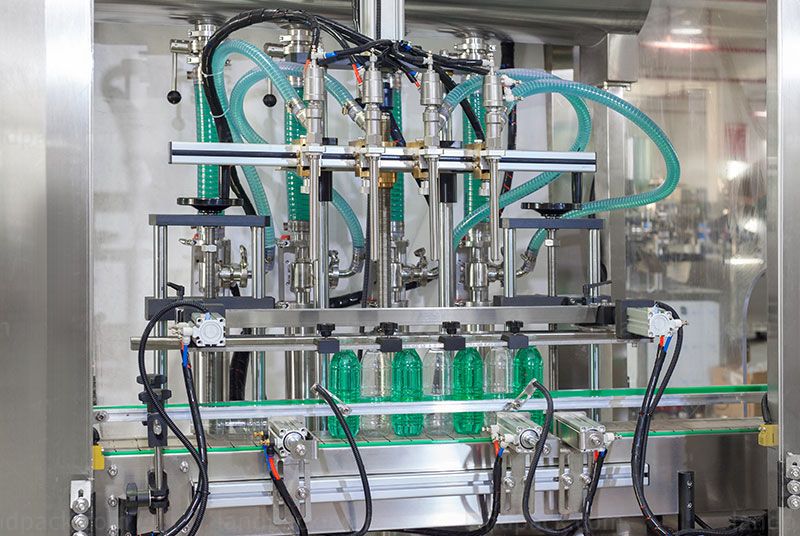

1. Servo Motor driven piston pump filling, Servo Motor driven piston and main cylinder for filling nozzle up and down.
2. Machine construction in Stainless steel #304, contact parts are made in SS #316.3. Different material of O rings for different application.
3. PLC combined with touch screen control system.
4. Bottom diving filling type avoids foam during filling.
5. No change parts are required for different bottle sizes.
6. No bottle, no filling safety device.

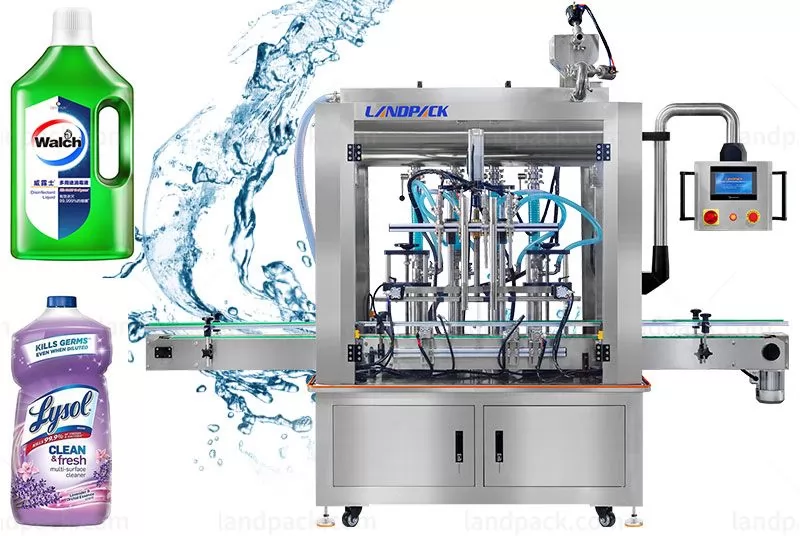

Product Name | Automatic 4 Heads Liquid Piston Pump Filling Machine |
Model | LFZ-04 |
Filling Range | 50-1000ml(Customizable) |
Filling Speed | 15-25 bottle/min |
Measurement accuracy | ±1% |
Power | 2 KW |
Working power supply | 220V、50Hz |
Working pressure | 0.6-0.8MPa |
Weight | 650kg |
Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
