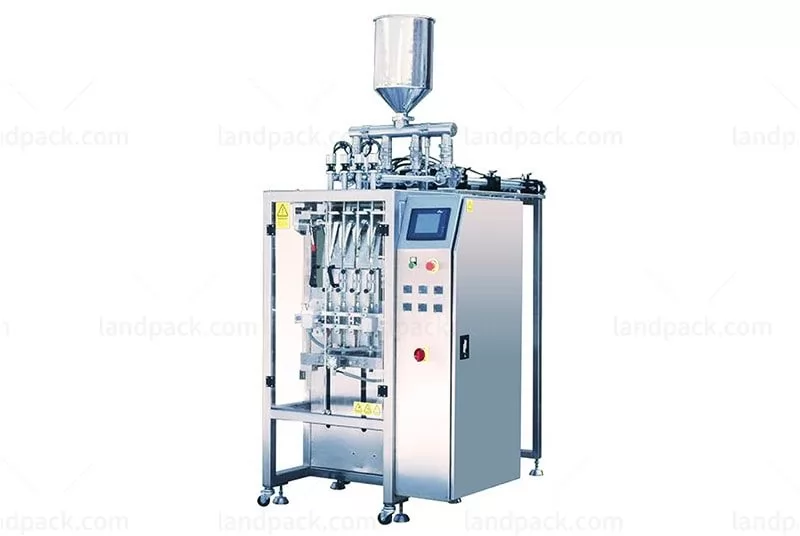

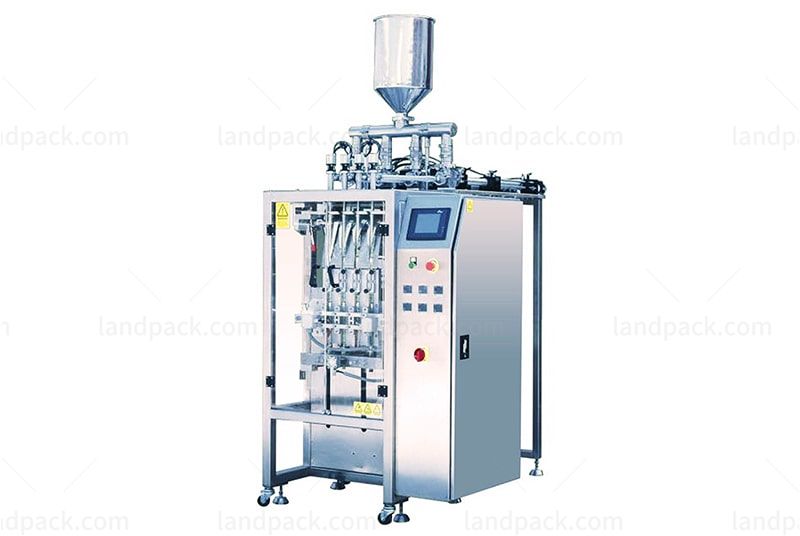

Multi Lane Liquid Stick Filling Packing Machine

  • Application
  • Description
  • Parameter
  • Video


Suitable for many kinds of liquid products, such as ketchup, honey,sauce,oil,paste,ice candy, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi Lane Liquid Stick Filling Packing Machine Multi Lane Liquid Stick Filling Packing Machine Multi Lane Liquid Stick Filling Packing Machine

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

Lane Number4 lanes6 lanes8 lanes10 lanes12 lanes
Bag Width12-90mm12-60mm12-45mm16-35mm12-26mm
Bag Length40-165mm
Packing Speed30-50 Bags/Min/Lane
Control SystemPLC + Servo +  Touch Screen
Cutting Type1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting,  4.Customized Special Shap Cutting
Optional deviceDate Coder, Air-filling Device, Tear Notch Device

After receiving your inquiry,We will send you the quotation as soon as possible.
