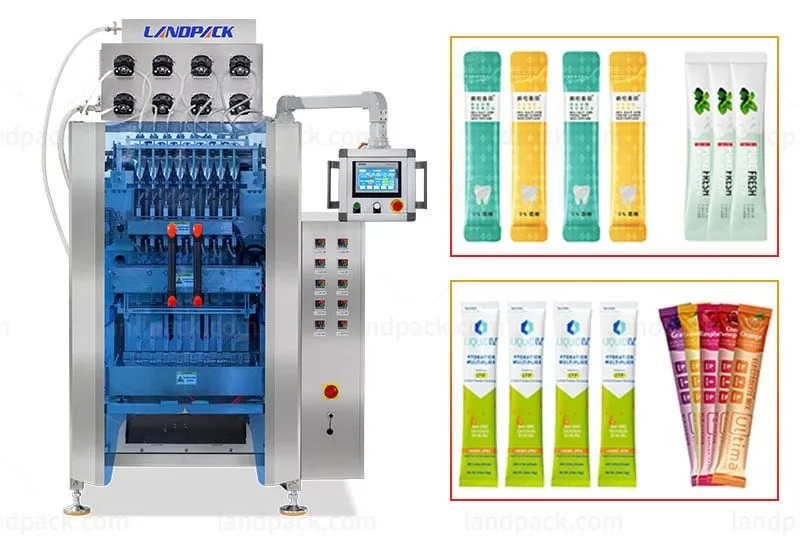

High Speed Liquid Multi Lanes Stick Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

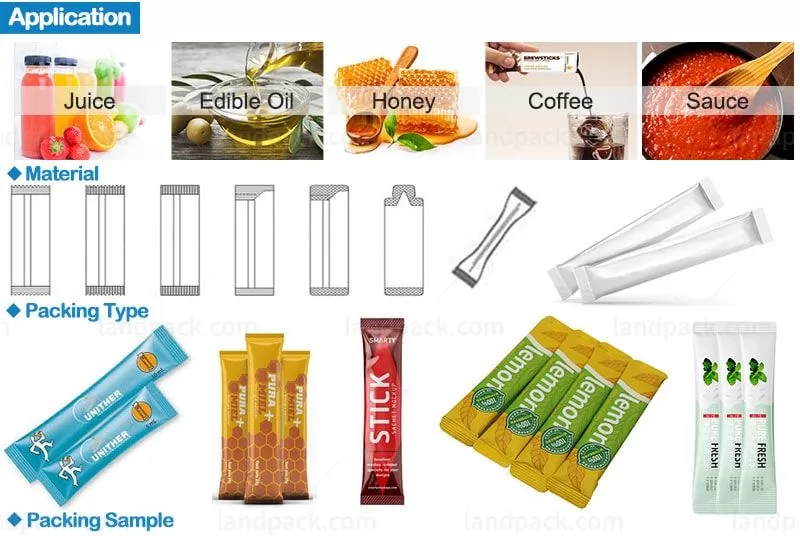

Widely applied for food,Medicine,chemical liquid products such as Mouthwash, Ketchup, flavoring, popsicle, Sauce ,Pasty, Shampoo, salad dressing, cream, body wash liquid and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Application2.jpg

PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

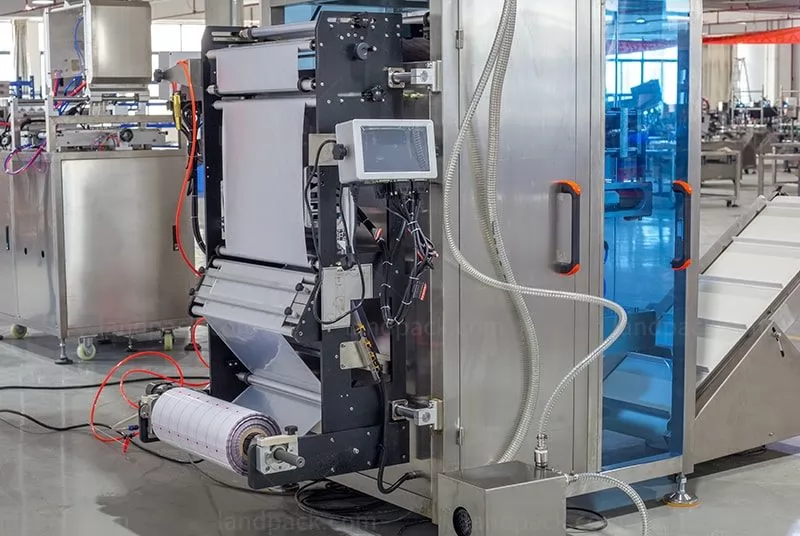

External film releasing mechanism: simpler and easier installation of packing film.

Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.

ModelLD-280LLD-560L
Track Number4~6 Track8~12 Track

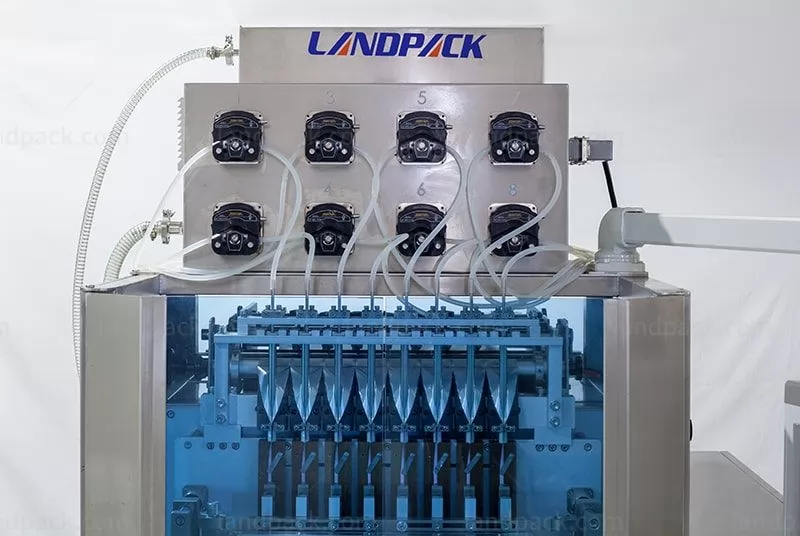

Filling Method1.Piston pump;   2.Peristaltic Pump;  3.Volumetric cup
CapacityMax.35 cycle/min
Sachet SizeL:50--180mm; W:17-30mmL:50--180mm; W:17--30mm
Film Width & ThicknessMax.280mm; 0.07-0.1mmMax.560mm; 0.07-0.1mm
Sealing Type Backsealing/ Stick bag

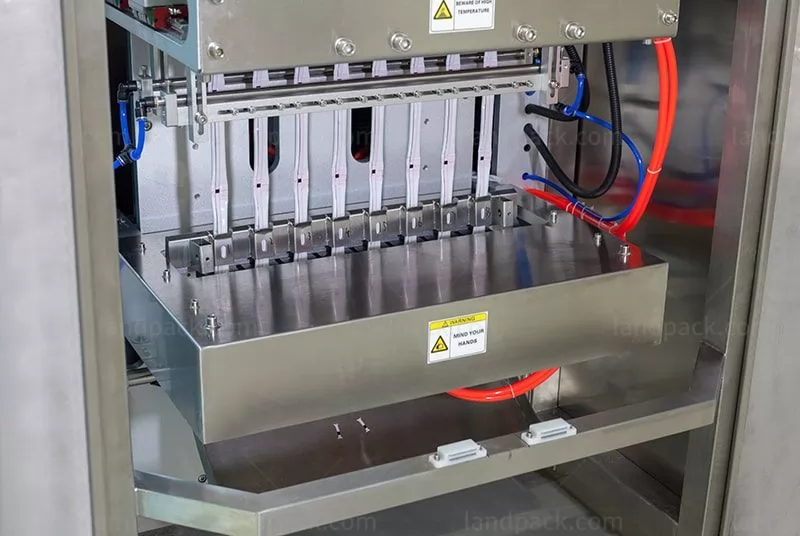

Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw

After receiving your inquiry,We will send you the quotation as soon as possible.
