Full Automatic N 95/ KN 95 Masк Production Line

  • Application
  • Description
  • Parameter
  • Video

Machine adopt Ultrasonic melting technique, single man operation, all controlled by PLC.

Automatic working from feeding lace sealing, cutting finished products.

Machine frame adopts aluminum.Anti-rust, durable, easy cleaning and neat.

Simple structure in linear type , easy in installation and maintenance.

Adopting advanced world famous brand components in pneumatic parts , electric parts and operation parts.

Machine add parts to insert nose strip if necessary.

Machine body use Aluminum frame, so it is more stable and clean.

This machine adopts PLC control system, which is easy to operate.

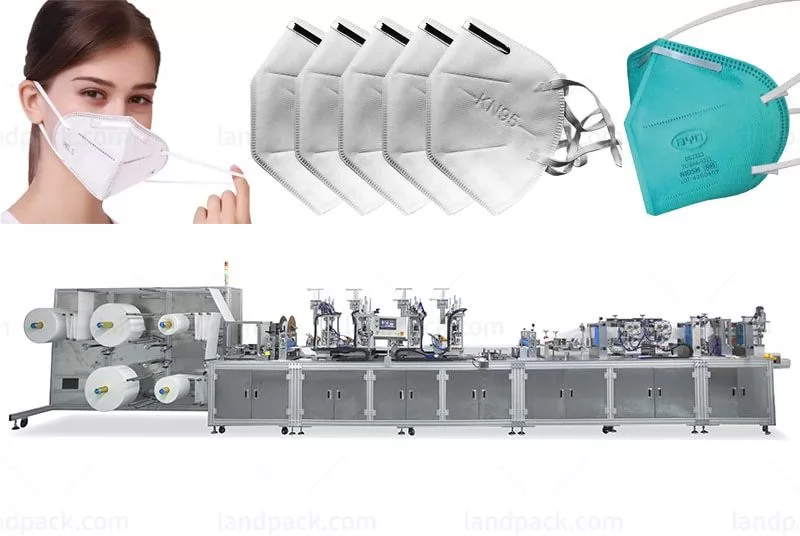

Full Automatic N 95/ KN 95 Masк Production Line

Mask Standard Description:

  1. N series is American standard

  2. KN series is Asian standard,

  3. The FFP series is a European standard, The higher the number, the higher the protection level.

  4. It is easier to understand with a formula: FFP3 > FFP2 = N95 = KN95> Nose Strip Welding Machine

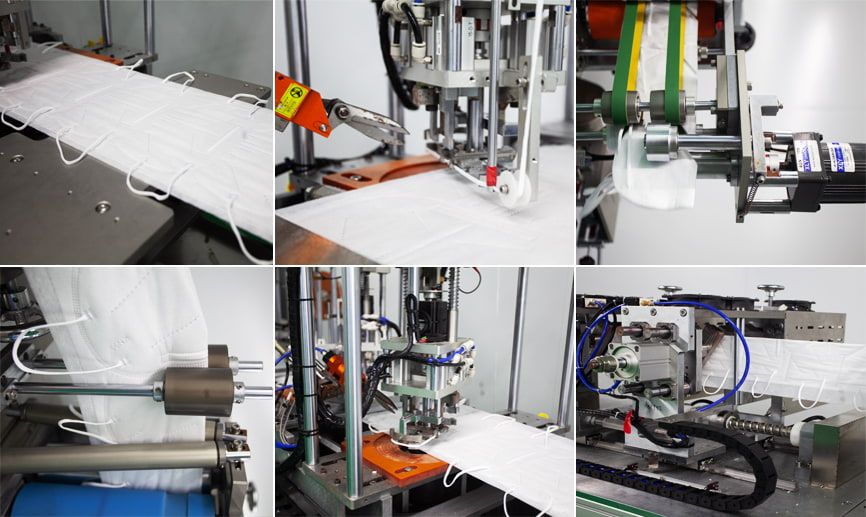

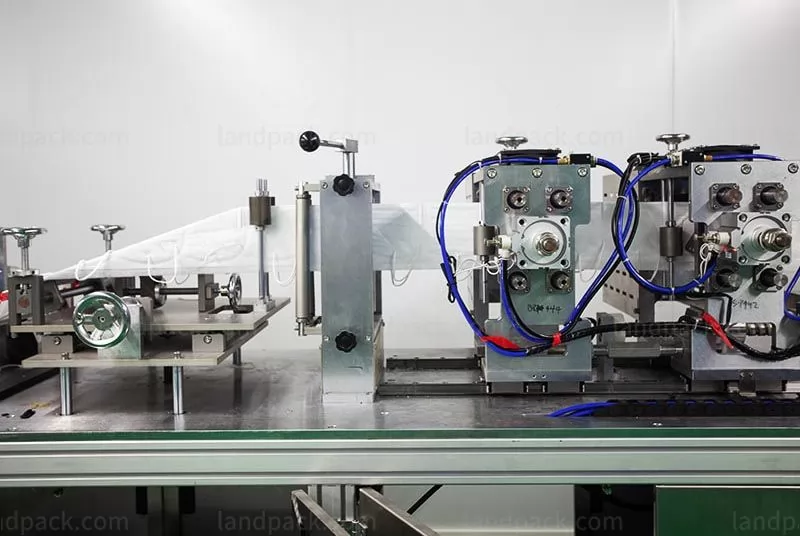

Machine details:

  1. Use high hardness of emboss roller.

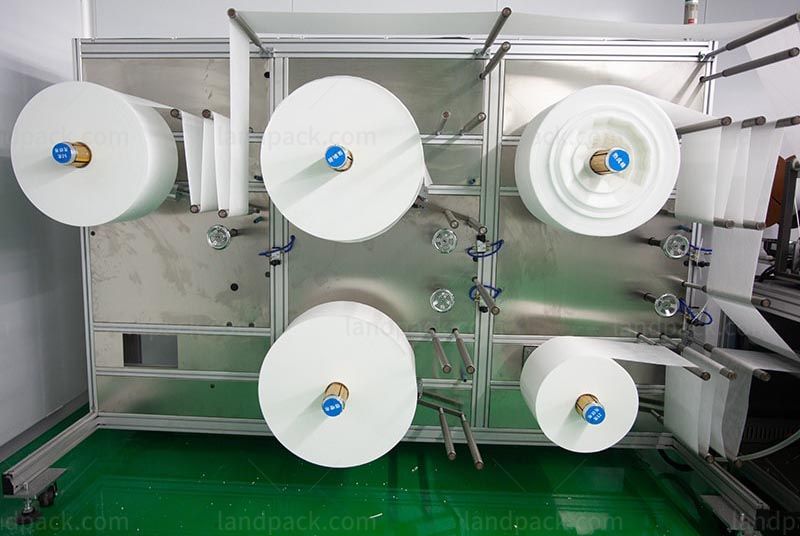

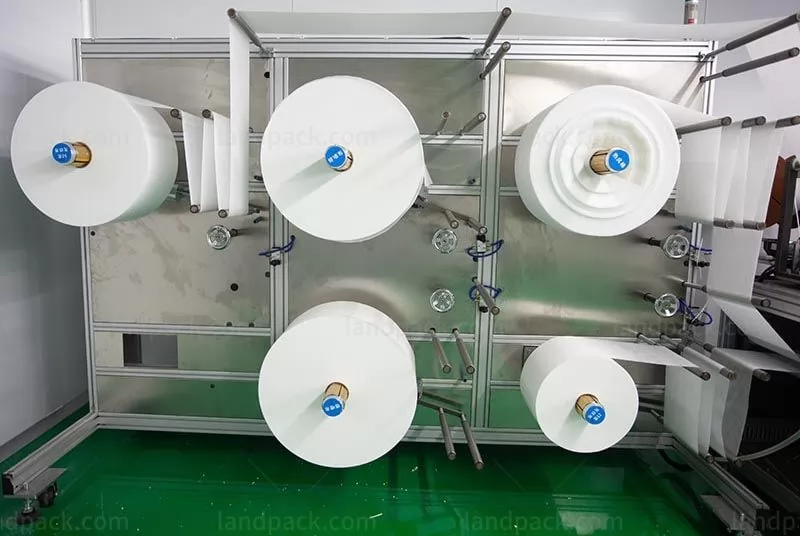

  2. Five feeding roller

  3. Auto waste collection

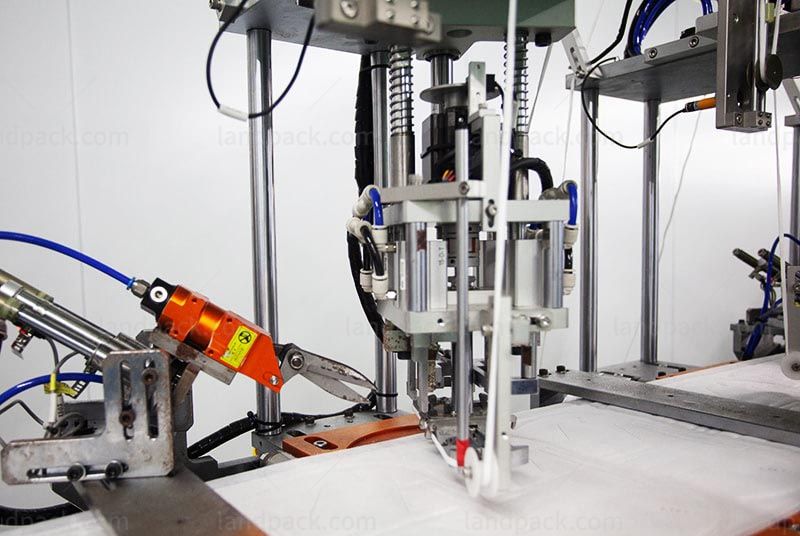

  4. Nose strip insert function

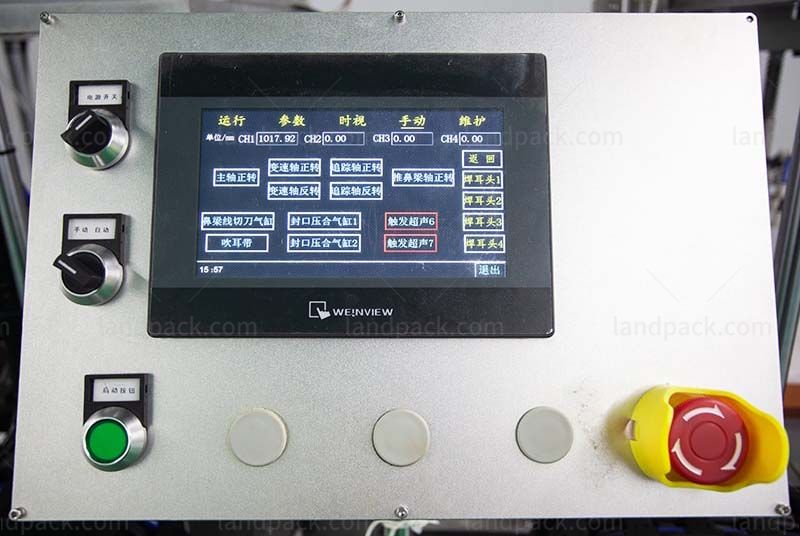

  5. PLC control system

 Brand: LANDPACK

 Production Capacity: 70 pc/min

 Power: 15 kw

 Machine Type: Automatic

 Model Name/Number: LD-ANDP1

 Size(L*B*H): 27x6x6

 Production line model: Automatic face masк machine

 Specification of the machine: 350(L)*110(W)*2100(H)cm

 Working power supply: 220V 50-60Hz

 The production efficiency: 60-70pcs/min

 Raw Material Width: 255-260mm

 Raw Material: PP non woven, melt blown, cotton

 Weight: 665kg

After receiving your inquiry,We will send you the quotation as soon as possible.
