Application:

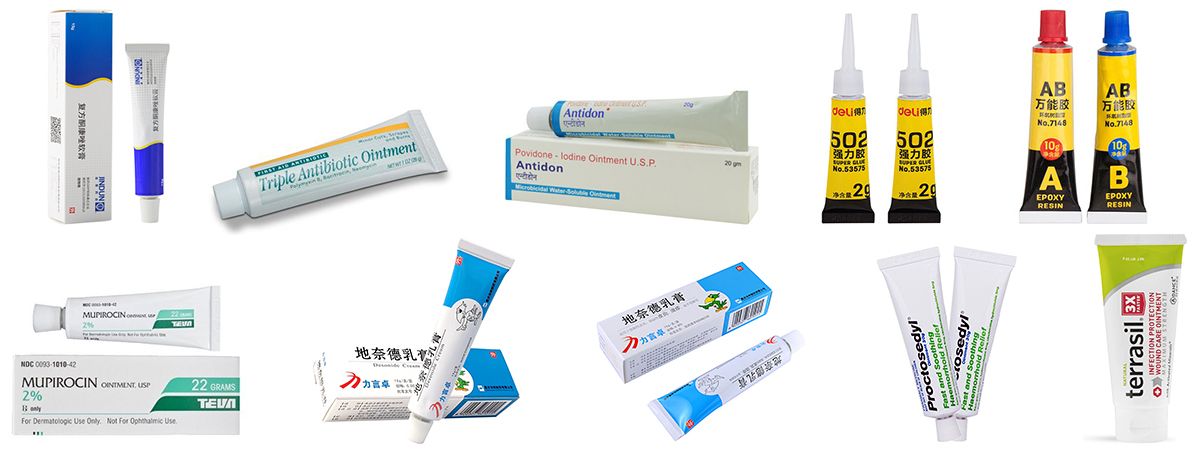

It can filling and sealing the batching for ointment material and widely used in packing products of pharmaceutical, food and chemical industry such as AB adhesive, epoxy glue, chloroprene and pigment etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

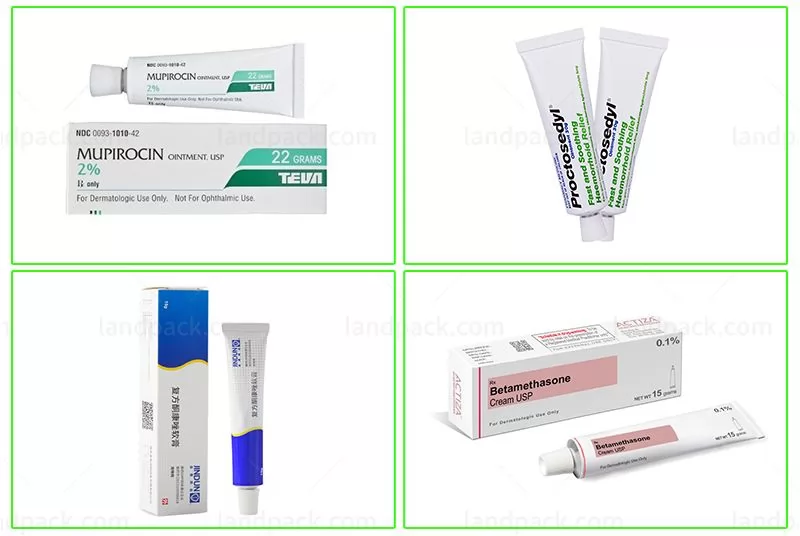

Packaging samples:
1. Low cost, clean pollution-free and does not damage the plastic tube.

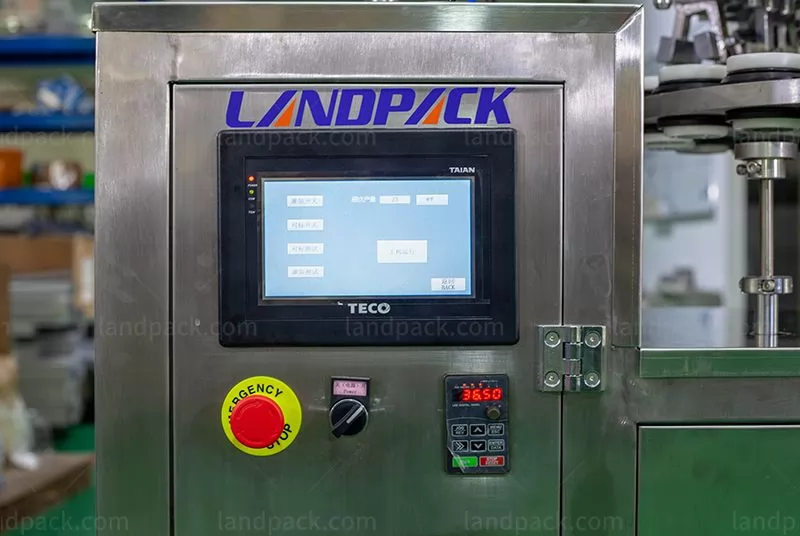

2. Adopting PLC controller, easy to operate, auto-protecting system can avoid the damage caused by improper operation.
3. Can adjust filling volume easily.

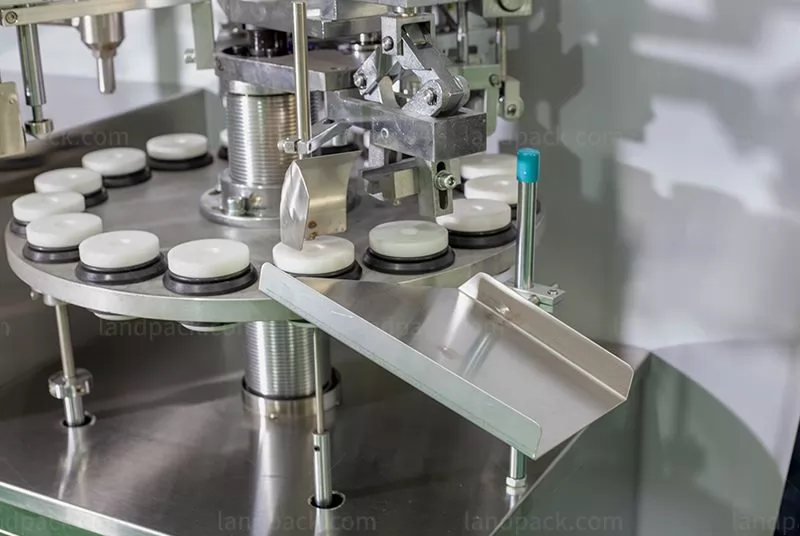

4. Auto unloading, can unload finished goods to conveyor.
5. Stepper motor is used for orientation, the speed can be adjusted to improve the accuracy.

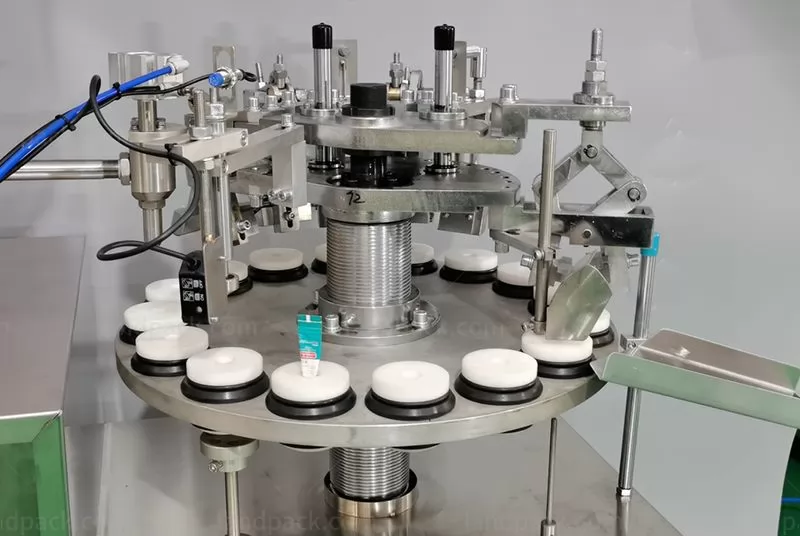

6. Auto tube feeding ,Filling, Orientate, Sealing, Print code, Cutting.
| Model | LD-FW-2203 |
| Production capacity | 30~120pc/min |
| Metering range: | A:5~45mm length:50~190mm |
| Power of electrical motor | 1.5KW |
| Air pressure | 0.2~0.4Mpa |
| Basket | 304 stainless steel plate, thickness 2 mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
