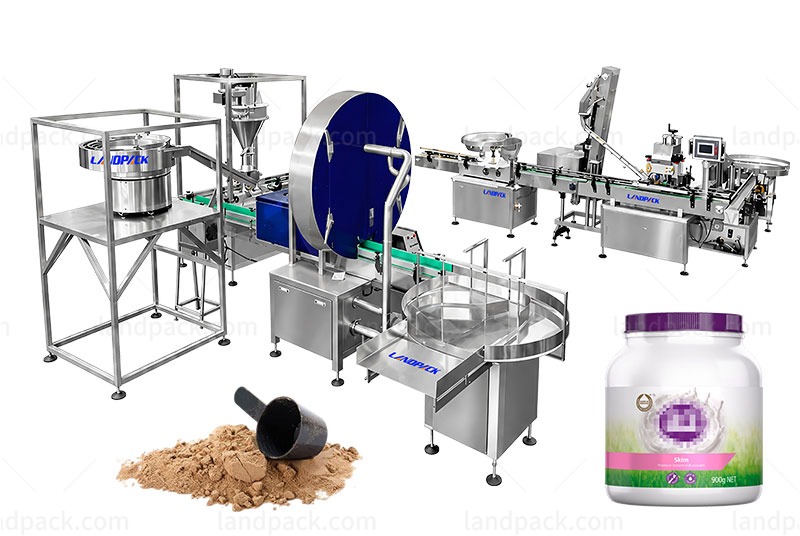

Automatic Double-Head Milk Powder Bottle Filling Capping Labeling Line with UV Sterilization & Spoon Insertion

Application:
This powder filling line packs milk powder, protein powder, nutrition powder, coffee powder, meal-replacement powder, seasoning powder, and similar dry products into bottles or jars. It arranges empty bottles, cleans the interior with filtered air and UV light, inserts measuring scoops, fills the powder through two heads, closes the caps, and applies labels. The automatic powder filling and capping machine reaches up to 3,000 bottles/hour, depending on the bottle size, filling weight, and powder flow.

Package Type:
The line handles round PET, HDPE, and rigid plastic bottles or jars. It supports measuring scoops, inner plugs, press-on caps, screw caps, and self-adhesive wraparound labels. Change parts match different container diameters, heights, neck sizes, scoop lengths, cap formats, and label dimensions.

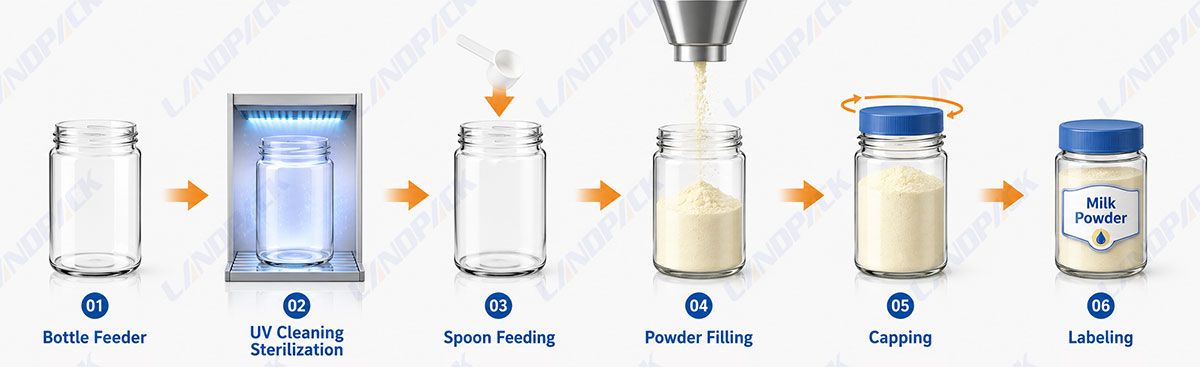

Workflow:
1. Bottle Unscrambling, 2. Air Cleaning, 3. UV Treatment, 4. Scoop Feeding, 5. Double-Head Powder Filling, 6. Weight Checking, 7. Cap Feeding and Capping, 8. Round-Bottle Labeling, 9. Finished Bottle Output

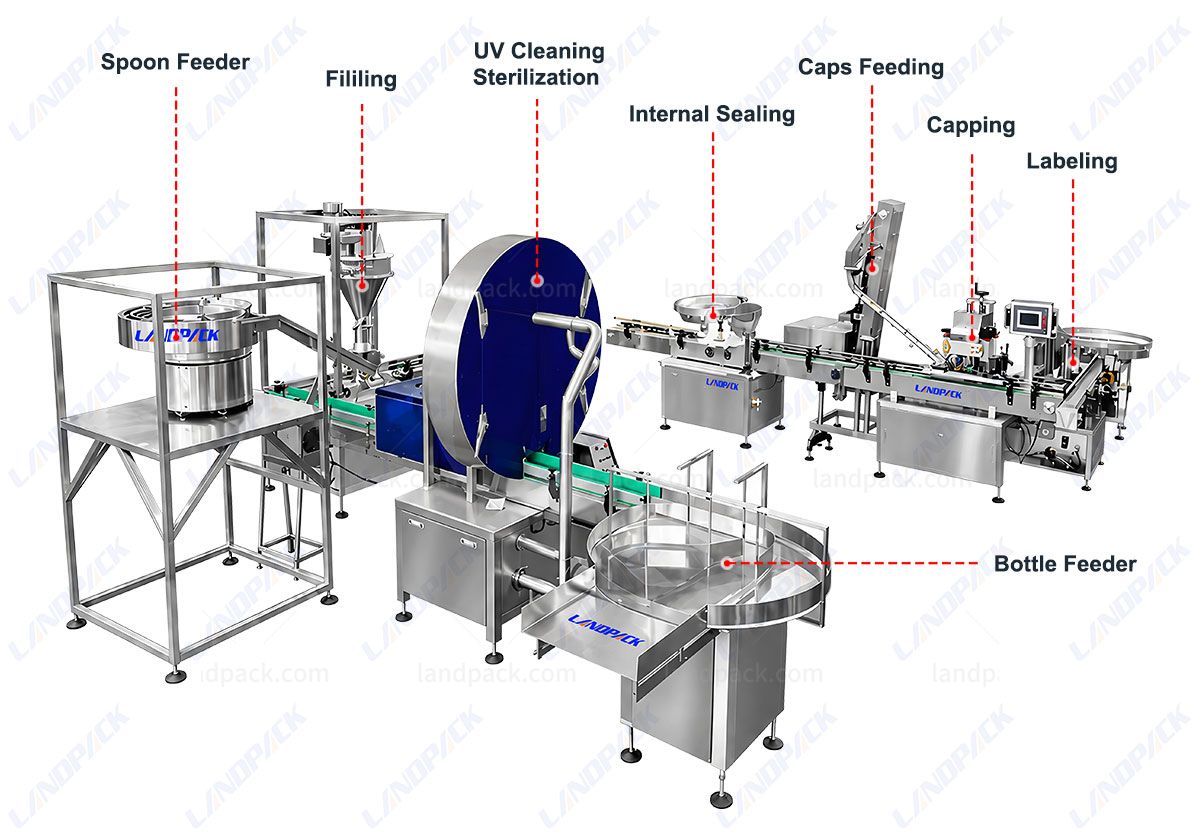

Machine Structures:

Features:

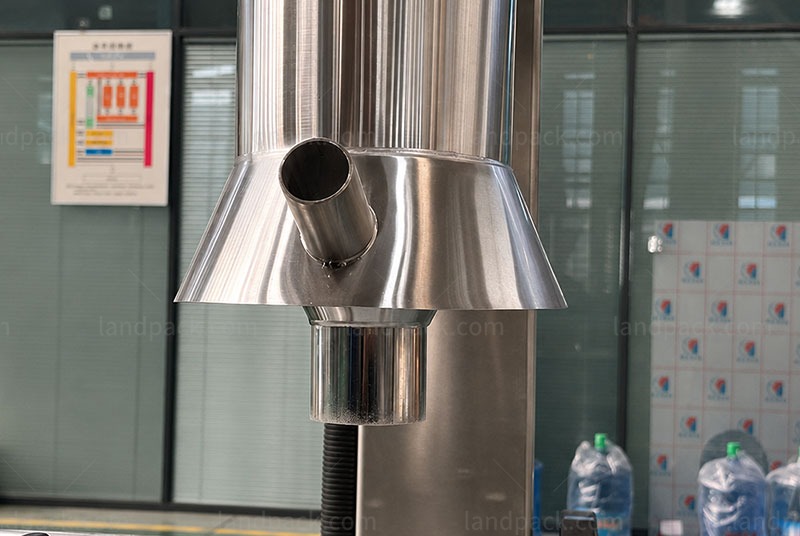

1. Double filling heads support output up to 3,000 bottles per hour
2. Bottle unscrambler adjusts its rotating speed for different container sizes
3. Filtered-air cleaning unit removes loose particles from bottle interiors
4. Shielded UV section allows independent lamp control
5. Safety interlocks limit operator exposure to ultraviolet light
6. Vibration bowl orients measuring scoops before automatic insertion
7. Touchscreen controls filling weight, filling speed, and production settings

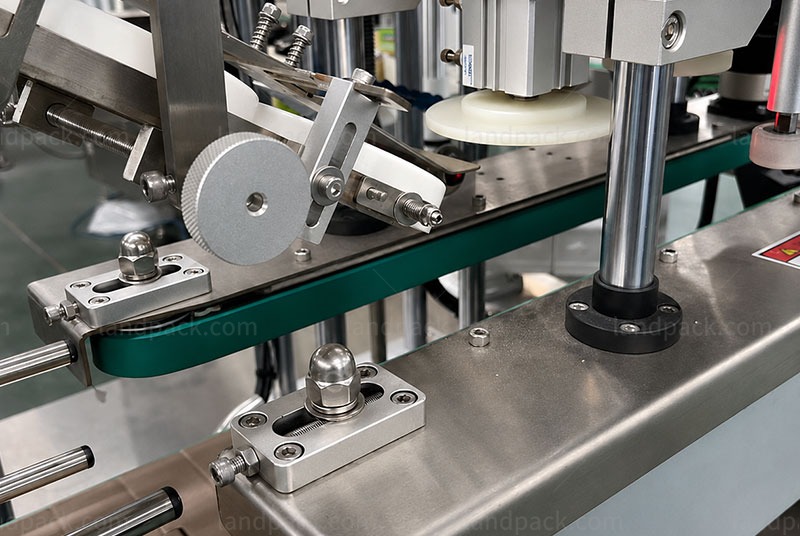

8. Bottle-positioning guides align each container below the filling head
9. Photoelectric sensors start filling and capping only when bottles reach the correct position
10. Inline checkweigher can reject underweight and overweight bottles
11. Cap feeding parts can match different inner plugs and outer cap formats

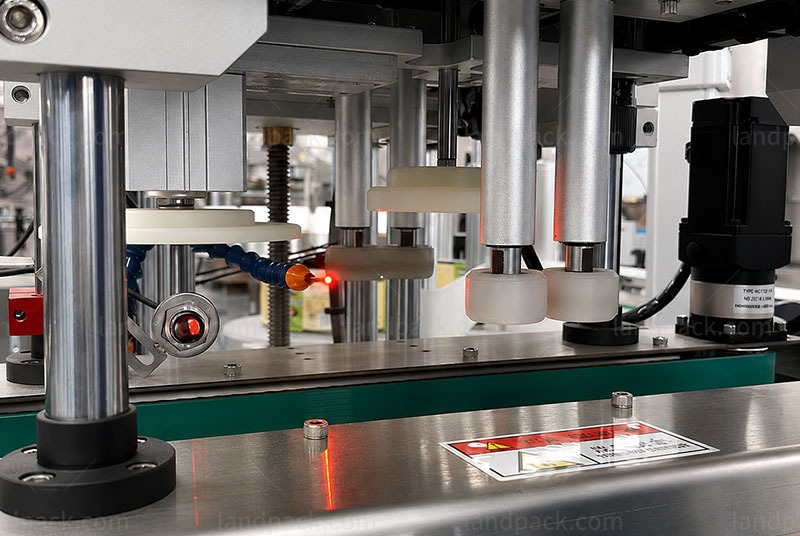

12. Adjustable capper handles different bottle heights and cap diameters
13. Round-bottle labeler adjusts for different container and label sizes
14. The bottle filling capping and labeling machine can connect with induction sealing, coding, bottle collection, and case-packing equipment
