Application:

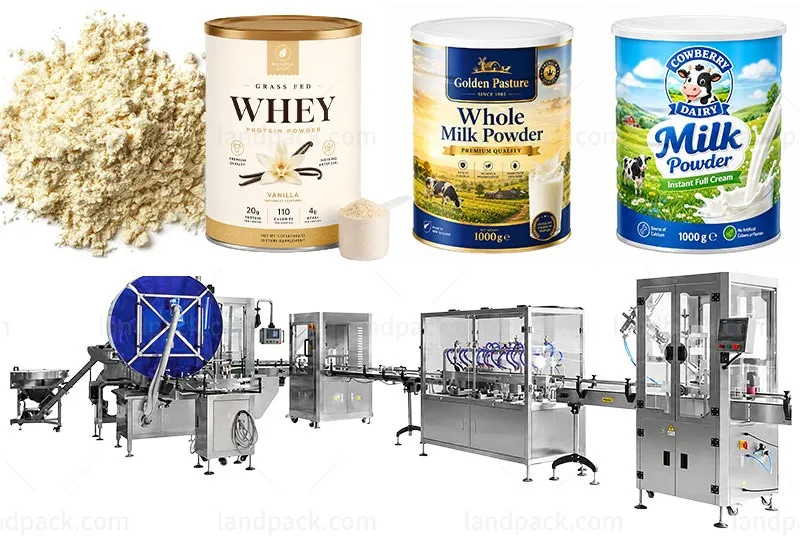

This milk powder filling machine packs milk powder, infant formula powder, protein powder, nutrition powder, coffee powder, and other dry powder products into metal cans. The line sorts empty cans, cleans them with filtered air and UV light, inserts measuring scoops, fills each dose, removes air, adds nitrogen, seams the can, cleans the exterior, and presses the plastic lid. It runs at up to 30 cans/min, depending on the can size and filling weight.
Packaging Type:
The line handles round metal cans and tins fitted with seamed metal ends and plastic overcaps. It also supports measuring scoops placed inside the can before filling. Change parts match different can diameters, heights, filling volumes, lid sizes, and scoop formats.
Workflow:
1. Cans Sorting, 2. UV Treatment and Air Cleaning, 3. Automatic Scoop Feeding, 4. Powder Filling, 5. Online Weight Checking, 6. Vacuum and Nitrogen Flushing, 7. Cans Seaming, 8. Brush Cleaning, 9. Cans Turning, 10. Plastic Lid Pressing, 11. Finished Can Output

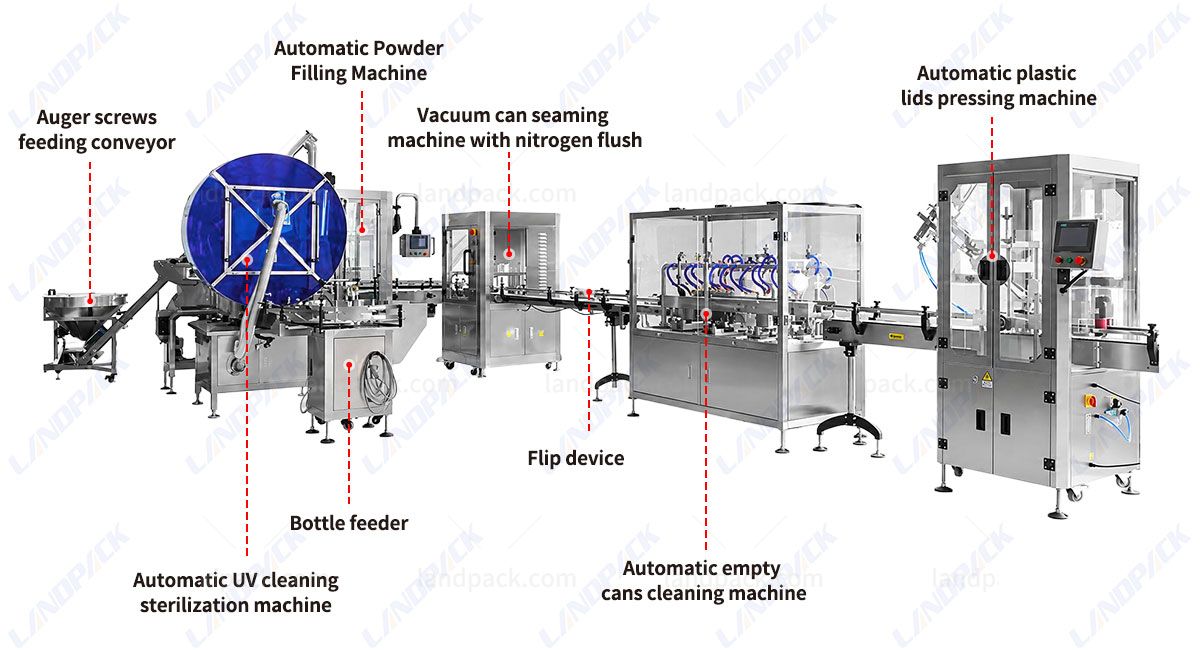

Machine Structures:
Features:
1. Rotary can unscrambler feeds containers continuously onto the conveyor
2. Frequency control adjusts the can-feeding speed
3. Filtered-air unit removes loose dust from empty cans

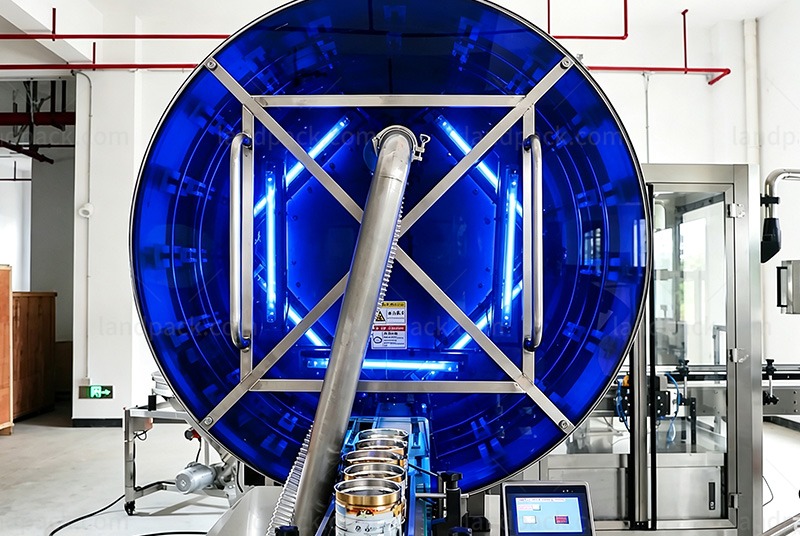

4. Shielded UV section allows independent lamp control

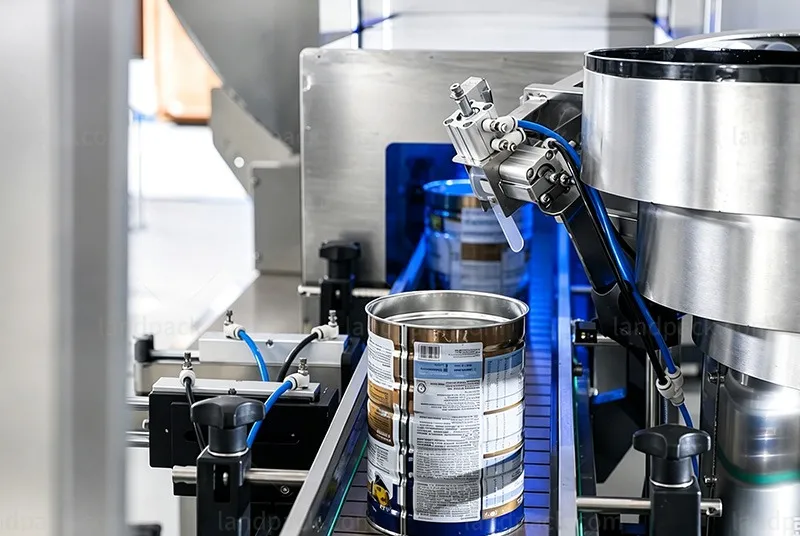

5. Automatic scoop feeder positions measuring spoons before powder filling

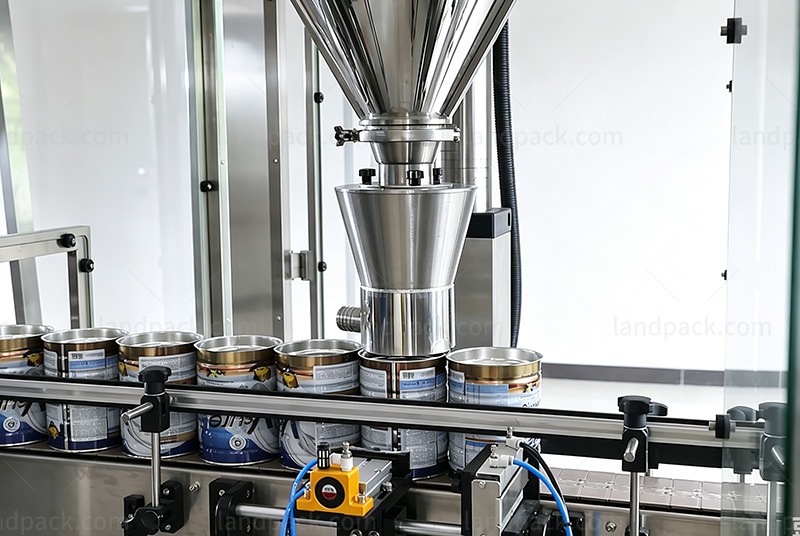

6. Servo auger controls the filling dose for different powder weights
7. Online weighing system targets a final filling deviation within 2 g under specified operating conditions
8. Vacuum and nitrogen seaming section completes air removal, gas flushing, lid placement, and seaming
9. The seaming process can target residual oxygen below 2% after setup and validation
10. Brush unit clears powder from the outside of each can
11. Turning device changes the can orientation before overcap pressing
12. Plastic lid press handles different overcap diameters with matching change parts
UV Cleaning Blowing Machine | |
Item | Specifications |
Voltage | 220V/50Hz (customized) |
Power | 2500W |
Air pressure | 0.3-0.5mpa |
Speed | 10-50 BPM |
Bottle diameter | 76-140mm |
Bottle high | 80-200mm |
UV light | 7 |
Outline dimension | 2400*1300*2200MM |
Net weight | 350KG |
Spoons vibration feeder | |
Voltage | 220V/50Hz (customized) |
Power | 300W |
Speed | 10-40 BPM |
Vibration top diameter | 60-80cm |
Spoon size | customized |
Outline dimension | 1000*800*1200MM |
Net weight | 150KG |
Auger Filler (powder dosing) | |
Max Weight | 10~1000g/time |
Container size | Φ 80-210mm H100-330mm(customized) |
Filling weight | 900g-2500g(customized) |
Filling accuracy | 500g,≤±1% |
Filling speed | 10~30bottles/min(depend on the material and weight) |
Auger Filler hopper | 50L |
Power supply | Three phase380V or single phase |
Total power | 3.5 KW |
Total weight | 420kg |
Dimension | 2000*900*1850mm |
Automatic Can Seamer Machine | |
Bottle type | round, square bottles, etc need to be customized. |
Can body max diameter | 153mm(can be customized) |
Bottle height | 50-150mm(can be customized) |
Speed | 5-8BPM(it depends on product) |
Seaming Type | Nitrogen consumption and vacuum seaming |
Caps feeding type | Automatic lids feeding |
Machine voltage | 220V(can be customized) |
Machine size | 2000*1000*1700mm |
Machine weight | 550kg |
Laser Printer | |
power | 20~200W (can be option) |
Laser | 1064mm |
repeat frequency | 20~200KHZ |
basement membrane Gaussian beam | ＜1.2 |
Printing range | 100*100mm |
Engraving | ＜0.4mm |
Speed | Max 10000mm/s |
Minimum Line Width | 0.01mm |
Minimum character | 0.15mm |
Accuracy | ±0.02 |
Power supply | 220V/50Hz, 500W |
Positioning way | Infrared focusing |
Machine size | 825*545*1425mm |
Machine Weight | 60kg |
Operating system | Embedded touch marking system or external 10.1 inch |
Cooling method | Built-in air cooling |
Control interface | Standard USB |
File format | All fonts/glyphs of WINDOWS operating system fonts |
Laser type | Air-cooled fiber laser; Service life of up to 100,000 hours |
Automatic Cans cleaning machine | |
Speed | 20-40bpm |
Bottle diameter | 80-210mm (or custom-made) |
Power | 2KW 380V |
Weight | 350KG |
Machine size | 1700*800*1800mm |
Automatic lids pressing machine | |
Material | 304 stainless steel |
Cover size | Cover diameter: 40-130mm (can be custom-made) |
cover height | 5-15mm |
Bottle diameter | 50-220mm |
Speed | 10-50 bottles/minute |
Conveyor belt size | (L)1900mm*(H)900*(W)114mm |
Machine size | (L)1900mm*(H)1700*(W)800mm |
Weight | 250KG |
Power | 220V, 50HZ, 0.68KW |
Air pressure | 0.5-0.7MPa, require 750W air compressor |
