Application:
It is ideal for accurately filling and packaging a wide range of powdered products, such as milk powder, protein powder, coffee powder, medicine powder, chemical powder, meal replacement powder, and more. This machine ensures high precision, consistent output, and efficient operation across food, pharmaceutical, and chemical industries.
Packaging Type: Cans, Tins, Barrels, Bottles, etc
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

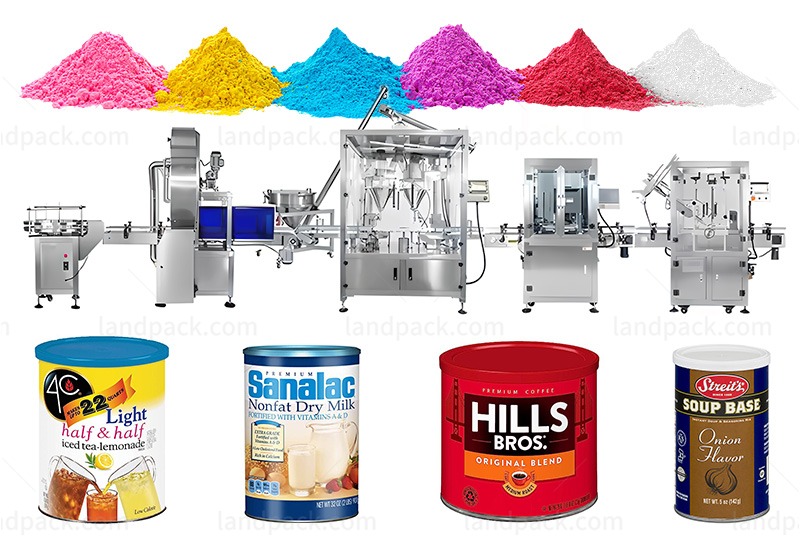

1. Combines powder dosing, dual-stage UV sterilization, nitrogen flushing, and can seaming in a single streamlined system to maximize productivity and product quality.
2. Servo-driven auger delivers ±1% accuracy, reducing material waste and costly overfill.
3. Two-stage UV sterilization ensures cans and lids are fully sanitized prior to filling, improving hygiene and extending shelf life.
4. Premium-grade seaming heads ensure tight, clean seams without damaging the seal edge, preventing leaks and preserving integrity.
5. Equipped with a PLC system and touchscreen interface for intuitive operation, real-time monitoring, and easy parameter adjustment.
6. All contact parts are made from SUS304 or SUS316 stainless steel and meet CE and dairy-grade sanitation standards.
7. Compatible with various can sizes and powder types—ideal for milk powder, protein powder, baby formula, and nutritional supplements.
Optional:

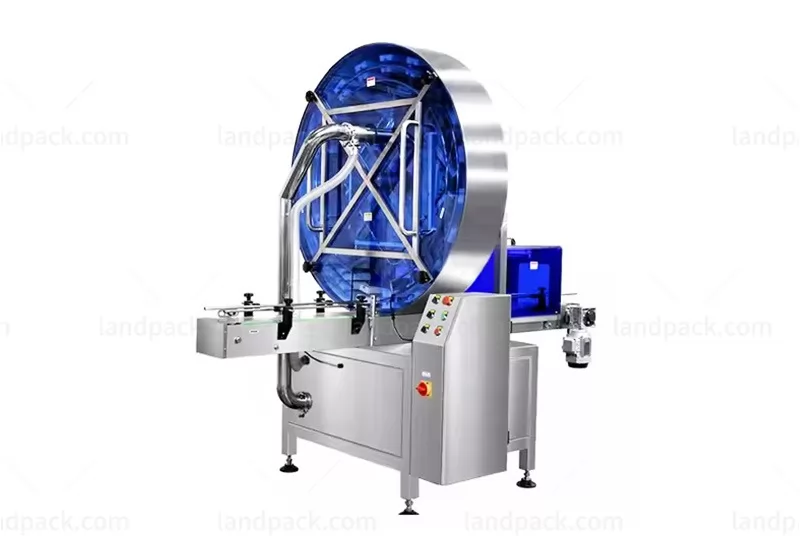

1. Automatic UV cleaning sterilization machine
2. Vibration plate spoons feeder
3. Automatic powder weighing filling machine
4. Automatic vacuum can seaming machine with nitrogen air filling device
5. Laser printer
6. Weight detection and elimination machine
7. Automatic empty cans cleaning machine
8. Automatic plastic lids pressing machine
Model | LF-PJ-02 | LFP-02 |
Filling Weight | 10-5000g(customizable) | 10-5000g(customizable) |
Bottle diameter | Φ30-Φ140mm(customizable) | Φ30-Φ140mm(customizable) |
Bottle height | 50mm-200mm(customizable) | 50mm-200mm(customizable) |
Yield | 10-20 bottles/min | 20-40 bottles/min |
Measurement accuracy | ≤500g, ≤±1%, >500g, ≤±0.5% (Varies due to the characteristics of the material) | ≤500g, ≤±1%, >500g, ≤±0.5% (Varies due to the characteristics of the material) |
Power | 2.5KW | 5KW |
Silo capacity | 50L | 50L |
Power Supply | 220V, 50Hz | 220V, 50Hz |
Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
Weight | 350kg | 550kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
