Application:
Automatic Milk Powder Protein Powder Filling Machine is specially designed for milk powder, infant formula powder, goat milk powder, skim milk powder, protein powder, whey protein, collagen powder, meal replacement powder, and nutritional powder.
Package Type:
Automatic Milk Powder Protein Powder Filling Machine is suitable for metal cans, composite paper cans, aluminum tins, PET powder containers and nutritional supplement jars. Supports packaging sizes from 100g to 5000g with customized container dimensions.
Workflow:

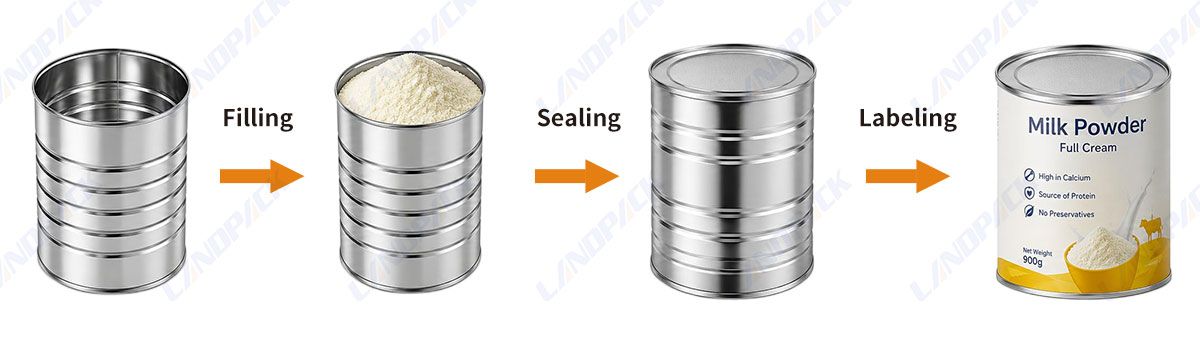

Can Feeding → Automatic Filling → Weight Checking → Can Seaming → Finished Product Output

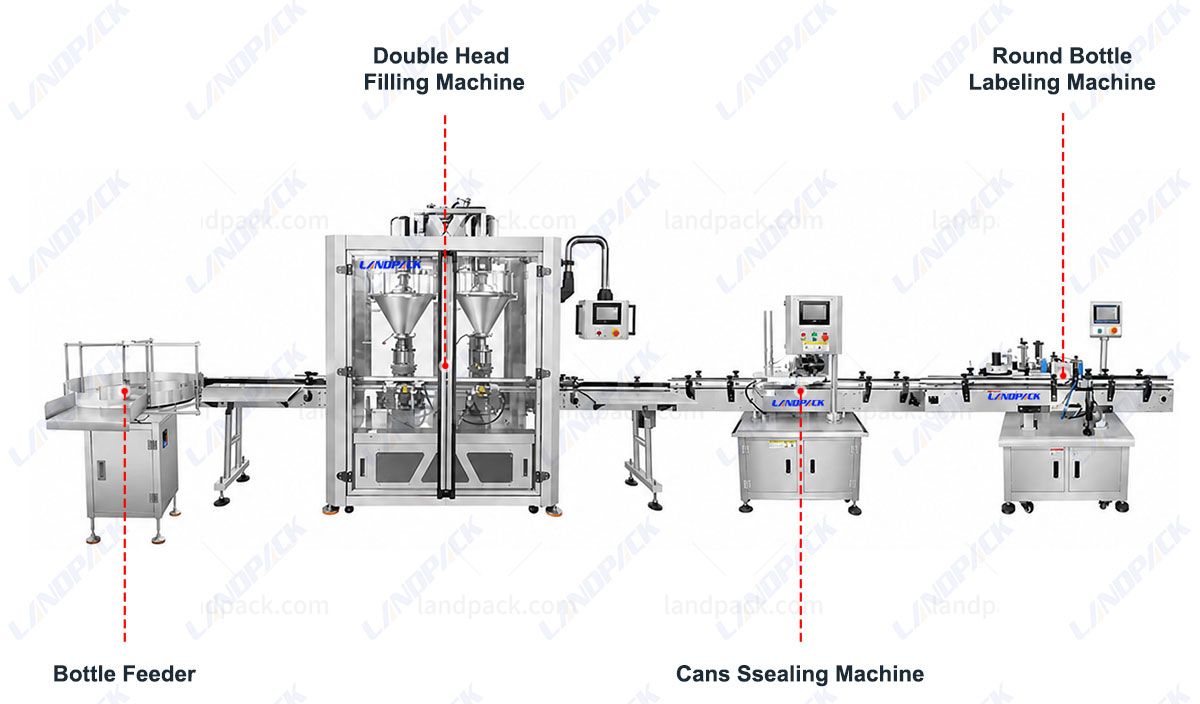

Machine Key Components:
Features:
1. Servo auger filling system provides filling accuracy up to ±1-2g for consistent packaging results.
2. The filling line operates at speeds of up to 15-60 cans per minute, depending on product specifications.
3. A 50L hopper with an agitator ensures stable and continuous powder feeding.
4. PLC and touchscreen control system enable simple operation and quick parameter adjustment.
5. The can seaming machine delivers secure and consistent sealing performance.
6. The machine is manufactured from SUS304 stainless steel for durability and hygiene.
7. An integrated dust collection system helps maintain a cleaner production environment
8. The filling line can be configured with optional systems such as nitrogen flushing, check weighing, and metal detection.

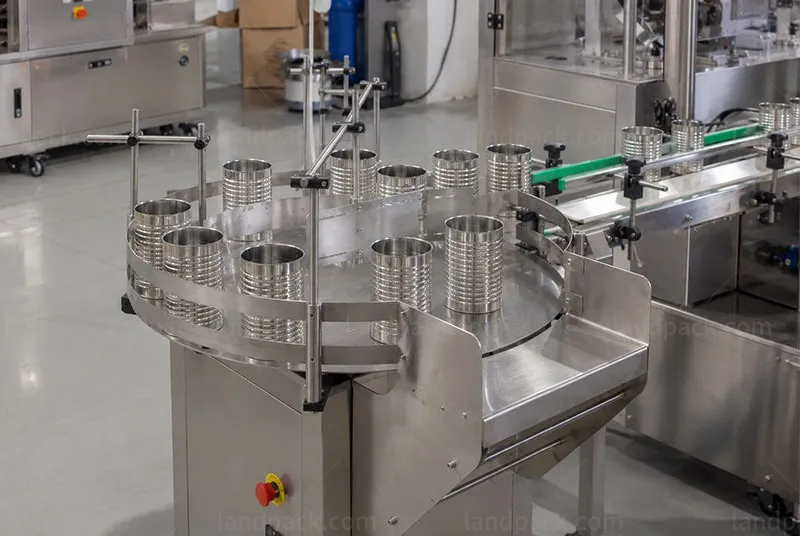

| Automatic Can Feeder | |||
| Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||
| Turntable Diameter | 800mm | ||
| Suitable Can Diameter | 40-130mm | ||
| Suitable Can Height | 30-200mm | ||
| Working Speed | 40-60 bottles/min(depending on bottle size) | ||
| Package Size | 1230*1010*1260mm | ||
| Gross Weight | 141kg | ||

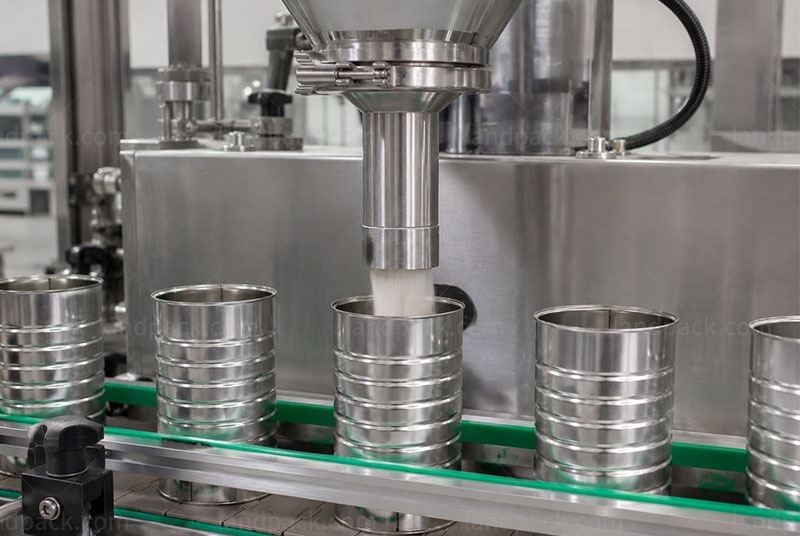

| Auger Filler (powder dosing) | |||
| Max Weight | 10~1000g/time | ||
| Container size | Φ 80-210mm H100-330mm(customized) | ||
| Filling weight | 900g-2500g(customized) | ||
| Filling accuracy | 500g,≤±1% | ||
| Filling speed | 10~30bottles/min(depend on the material and weight) | ||
| Auger Filler hopper | 50L | ||
| Power supply | Three phase380V or single phase | ||
| Total power | 3.5 KW | ||
| Total weight | 420kg | ||
| Dimension | 2000*900*1850mm | ||

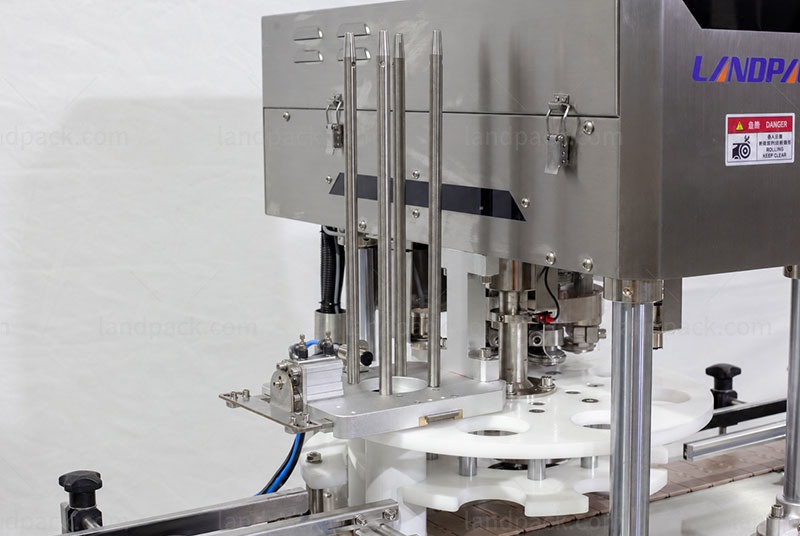

| Automatic Can Seamer Machine | |||
| Bottle type | round, square bottles, etc need to be customized. | ||
| Can body max diameter | 153mm(can be customized) | ||
| Bottle height | 50-150mm(can be customized) | ||
| Speed | 5-8BPM(it depends on product) | ||
| Seaming Type | Nitrogen consumption and vacuum seaming | ||
| Caps feeding type | Automatic lids feeding | ||
| Machine voltage | 220V(can be customized) | ||
| Machine size | 2000*1000*1700mm | ||
| Machine weight | 550kg | ||
| Automatic labeling machine | |||
| Model | LFT-SM-00 | ||
| Labeling speed | 10-40 bottles/min | ||
| Labeling Accuracy | ±1mm (Does not contain product and label errors) | ||
| Max Label width | 200mm | ||
| Applicable Product Size | H≤400mm, T≤100mm (Can be customized) | ||
| Applicable inner diameter of paper | Φ76.2 mm | ||
| Applicable outer diameter of paper | Max.Φ350mm | ||
| Air Source | 4-6KG, 30L/min | ||
| Dimension | 3050*1450*1800mm | ||
| Voltage | 220V, 50Hz, 3500W | ||
| Weight | 500KG | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
