Application:
it is suitable for many kinds of powder products, such as tea powder, medical powder, chemical powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc.
Packaging Line Composition:

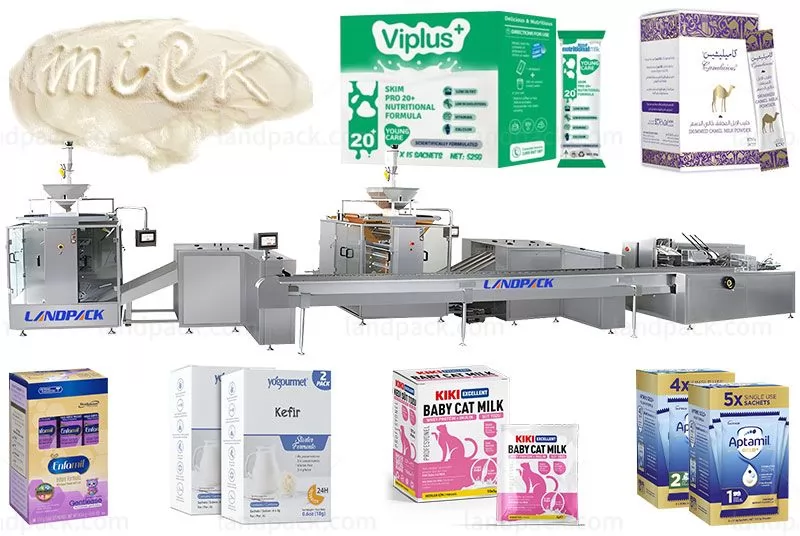

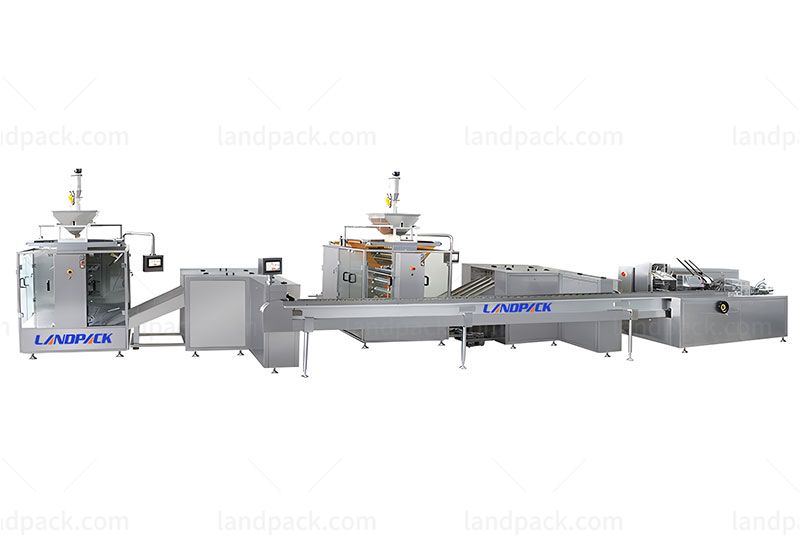

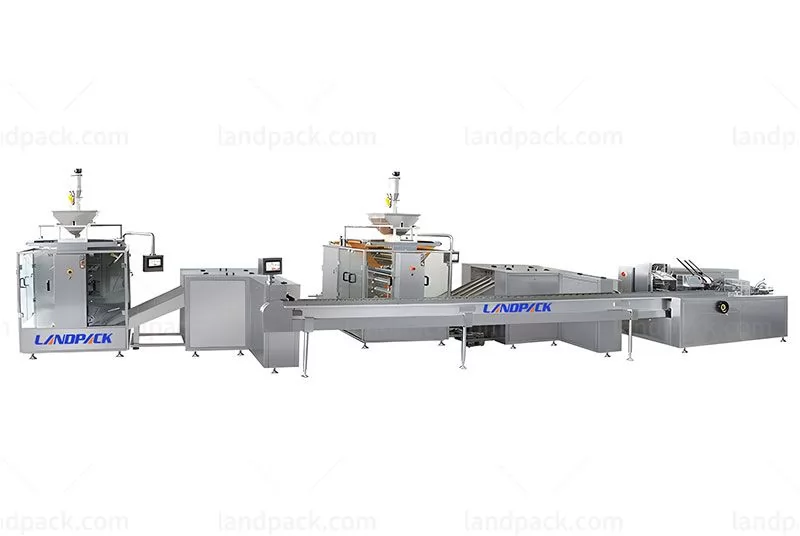

This stick packaging machine line consists of LD-480Y-2 multi-lane stick pack fine granule and powder packaging machine, small bag sorting conveyor, electronic weighing machine, weight sorting scale, and cartoning machine. It can realize stick packed packaging into boxes.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. It is suitable for automatic connection and boxing of 3/4 side sealing bags or stick packs. Online can complete automatic vacuum feeding, bag making, filling, batch numbering, cutting and tearing, bag-shaped punching, bag picking arrangement and transmission, single bag weighing, missing and less filling removal, automatic counting of finished bags, stacking and transferring, manual-folding, carton forming, finished product bag boxing, batch number imprinting, carton packaging, waste rejection, finished product output, product counting, etc. can be automatically completed.
2. Adopt brand PLC control, and automatic counting, to ensure the stable work of the machine and easy maintenance.
3. The main components with stainless steel, and corrosion resistance, to adapt to the different environments of the workshop.
4. Efficient and Waste-Free Bag Sealing: Our machine features multiple rolls for smooth film pulling, and the high-hard stainless steel cutter ensures a clear and precise bag seal without any film residue.
5. To control accuracy and convenient adjustment, the main parts are controlled by servo motors.
| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
