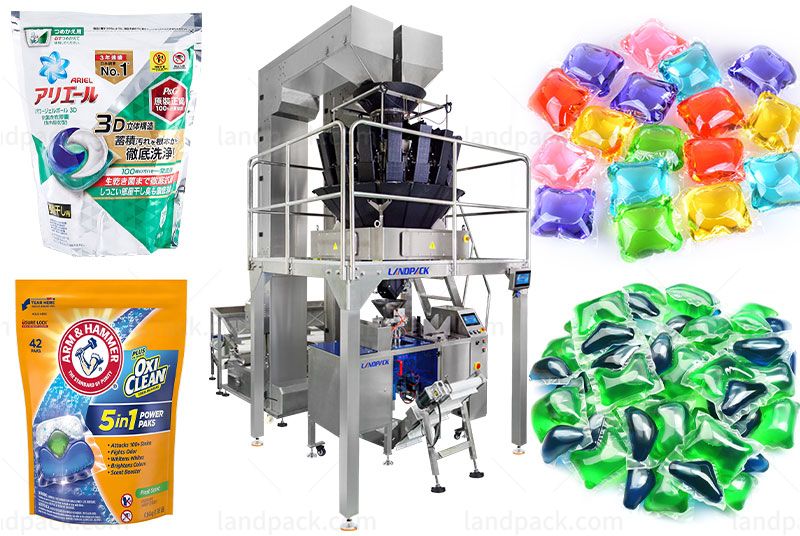

Mixture Detergent Capsules Premade Zipper Pouch Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for packing most kinds of granule material such as laundry pods, detergent capsules, pet food, snacks, nuts, dry fruit, frozen food, candy, oats, popcorn, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:mini doypack machine

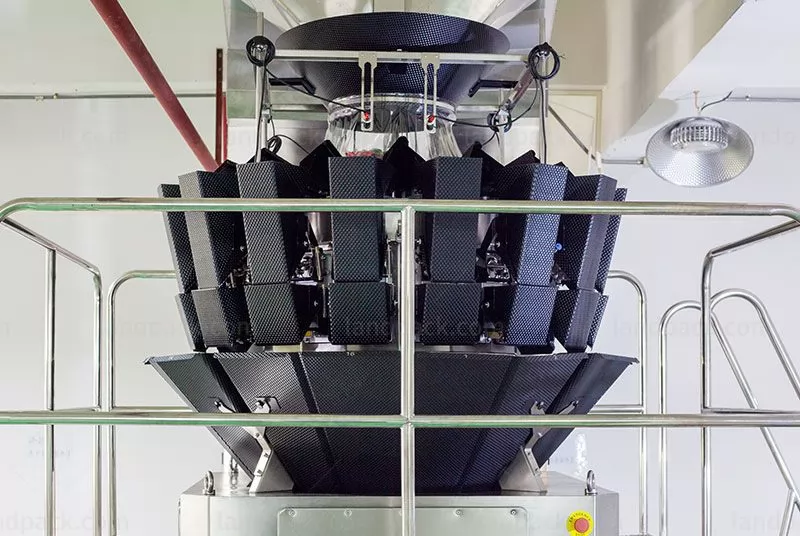

1. 16-head mixture weigher, two kinds of product mix in weigher, to measure and count separately.

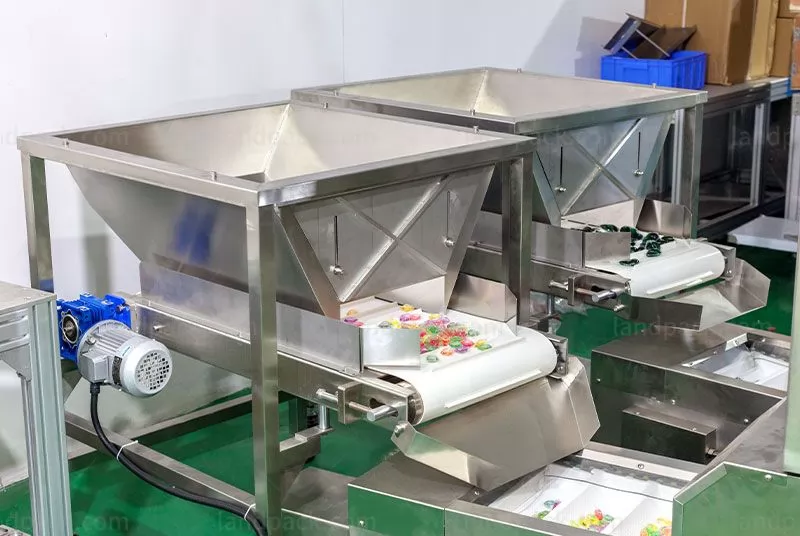

2. Two Z-elevators, deliver different materials.

3. Weigher with dimple and Teflon surface, to avoid the sticky on plate surface.

Work Flow:

1. Intelligent control screen, one-click start.

2. Z-elevator delivers different materials separately.

3. Measure their weight separately and mix them.

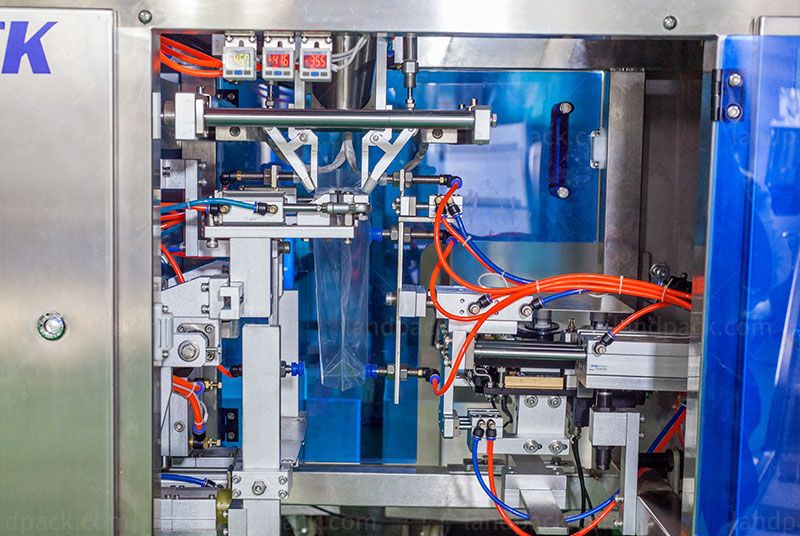

4. Take the bags.

5. Open the bags.

6. Filling.

7. Sealing.

Model
LDB-300A
Bag Material
Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type
3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range
80mm≤W≤300mm 100mm≤L≤300mm
Speed
0-15bags/min
Sealing Type
Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width
10mm (5-20mm can be customized)
Voltage
220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure
0.65Mpa
 Air Consumption
0.3m³/min (Standard machine, no additional function)
 Body Dimension
1770*600*1260mm
 Packing Dimension
1860*710*1650mm (Export non-fumigation wooden case)

After receiving your inquiry,We will send you the quotation as soon as possible.
