Application:

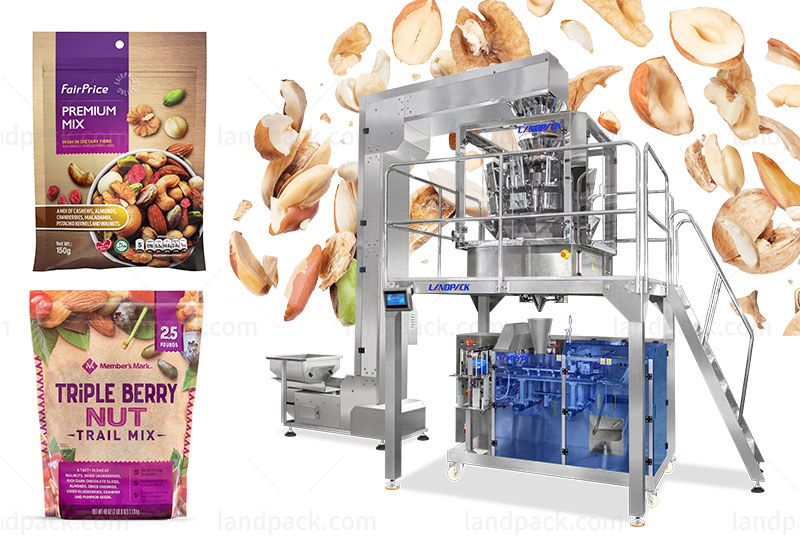

Automatic Beans Nuts Peanut Granule Stand Up Pouch Doypack Packing Machine(LDSP-210A), It is suitable for packing grains and particles into stand up pouch doypack pouch premade pouch. such as peanut, candy, beans, granular medicine, seed, chemical seasoning, melon seed, pistachios, pesticide, fertilizer, feed, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

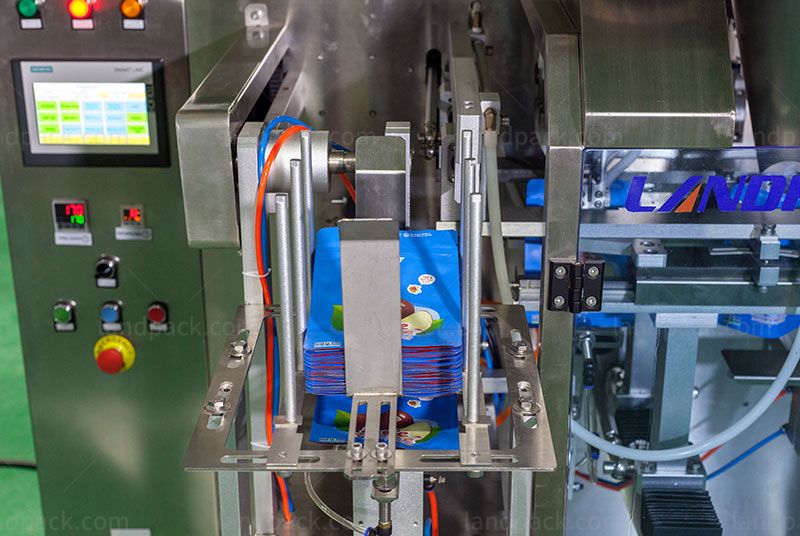

√Easy operation. Most of of parameters in 7inch Simens touch screen with multi-language.

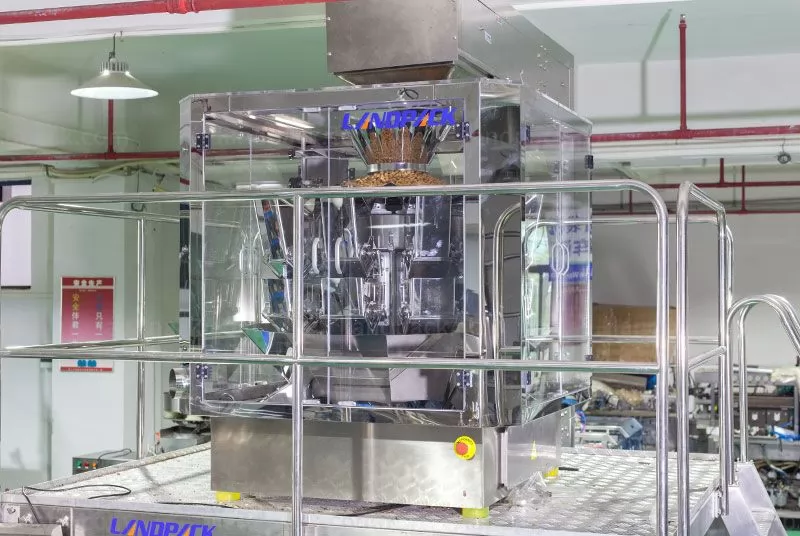

√ Accuracy is very good. Dosing by high precision multihead weigher, Japanese technology ensure high precison and guarratee.

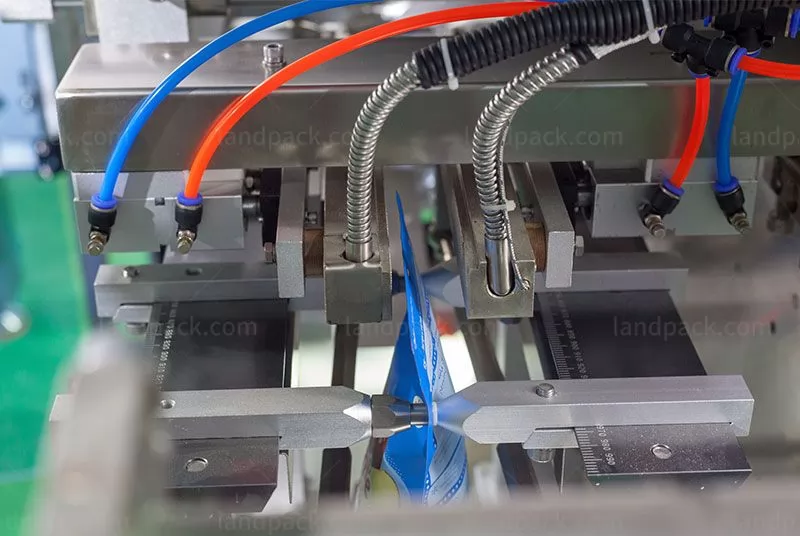

√ Full automatic, Feeding, Dosing, Bag Inputting, Sealing. ( Bag can stand up, or with Euro hole, Linked, date of manufacture )

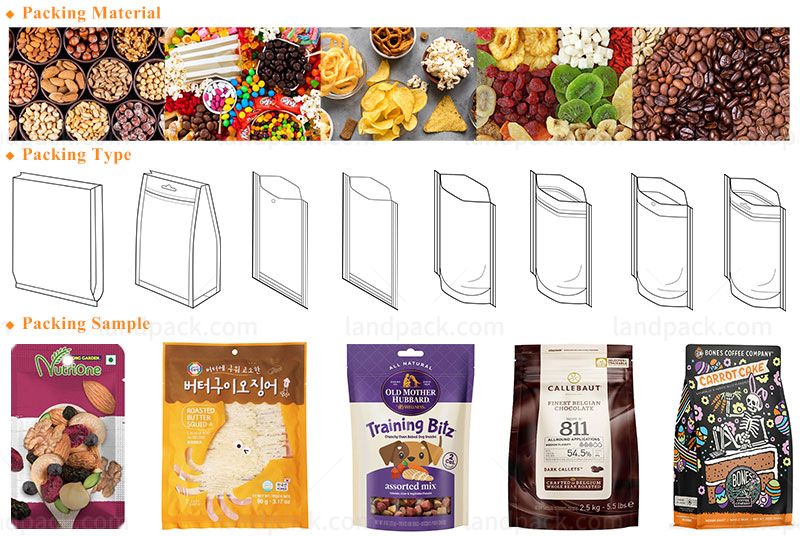

√ Package Film: Lamination Pouch ,PE,Aluminium Pouch, Paper Pouch, Bag type can be Stand bag, zipper bag, flat bag (3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc.).
√ Packaging Machine are used in almost every industry today,food or non-food, They are efficient packaging solutions.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
