Application:

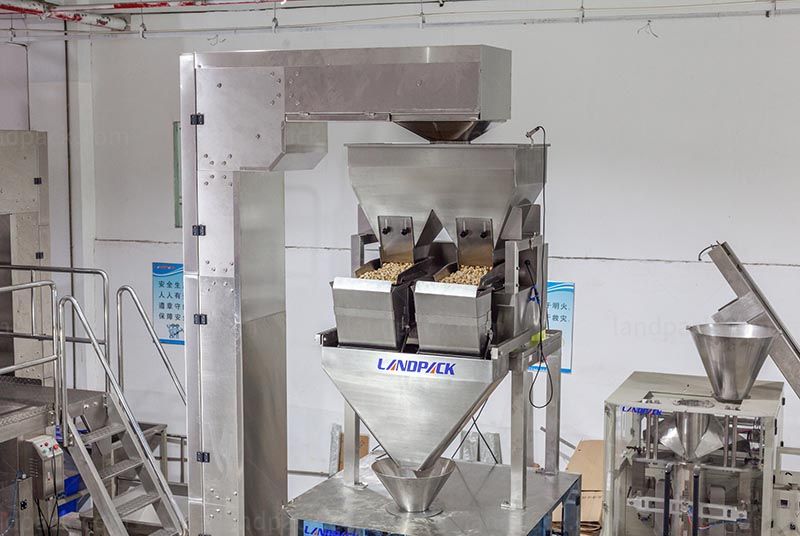

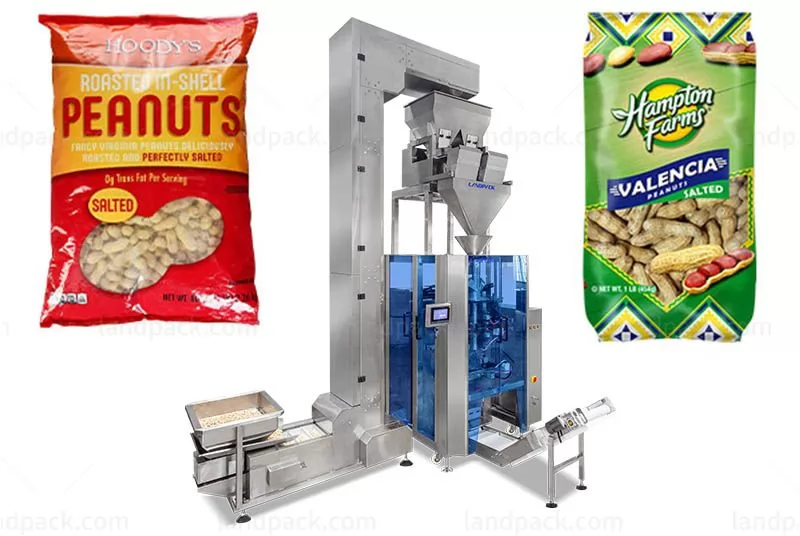

Automatic nut cashew vertical packaging machine with linear weigher, apply to pack bulk grain, slice, short bar material products such as nut, puffy food, popcorn, shrimp chip, salt, sugar, chocolate, dry fruit, sunflower seed, peanut, beans, instant oatmeal / cereal oats, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. New design with perfect fashion, more reasonable structure, more advanced technology.
2. Imported PLC control system, colorful touch screen, easy operation, Intuitionistic and efficient.
3. Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for compele machine, perfect packaging.
4. With auto warning protection function to minimize loss.
5. Various kinds of bag, it could provide the hand hole bag, link bag, etc.
Model | LD-420AS | LD-520AS | LD-720AS |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
| Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | 1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole), 3.Air-filling Device, 4.Tear Notch Device | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
