Application:
Landpack Economical Nuts Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine, it is suitable for conventional granular zipper bags, standing bags, pre-made bags packing such as nuts, spices, biscuits, beans, oats, candy, coffee beans, chocolate, pet food, potato chips, popcorn, dried fruits, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:

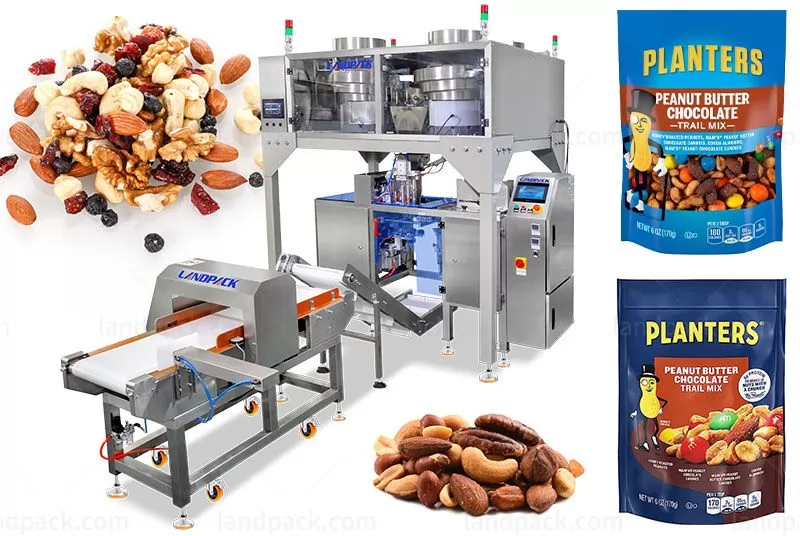

Economical Nuts Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine

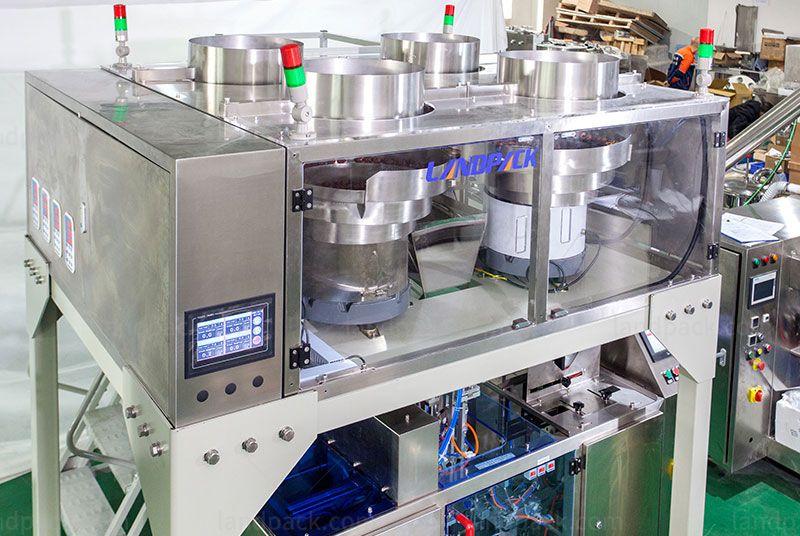

1. Vibration Bowl Weighing Machine With Economical Price.
4. With metal detector，efficiently select the qualified products.
Work Flow:
1. Vibration bowl weigher seperately measure different product weights.
2. Ink jet printer prints the information.
3. Automatically bag feeding.
4. Automatically zipper&bag opening.
5. Automatically filling.
6. Sealing.
7. Output.
8. Finished product conveyor delivers the finished bag to outside.
9. Metal detector.
| Type | Economical Nuts Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine | ||
| LDB-200 | LDB-300 | LDB-430 | |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0~60bags/min | 0~15bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5--20mm) can be customized | ||
| Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
Touch Screen | China Kinco 7 inches corlor touch screen |
Languages | Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages); |
PLC | Japan Panasonic |
Cylinder | Taiwai Airtac (Can be upgraded to Japan SMC) |
Vacuum Generator | China Airbest (Can be upgraded to Vacuum Pump); |
Vacuum Component | Japan SMC; |
Modular Control System For Vacuum Pressure | Japan SMC; |
Modular Control System For Temperature: | China YUDIAN; |
Electrical Component | Schneider / Omron; |
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum; | |
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L). | |
After receiving your inquiry,We will send you the quotation as soon as possible.
