Application:
All kinds of grains and solids material, like nuts, nutlet, raisins, peanuts, candy, melon seeds, chocolate, preserved fruit, biscuits, camphorball, currant, almond, pet food, dilatant food etc can be weighed by the ration. It is also suitable for weighing small bags filling into premade/ stand-up/zipper pouch.
Suitable Pouch: all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
1.Wide application : various shapes, state and nature of products (such as candy, chips, nuts, frozen dumplings, biscuits,mothballs, pet food, puffed food, hardware, plastic parts, etc.)

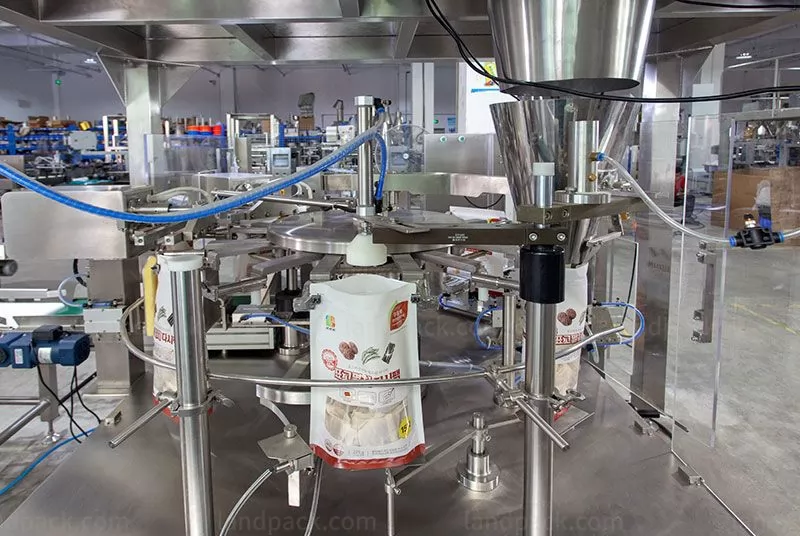

2.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
3.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
4.The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

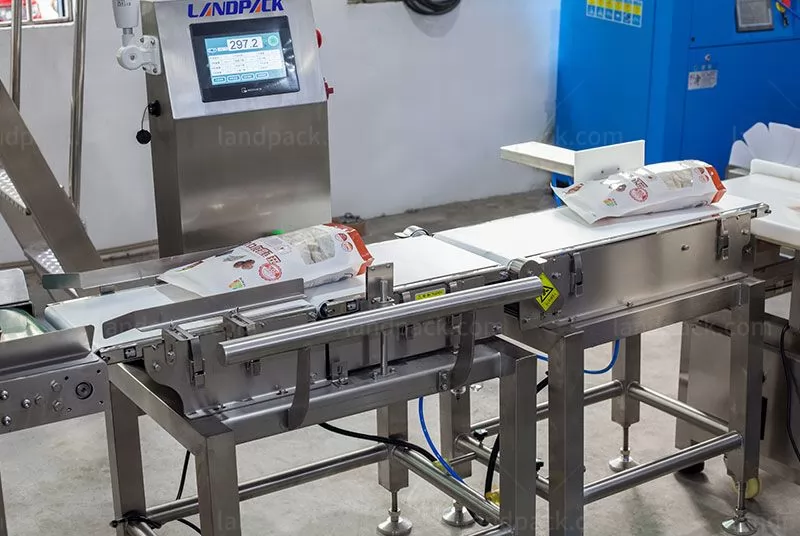

5.Automatic checking system can check bag situation, filling and sealing situation.
6.The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.
7.Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.
8.Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.

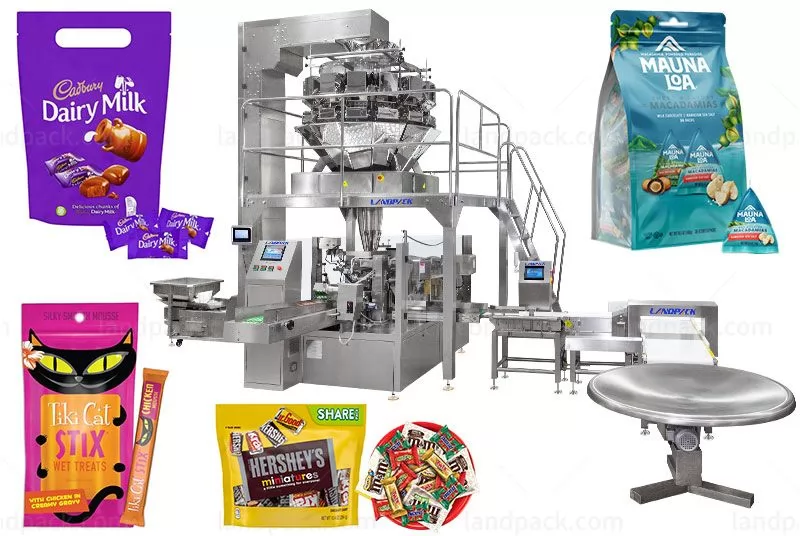

System Unite
1.Z shape bucket elevator conveyor
2.10/14 head multihead weigher
3.Working Platform
4.Premade Bag Packing Machine/Doypack Pouch Packing Machine
| Model | LD-8200/LD-8250 |
| Packing material | all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc. |
| size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
