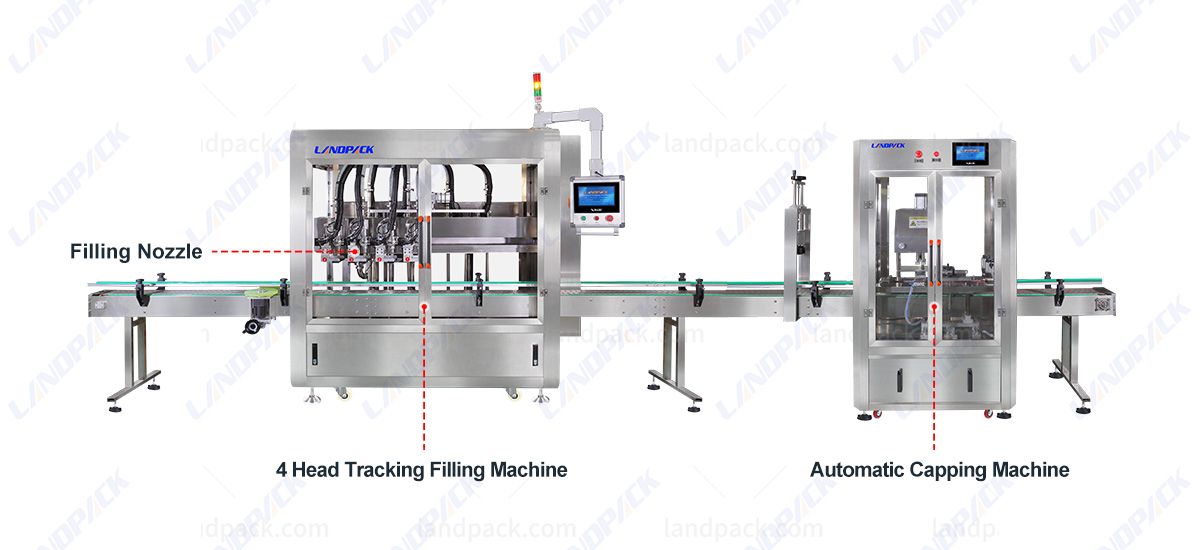

High-Speed Engine Oil Tracking Type Filling Machine with Capping Machine

Application:
This tracking filling machine with capping machine is suitable for bottled water, juice, syrup, honey, liquid soap, hand sanitizer, detergent, disinfectant, lotion, shampoo, conditioner, cooking oil, edible oil, sauce products, and various low-to-medium viscosity liquids.

Package Type:

This tracking filling machine is suitable for plastic bottles, PET bottles, HDPE bottles, round bottles, square bottles, oval bottles, shampoo bottles, detergent bottles, sanitizer bottles, beverage bottles, edible oil bottles, cosmetic bottles, and customized liquid packaging containers.

Workflow:

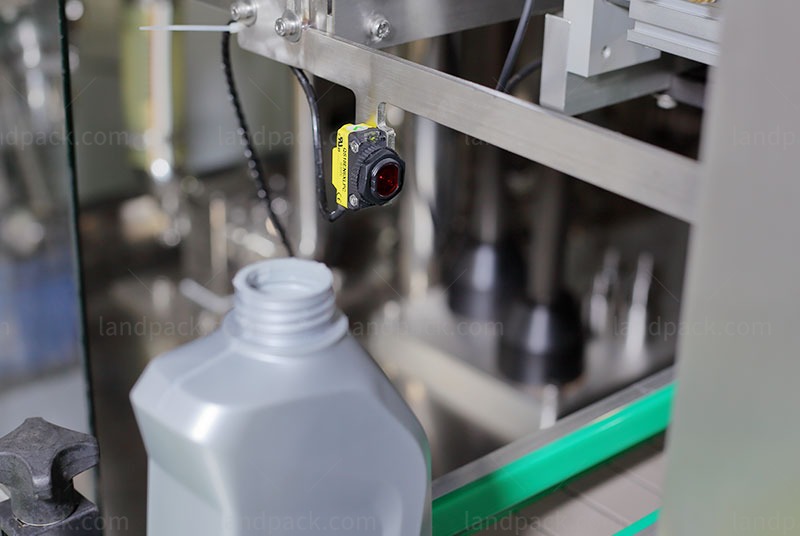

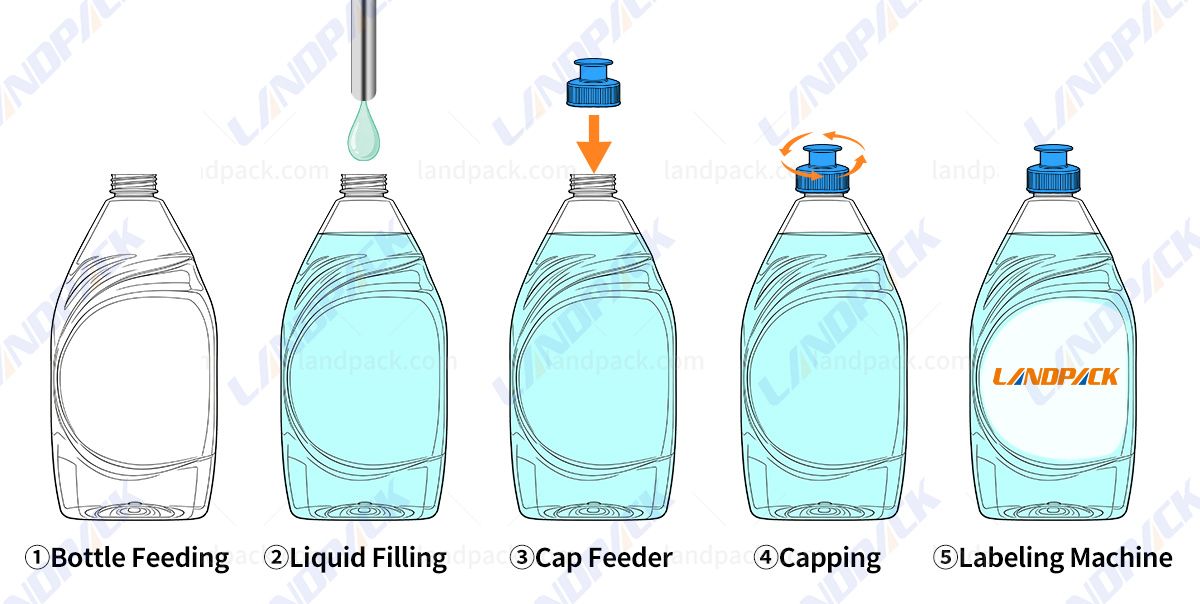

Bottle Infeed → Bottle Detection → Continuous Motion Tracking → Liquid Filling → Cap Feeding → Automatic Capping → Finished Product Output

Machine Key Components:

Features:

1. Continuous motion tracking filling technology allows filling while bottles are moving, increasing production capacity.

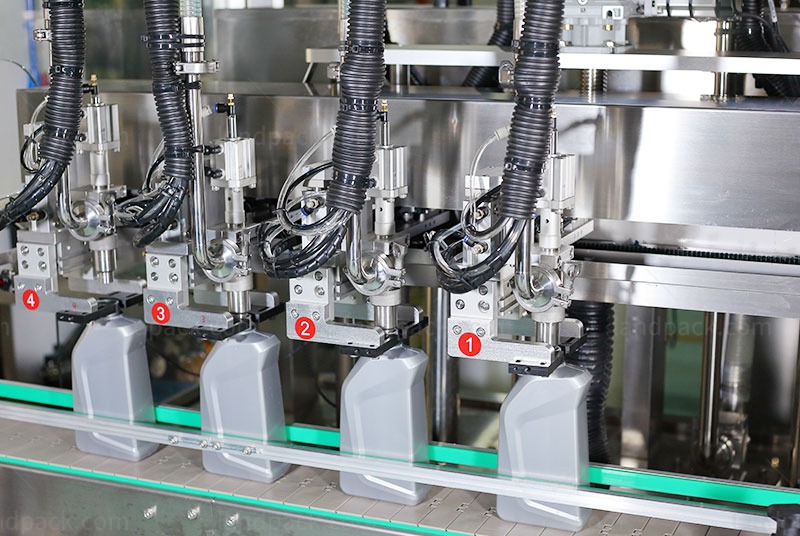

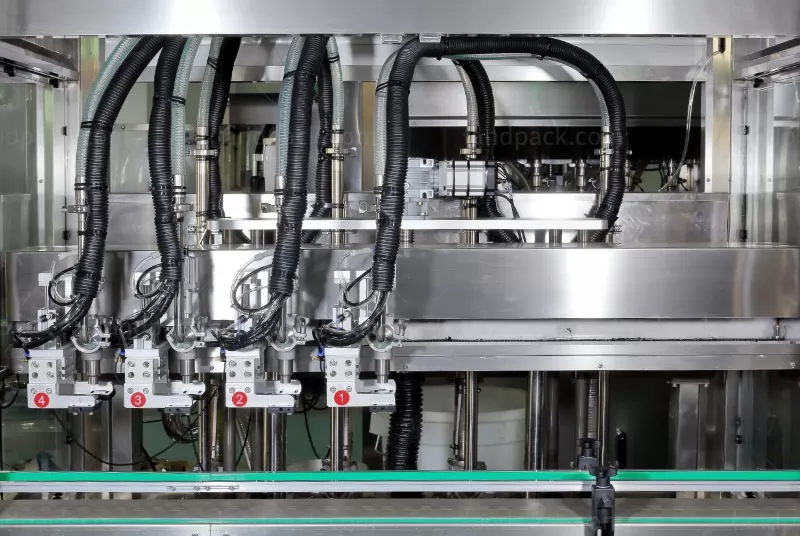

2. Servo-driven filling nozzles automatically track bottle movement to ensure accurate and stable filling.

3. Available with 2, 4, 6, 8, or more filling heads to match different production requirements.

4. High-speed filling system delivers excellent accuracy with reduced foaming, dripping, and splashing.

5. Filling volume can be adjusted directly through the touchscreen without complex mechanical adjustments.

6. PLC and touchscreen control system provide simple operation, recipe storage, and fast product changeovers.

7. International brand electrical components ensure reliable performance and long service life.

8. Compact machine structure supports standalone operation or easy integration into automatic production lines.
