Automatic Air Free Vertical Pouch Packing Machine For Paste/ Sauce

  • Application
  • Description
  • Parameter
  • Video

Application:

1.Suitable for sauces, ketchup, egg white, jam, mayonnaise, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk.

2.It is also suitable for Non-food oil, detergent, grease, industrial paste, etc,

3.Especially suitable for liquid vacuum packing, good for product preservation.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Application3-new.jpg

Using color touch-screen and digitalized management, has automactic stop and alarm advanced function when there is shortage of material or pouches.Thus it is easy to operate and convenient to maintain.

Adpoting Janpanses Panasonic PLC to draw the film, pneumatics to seal pouches, insures accuarte positioning, beautiful seal, so thatit helps to improve the operation stability.

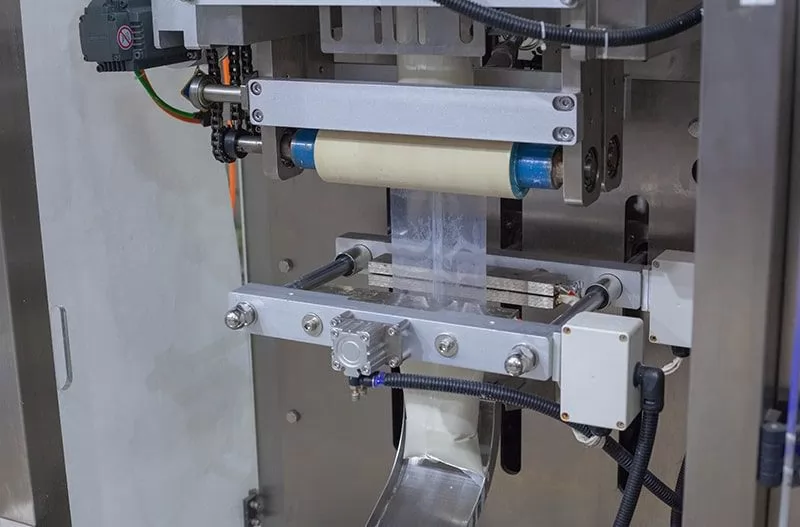

Double-roller to exhaust air by extrusion,which can eliminate the air completely to achieve airless package.

One time completion on bag-making,weighing and adjusting, bagging, sealing, cutting and packing.

Solid and elegant work doors are waterproof and protective.The machine will stop automatically to avoid accident during prodution when workers open the doors to touch the operation part.

The external frame and structrue are made of stainess steel,which is clean and hygienic, up to the indicator of food hygiene quality.

Accessories are produced by large-scale manufacturer with renowned brand, which has more stable performance.

The design is completely up to the food hygiene quality and safety standard.

Type
LD-420L
LD-520L
LD-720L
Film width
Max.420MM
Max.520MM
Max.720MM
Bag length
80-300MM
80-350MM
180-350MM
Bag width
60-200MM
100-250MM
100-500MM
Film thickness
0.04-0.08 MM
0.04-0.12MM
0.04-0.12MM
Packaging rate
5-60Bag/Min
5-60Bag/Min
5-55Bag/Min
Range of measurement
150-1500ml
2000ml
4000ml
Machine size
1217*1015*1343MM
1488*1080*1490MM
1780*1350*2050MM
Machine quality
650KG
680KG
750KG
Power
220V 50/60Hz 2KW
220V 50/60Hz 3KW
220V 3KW
