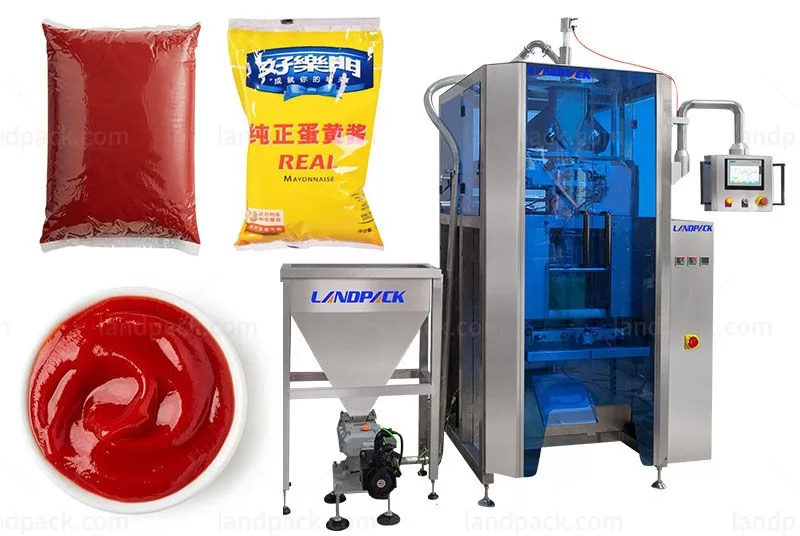

Automatic Liquid Vertical Packaging Machine For Sauce/ Paste/ Oil

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic liquid filling pouch packing machine(LD-420L/520L/720L), It is suitable for packing various kinds of liquid objects, such as ketchup, salad dressing, soy sauce, oli, water, juice, milk, honey, etc.

Package Material:

BOPP/ CPP/ VMCPP, BOPP/ PE, PET/ VMPET, PE, PET/ PE, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:Application3.jpg

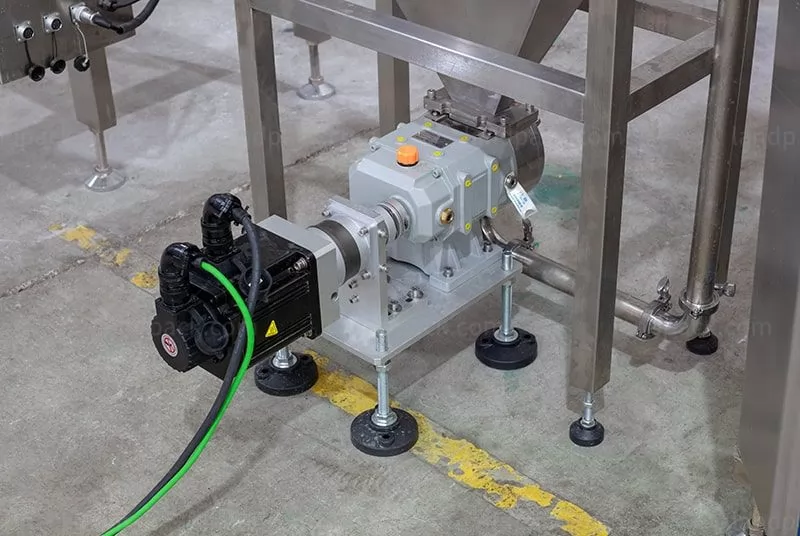

Products dosing, Filling, Laminate heat sealable pouch making and sealing.

Stainless steel 304 structure and surface.

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting

Simple changing of pouch former, to adapt different pouch size requirement.

Intelligent temperature controlling configuration, ensure the artistic and neat sealing

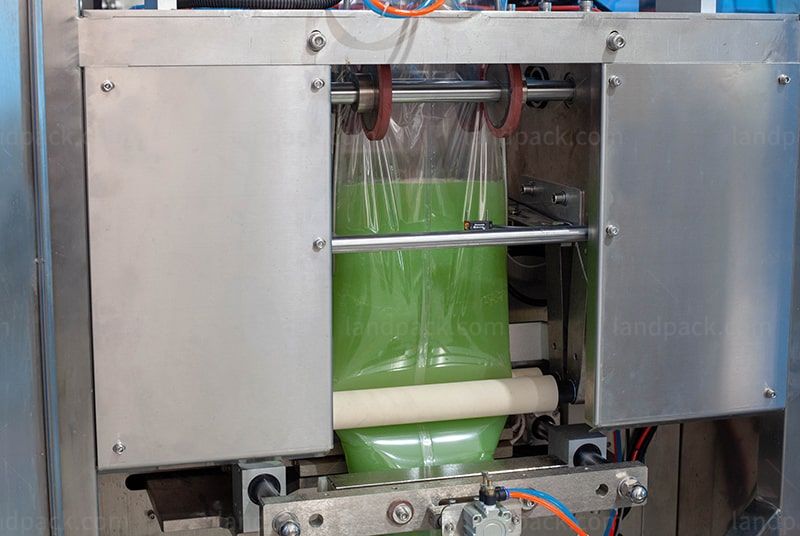

Configure with packaging film pre-pulling device, to enable stable pouch making.

No film no filling, and easy to change the packaging film.

Type
LD-420L
LD-520L
LD-720L
Film width
Max.420MM
Max.520MM
Max.720MM
Bag length
80-300MM
80-350MM
180-350MM
Bag width
60-200MM
100-250MM
100-500MM
Film thickness
0.04-0.08 MM
0.04-0.12MM
0.04-0.12MM
Packaging rate
5-60Bag/Min
5-60Bag/Min
5-55Bag/Min
Range of measurement
150-1500ml
2000ml
4000ml
Machine size
1217*1015*1343MM
1488*1080*1490MM
1780*1350*2050MM
Machine quality
650KG
680KG
750KG
Power
220V 50/60Hz 2KW
220V 50/60Hz 3KW
220V 3KW

After receiving your inquiry,We will send you the quotation as soon as possible.
