Application:
This automatic powder filling line is suitable for filling all kinds of powder products, such as pharma powder, milk powder, nutritional powder, coffee powder, collagen powder, albumen powder, medicine powder, chemical powder, meal replacement powder, etc.
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Full Stainless Steel 304 Frame – Durable, corrosion-resistant construction designed for easy cleaning and long service life.
2. Air-Blow Ion Cleaning System – Removes dust from empty bottles without the need for a separate drying machine.
3. Double-Head Filling System – Main filling and secondary refilling process ensures high-precision filling.
4. Servo Motor & Servo-Controlled Auger – Delivers accurate and stable dosing performance.
5. Dust-Proof Filling Nozzle – Prevents powder dispersion and keeps the working area clean.
6. Integrated Weighing & Check Weighing Functions – Ensures filling accuracy and rejects underweight or overweight products automatically.
Workflow:
1. Belt Bottle Feeder
2. Double Head Air Blow Ion Cleaning Machine
3. Auger Feeder

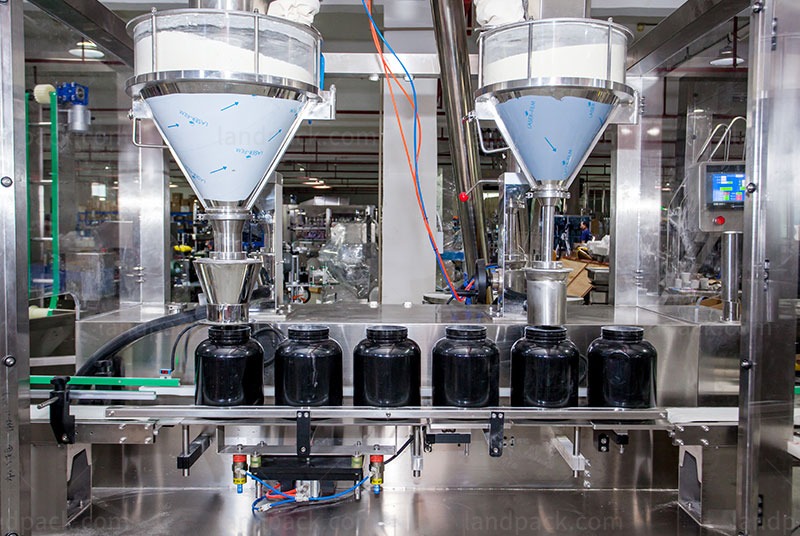

4. Double Head Weighing Filling Machine
5. Spoon Feeder

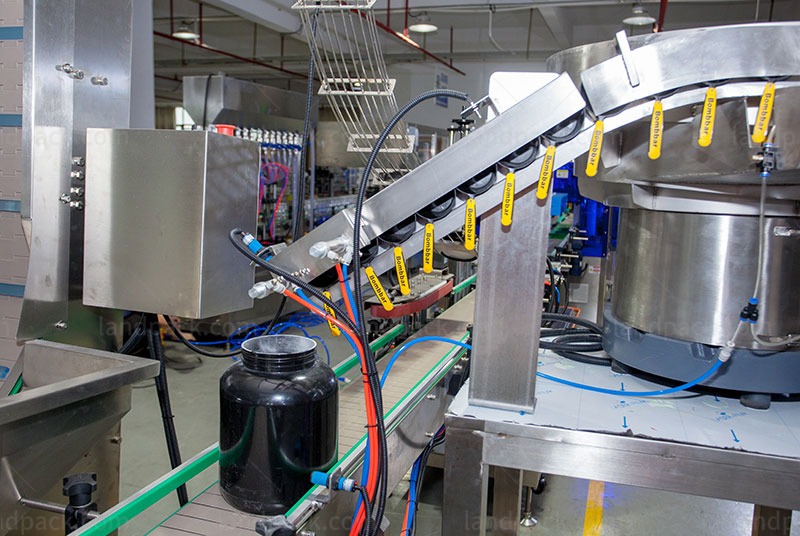

6. Cap Lifter for Feeding the cap
7. Servo Capping Machine
8. Foil Sealing Machine
| Bottle conveyor feeding device | |||
| Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||
| Turntable Diameter | 800mm (Could be customized) | ||
| Suitable Bottle Diameter | 20-100mm | ||
| Suitable Bottle Height | 30-320mm | ||
| Working Speed | 40-60 bottles/min (Could be customized) | ||
| Package Size | 1230*1010*1260mm | ||
| Gross Weight | 141kg | ||
| Automatic bottle washing machine | |||
| Washing head | 4 Heads(can be customized) | 6 Heads(can be customized) | 8 Heads(can be customized) |
| Bottle diameter | 30-130mm(customized) | 30-130mm(customized) | 30-130mm(customized) |
| Washing way | negative ions | negative ions | negative ions |
| Washing speed | 14-24 bottles/min | 25-35 bottles/min | 36-46 bottles/min |
| Machine body | SS304 | SS304 | SS304 |
| Machine voltage | 220V(can be customized) 3.5KW | 220V(can be customized) 3.5KW | 220V(can be customized) 3.5KW |
| Machine weight | 580kg | 680kg | 780kg |
| Machine size(L*W*H) | 2000*1000*1800mm | 2000*1500*1800mm | 2000*2000*1800mm |
| Automatic powder weighing filling machine | |||
| Model | LFP-01 (Single Head Powder Filling) | LFP-01 (Single Head Powder Filling) | LFPD-50-30 (Double Head Powder Filling) |
| Filling Weight | 10-5000g (Replace screw specifications) | 10-5000g (Replace screw specifications) | 100-2000g |
| Bottle diameter | Φ30-Φ140mm (Could be customized) | Φ30-Φ140mm (Could be customized) | Φ60-Φ135mm |
| Bottle Height | 50mm-200mm (Could be customized) | 50mm-200mm (Could be customized) | 601-260mm |
| Capacity | 10-20 bottles/min | 20-40 bottles/min | 10-25 bottles/min |
| Measure accuracy | ≤500g,≤±1%; ≥500g,≤±0.5% | ≤500g,≤±1%; ≥500g,≤±0.5% | 100-1000g,≤±2g; ≥1000g,≤±5g |
| Power | 2.5KW | 5KW | 4.5KW |
| Hopper Capacity | 50L | 50L | 50L, 30L |
| Power | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ |
| Voltage | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Weight | 350kg | 550kg | 500kg |
| Vibration plate spoons feeder | |||
| Voltage | 220V/50Hz (customized) | ||
| Power | 300W | ||
| Speed | 10-40 BPM (customized) | ||
| Vibration top diameter | 60-80cm | ||
| Spoon size | customized | ||
| Outline dimension | 1000*800*1200MM (L×W×H) | ||
| Net weight | 150KG | ||
| Capping Machine | |||
| Model | LDBZ-2C (Double heads servo capping) | LDBZ-C (Single head servo capping) | LDBZ-3C (Three heads servo capping) |
| Capacity | 40 Bottles/min | 30 Bottles/min | 50 Bottles/min |
| Bottle diameter | Φ25mm-Φ100mm (Could be customized) | Φ25mm-Φ100mm (Could be customized) | Φ25mm-Φ100mm (Could be customized) |
| Bottle sealing height | 40mm-200mm (Could be customized) | 40mm-200mm (Could be customized) | 40mm-200mm (Could be customized) |
| Power | 2.5KW | 2KW | 3KW |
| Voltage | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ |
| Air pressure | 0.5-0.7Mpa | 0.4-0.6Mpa | 0.7-0.9Mpa |
| weight | 350kg | 300kg | 400kg |
| Aluminum foil sealing machine | |||
| Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |
| Applicable bottle diameter | Φ10-200mm (Could be customized) | Φ10-200mm (Could be customized) | |
| Applicable bottle height | H:40-300mm (Could be customized) | H:40-300mm (Could be customized) | |
| Speed | 0-30 bottles/min | 0-10 bottles/min | |
| Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |
| Voltage | 220V,50HZ | 220V,50HZ | |
| Power | 1500W | 1200W | |
| Dimension | 1500*800*1750mm | 1200*600*1550mm | |
| Automatic UV sterilization UV | |||
| Voltage | 380v, 50hz | ||
| Power | 1100W | ||
| Bottle size | OD: Φ73-127 H: 80-200mm | ||
| Disinfection speed | 1-45bottles/min (can be customized) | ||
| Dimension | 2500*1510*2435mm | ||
| Weight | 200kg | ||

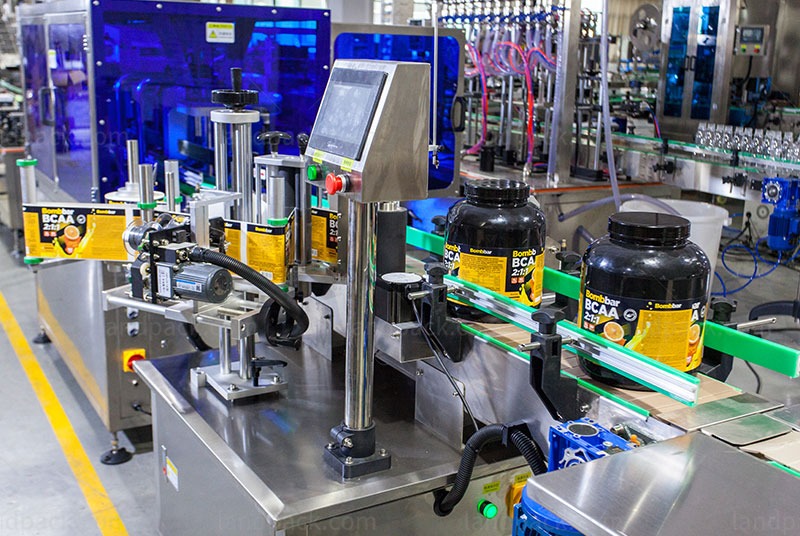

| Automatic Labeling Machine | |||
| Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |
| Label length | 20mm～300mm | 20mm～300mm | |
| Label width/height | 20mm～200mm(can be customized) | 20mm～200mm(can be customized) | |
| Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | |
| Roll Label outer diameter | 300mm | 300mm | |
| Roll Label inner diameter | 76mm | 76mm | |
| Accuracy | ±1mm | ±1mm | |
| Label speed | 40-100pcs/min | 60-120pcs/min | |
| Conveyor speed | 5～25m/min | 15～20m/min | |
| Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) | |
| Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |
| Voltage | 220V can be customized 4KW | 220V can be customized 4KW | |
| Weight | 350KG | 450KG | |
| Overall dimension | 3000*1450*1950mm | 3050*1550*1950mm | |
After receiving your inquiry,We will send you the quotation as soon as possible.
