Application:

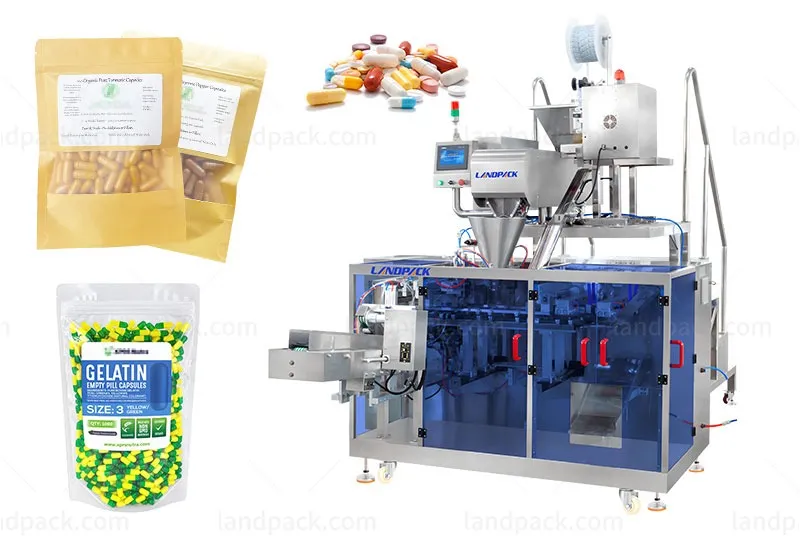

This pharmaceutical sachet packaging machine counts and packs hard capsules, softgels, tablets, pills, and similar solid-dose products into premade pouches. The 8-channel counter controls the quantity for each pack, while the desiccant inserter cuts and places a packet before sealing. This sachet filling machine pharma setup runs at up to 50 bags/min, depending on capsule count and pouch size.
Package Type:
The machine handles premade zipper pouches, stand-up pouches, doypacks, flat pouches, and small pharmaceutical sachets. It supports different pouch widths, zipper formats, capsule quantities, and desiccant packet sizes. Laminated pouch materials can include PET/PE, PET/AL/PE, and other heat-sealable structures.

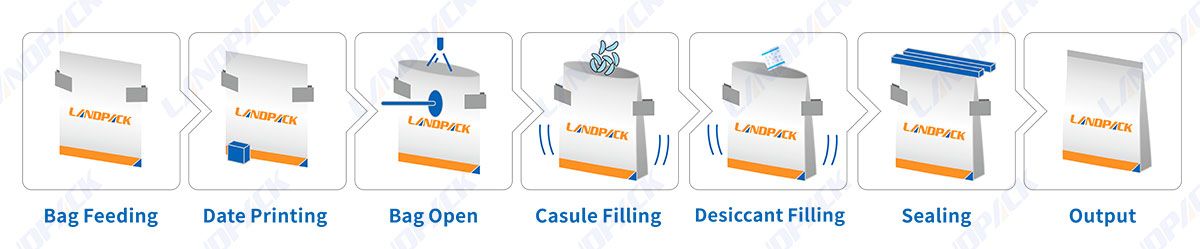

Workflow:
1. Automatic Pouch Feeding, 2. Zipper Opening, 3. Pouch Opening, 4. Capsule Counting, 5. Capsule Filling, 6. Desiccant Cutting and Feeding, 7. Hot Sealing, 8. Finished Pouch Output

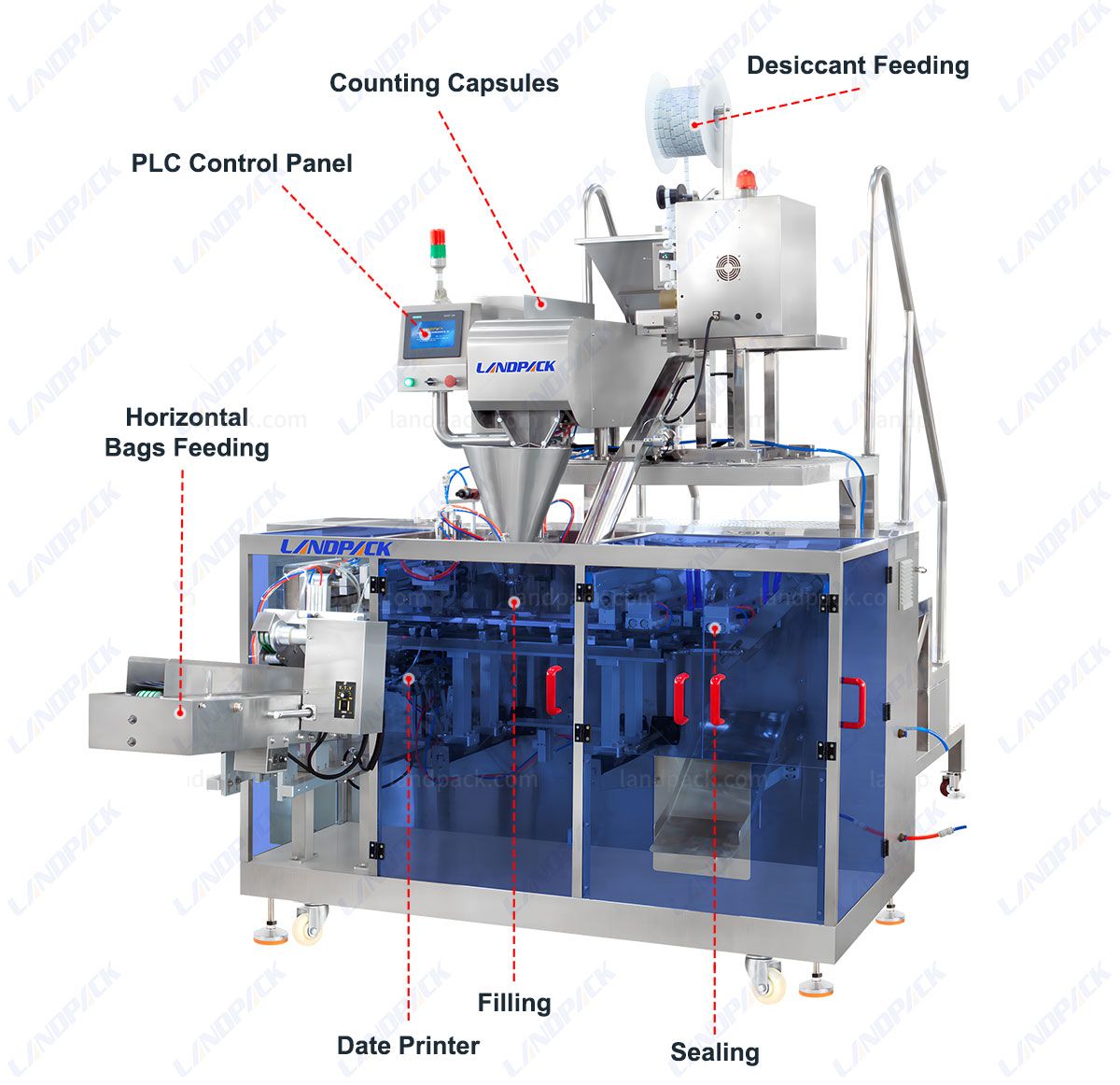

Machine Key Components:
Feature

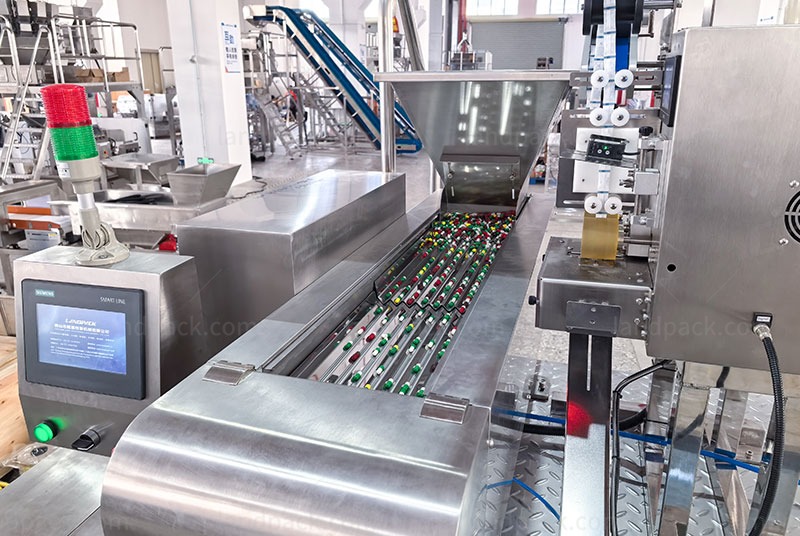

1. 8-channel counter handles capsules, tablets, pills, and softgels
2. Electronic counting controls the quantity in each pouch
3. Automatic pouch feeder reduces manual pouch loading
4. Zipper-opening unit handles resealable premade pouches
5. No-pouch, no-fill control prevents capsule discharge without a pack in position

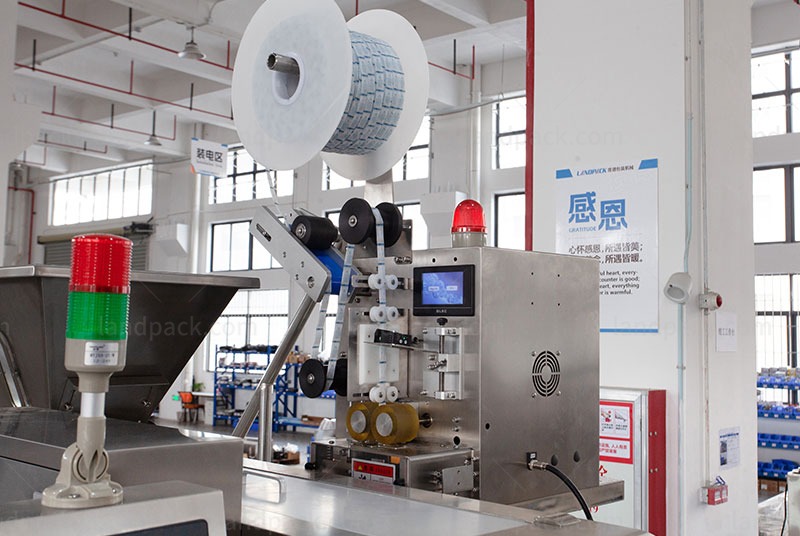

6. Desiccant inserter cuts and places packets automatically
7. Separate counting and desiccant stations keep both operations independent
8. Hot-sealing unit closes the pouch after capsule and desiccant loading
9. PLC and touchscreen control product count, pouch feeding, and machine speed
10. Adjustable pouch guides handle different bag widths and lengths
11. Compact horizontal layout combines counting, filling, desiccant insertion, and sealing
| Type | LDSP-160 | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc. | ||
| Bag Size | 110-230mm*80-160mm(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
| Filling Range | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | ||
| Dimensions | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) |
| Collocation | Screw metering, screw elevator | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
