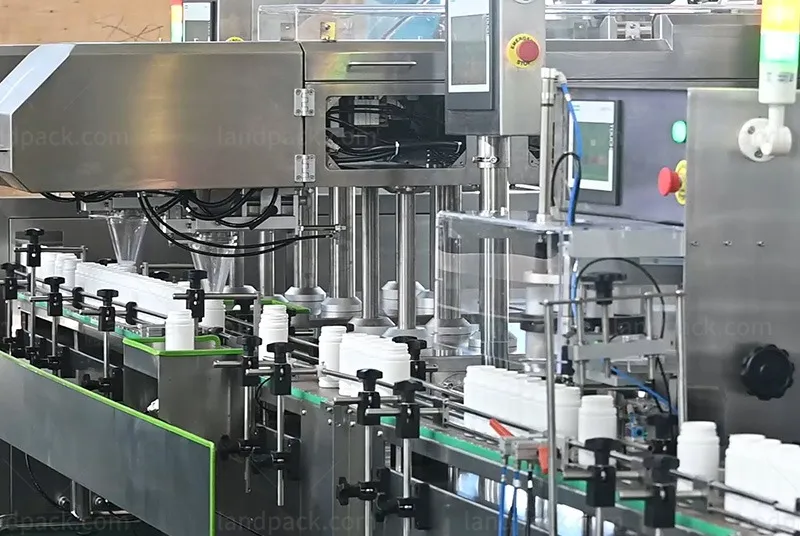

Automatic Pharmaceutical Tablet and Capsule Counting, Bottle Filling, Sealing and Labeling Packaging Line

Application:
This pharma packaging line counts and packs tablets, hard capsules, softgels, pills, and dietary supplements into bottles. It arranges empty bottles, fills the preset quantity, adds a desiccant packet and cotton or sponge, tightens the cap, seals the bottle mouth with foil, and applies the label. The line suits pharmaceutical factories, supplement producers, and contract packaging plants that need a complete pharmapack bottle line.

Package Type:
The line handles round, square, oval, and flat-sided plastic or glass bottles. It supports desiccant packets, cotton or sponge inserts, screw caps, induction foil liners, and pressure-sensitive labels. Change parts match different bottle diameters, heights, neck sizes, cap formats, and label dimensions.

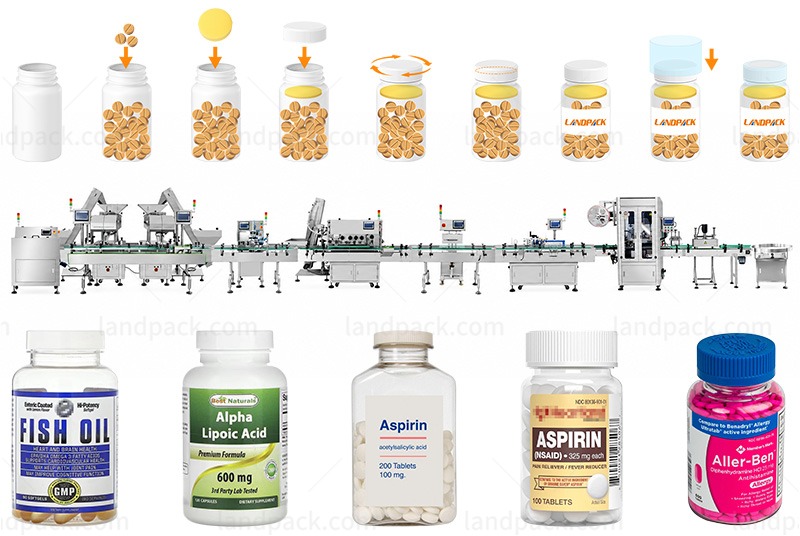

Workflow:

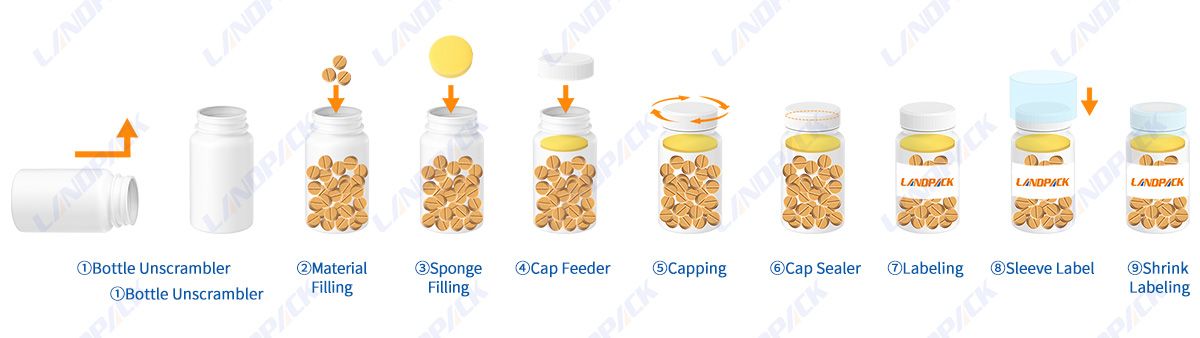

1. Bottle Unscrambling, 2. Tablet and Capsule Counting, 3. Bottle Filling, 4. Desiccant Insertion, 5. Cotton or Sponge Insertion, 6. Cap Feeding, 7. Automatic Capping, 8. Induction Foil Sealing, 9. Bottle Labeling, 10. Finished Bottle Output

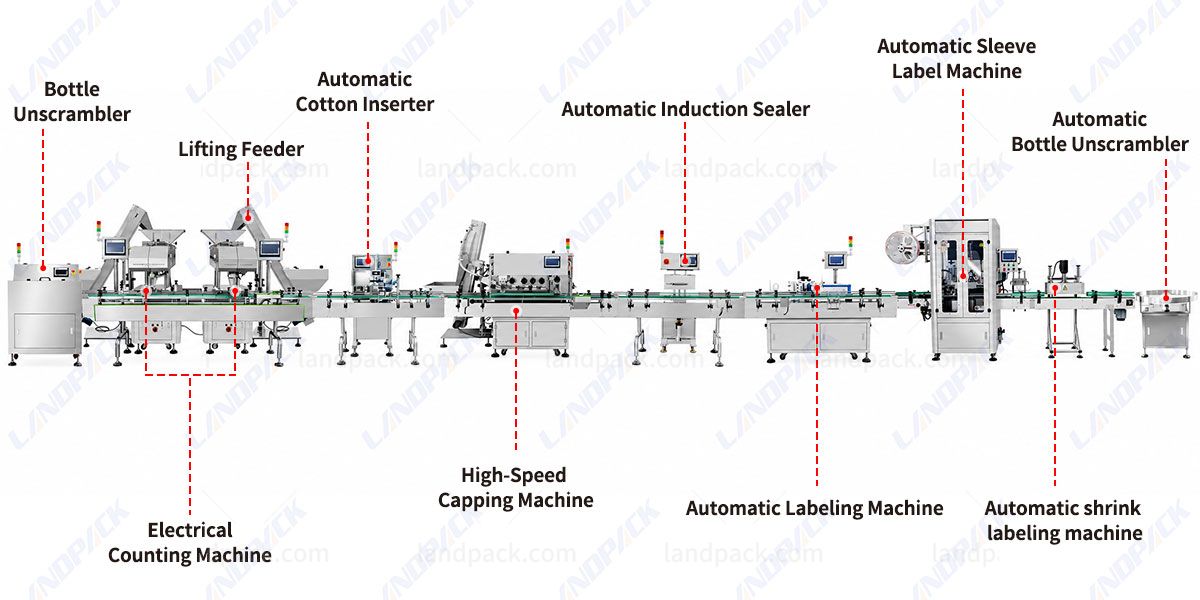

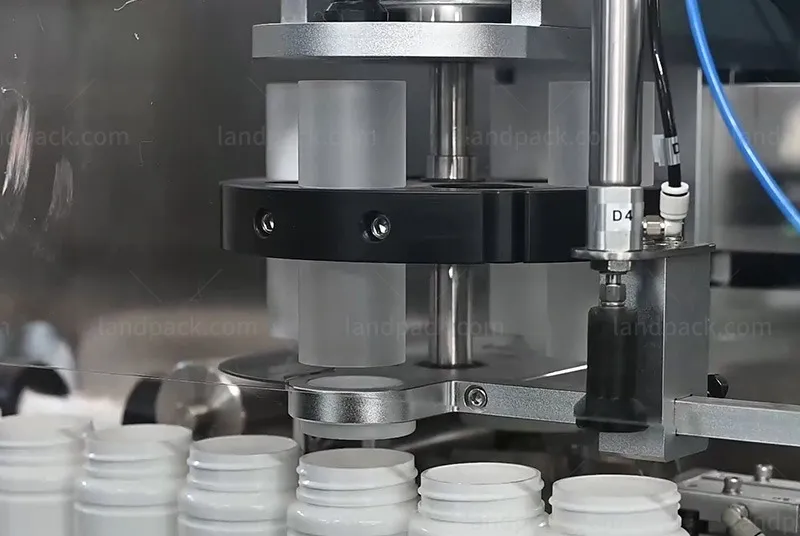

Machine Structures:

Features:

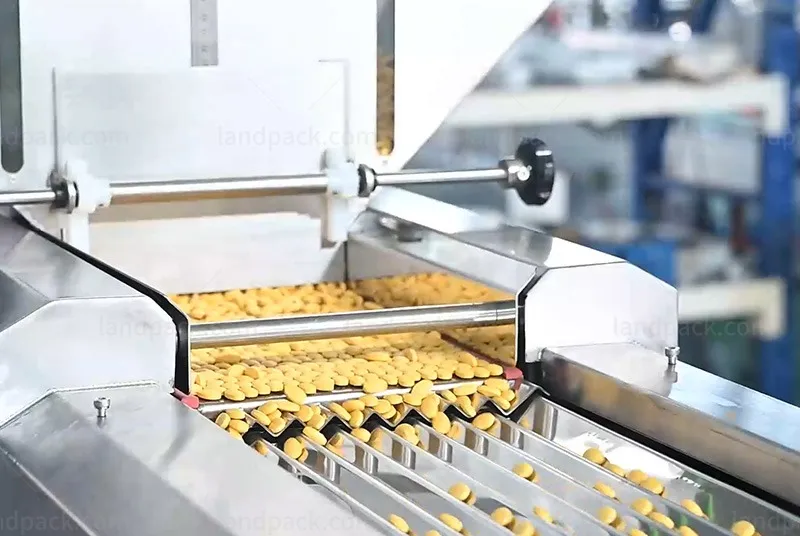

1. Electronic counter handles tablets, capsules, pills, softgels, and shaped products
2. Counting speed reaches up to 12,000 pieces per minute, depending on product size and channel configuration
3. Tablet bottle filling machine controls the quantity through photoelectric counting sensors
4. Bottle unscrambler handles round, square, oval, and flat containers
5. Adjustable conveyor guides support different bottle widths and heights
6. No-bottle, no-fill control stops product discharge when a container is missing
7. Desiccant inserter cuts and places packets automatically
8. Cotton or sponge inserter limits tablet and capsule movement during transport
9. Cap feeder sorts caps and sends them to the closing station
10. Capping unit adjusts torque for different caps and bottle necks
11. Induction sealer applies foil liners without direct contact with the cap
12. Labeler adjusts for different bottle shapes, label lengths, and application positions
13. PLC and touchscreen control counting quantity, conveyor speed, and line settings
14. Modular design allows connection with bottle cleaners, checkweighers, coders, cartoners, and case packers
