Application:
High-Accuracy pharma packaging line is suitable for tablets, capsules, hard capsules, soft capsules, coated tablets, Vitamins, fish oil capsules, calcium tablets, probiotics, dietary supplements, herbal capsules, botanical extracts, enzyme tablets, and functional nutrition products.
Package Type:
High-Accuracy pharma packaging line is suitable for round bottles, square bottles, HDPE bottles, PET bottles, pharmaceutical containers and supplement bottles with screw caps or child-resistant caps.
Workflow:

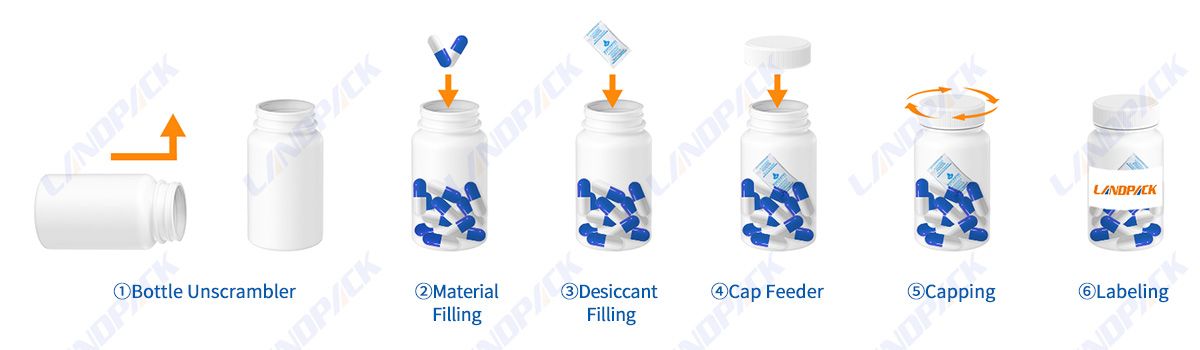

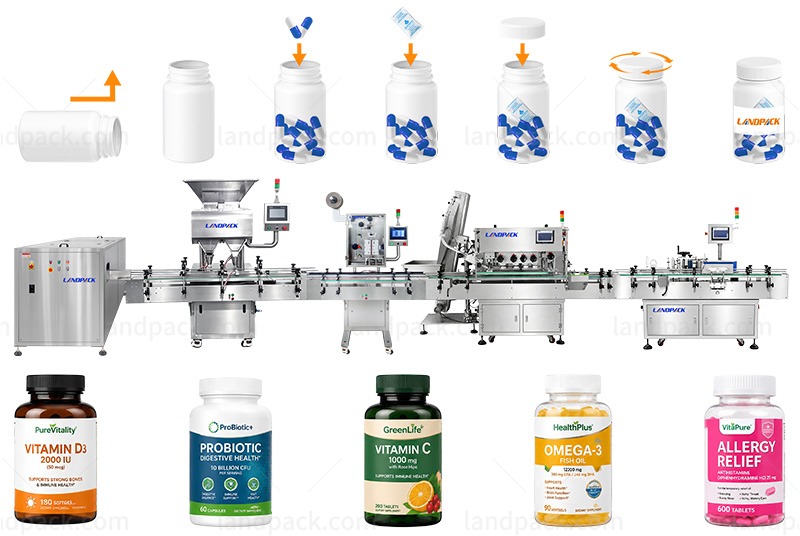

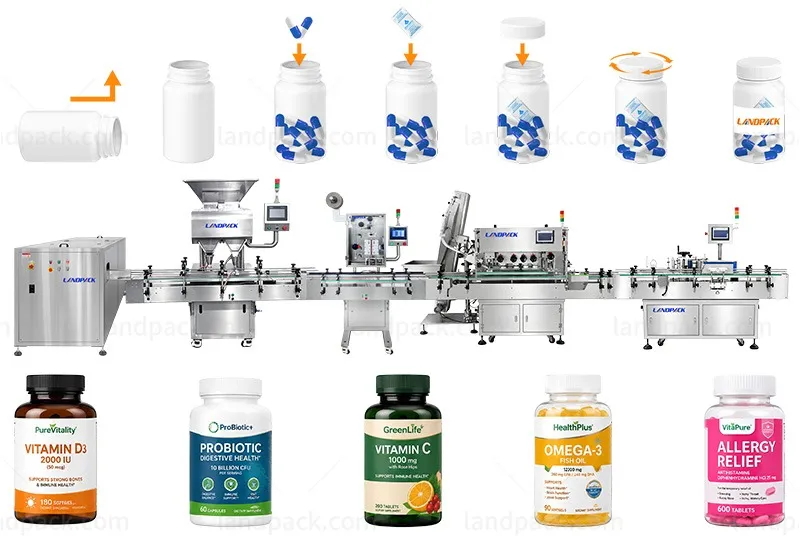

Bottle Unscrambling → Bottle Conveying → Electronic Counting → Product Filling → Desiccant Insertion → Capping → Induction Sealing → Labeling → Finished Product Collection

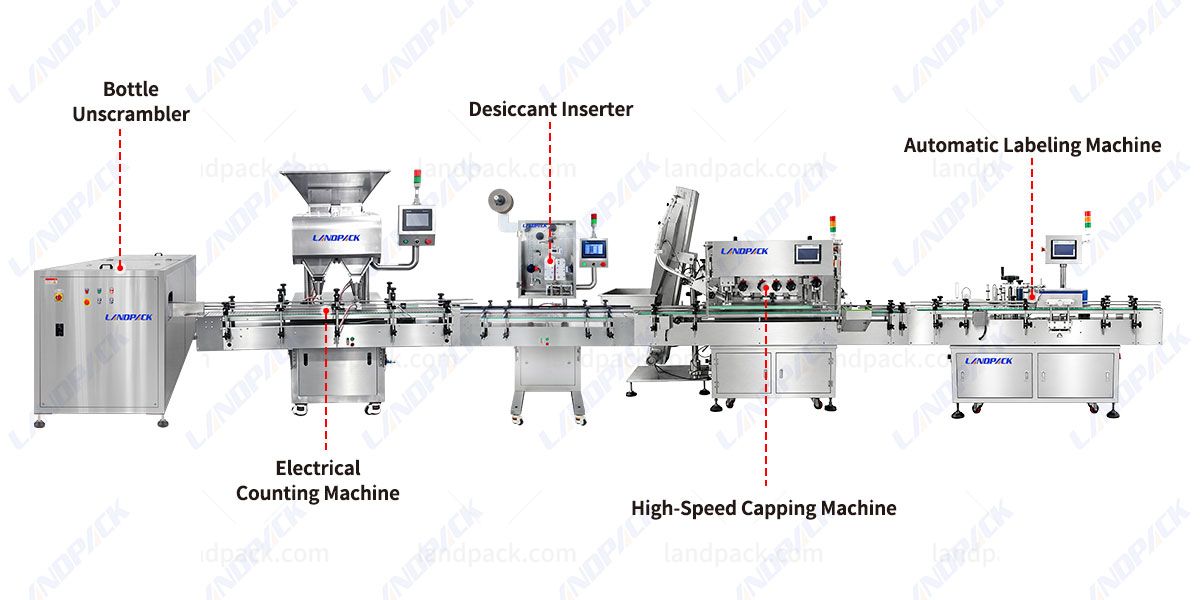

Machine Key Components:
Features:

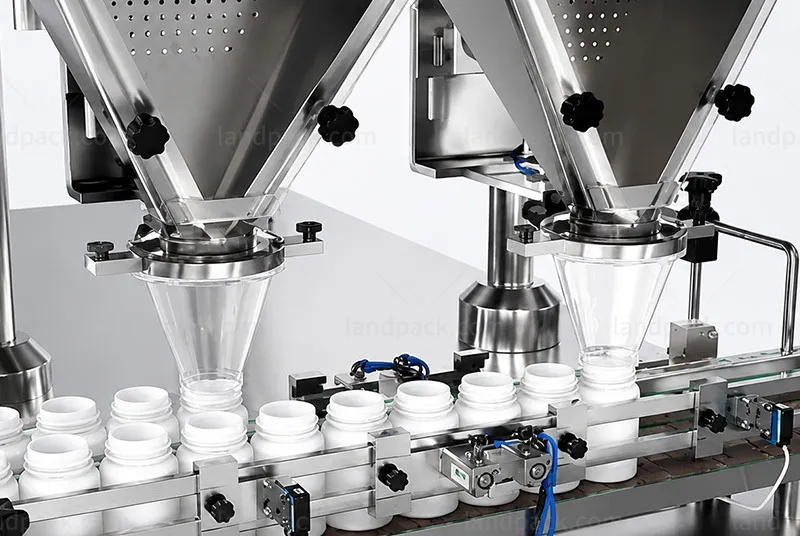

1. High-accuracy electronic counting technology ensures stable counting performance and reliable filling accuracy.
2. Anti-dust design effectively handles tablets, capsules, gummies, candies and other solid products.
3. Compatible with a wide range of bottle sizes, cap types and pharmaceutical packaging specifications.
4. Servo-driven counting system delivers higher speed, stability and production efficiency.
5. PLC and touch screen control support multiple languages and user-friendly operation.
6. SUS304 stainless steel construction meets GMP requirements and simplifies cleaning.
7. Adjustable capping system supports different screw cap specifications with stable sealing performance.
8. Compact machine layout reduces floor space requirements while maintaining continuous production efficiency.

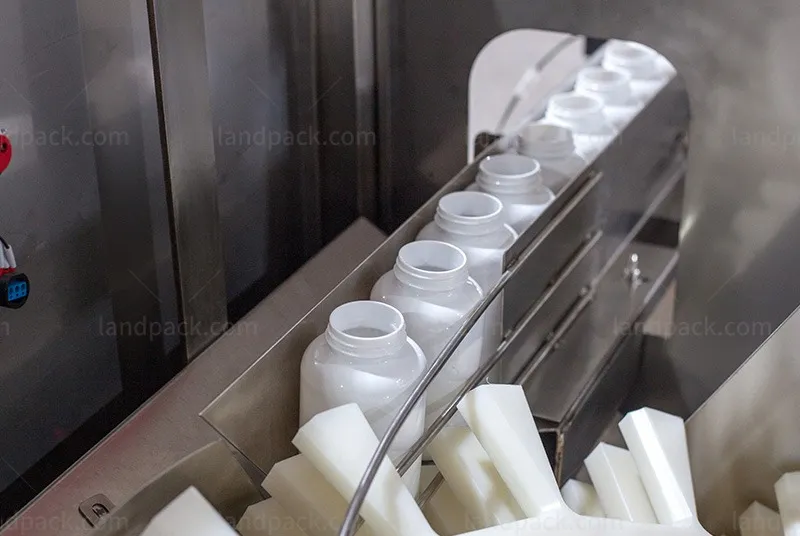

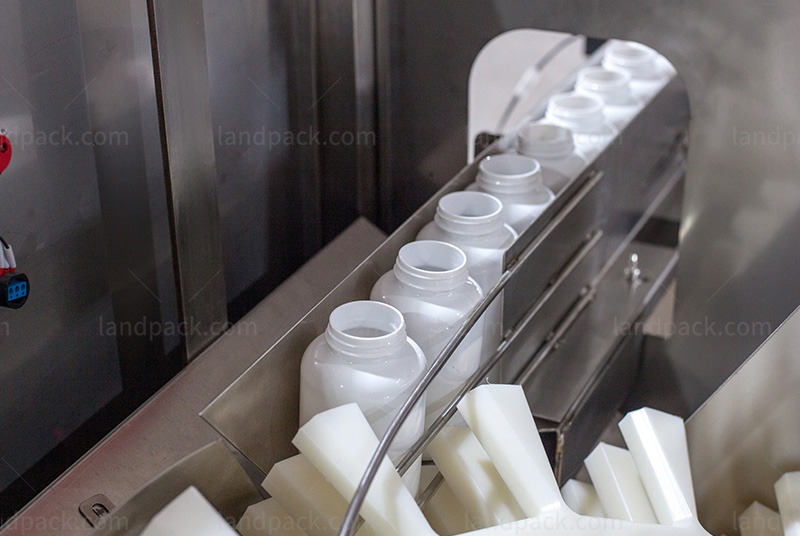

| Automatic Bottle Unscrambler | ||
| Bottle size range | 15-300 ml | |
| Power | 0.50 KW | |
| Air pressure/supply | 0.5 MPa / 0.2 m³/h | |
| Dimensions (L×W×H) | 1006×1506×1200 mm | |
| Weight | 260 kg | |
| Bottle diameter range | 30-85 mm | |
| Output | up to 260 bottles/min | |
| Power consumption | 3.4 KW | |
| Compressed air | 3.5 cfm (≈ 100 L/min) | |

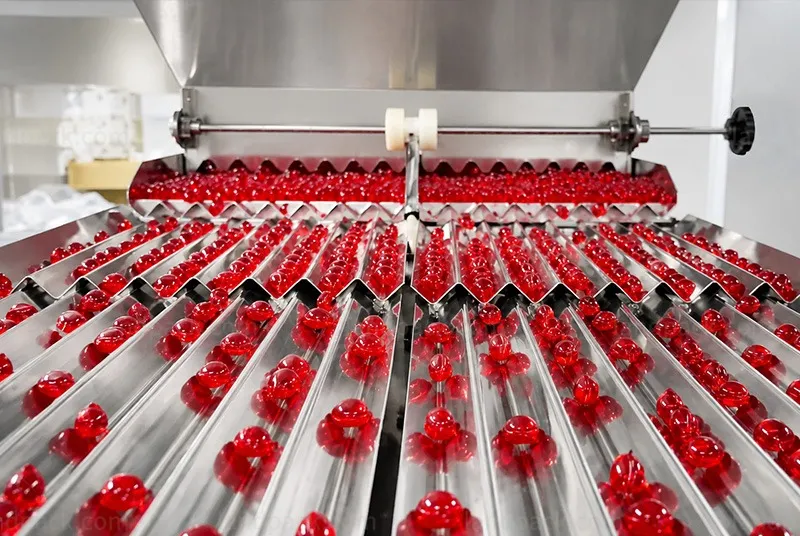

| 16-Channel Capsule Counting Machine | ||
| Output / Bottles per min | up to 80 bottles/min | |
| Counting Accuracy / Precision | > 99.80 % | |
| Power / Voltage | 0.6 kW, 380 / 220 V, 50 Hz Richpacking | |
| Net Weight | 360 kg | |
| Capacity | 30–60 bottles/min | |
| Counting range | 1–999 grains | |
| Tablet / Capsule size | Tablet: 3–22 mm, Capsule: 00–5 | |
| Air pressure & consumption | 0.4–0.6 MPa, ~120 L/min | |
| Overall size | 1800*1300*1600 mm | |
| Desiccant Bag Dispenser | ||
| Insertion Speed | 60-150 bottles/min (depending on model & sachet size) | |
| Sachet Type | Single strip or continuous roll, paper/film sachets | |
| Sachet Size Range | Length 20-60 mm; Width 15-30 mm (customizable) | |
| Bottle Size Range | Diameter 30-120 mm; Height up to 250 mm | |
| Cutting & Feeding | Automatic sachet cutting, positioning, and inserting | |
| Insertion Accuracy | ≥ 99.8% | |
| Control System | PLC with touch screen operation | |
| Power Supply | AC 220 V, 50/60 Hz, 1.0 kW | |
| Air Requirement | 0.4-0.6 MPa, ~100 L/min | |
| Machine Weight | 300-400 kg | |
| Automatic Bottle Capping Machine | ||
| Model | LFX-JX-01(Four wheel capping | |
| Capacity | 20-50 bottles/min | |
| Bottle cap diameter | Ф22mm-Ф80mm | |
| Bottle diameter | Ф35mm-Ф140mm | |
| Bottle sealing height | 38mm-300mm | |
| Power | 1.5KW | |
| Voltage | 220V, 50HZ | |
| Air pressure | 0.6-0.8Mpa | |
| Weight | 250kg | |
| Automatic Labeling Machine | ||
| Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) |
| Label length | 20mm～300mm | 20mm～300mm |
| Label width/height | 20mm～200mm(can be customized) | 20mm～200mm(can be customized) |
| Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) |
| Roll Label outer diameter | 300mm | 300mm |
| Roll Label inner diameter | 76mm | 76mm |
| Accuracy | ±1mm | ±1mm |
| Label speed | 40-100pcs/min | 60-120pcs/min |
| Conveyor speed | 5～25m/min | 15～20m/min |
| Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) |
| Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Voltage | 220V can be customized 4KW | 220V can be customized 4KW |
| Weight | 350KG | 450KG |
| Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
