Application:
It applies to fill all kinds of semi-viscous and viscous products into metal tubes, such as pharmaceutical, ointment, glue, hand cream, paint, toothpaste, cosmetics, condensed milk, peanut butter, food industry products, and other soft tube sealing.
Optional Supporting Devices:
Three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:

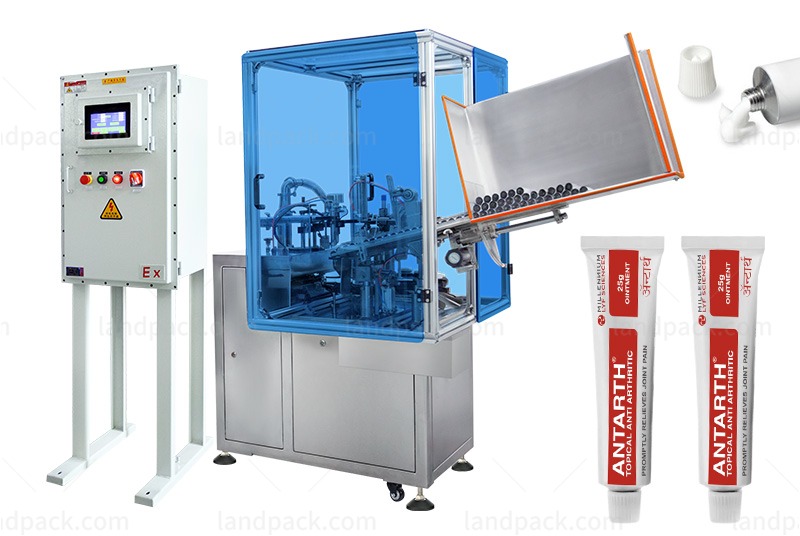

1. Safety-certified explosion-proof electrical system for hazardous material handling.
2. Automated tube feeding mechanism eliminates manual loading requirements.
3. Precision triple-fold sealing technology preserves product integrity.
4. Specialized aluminum tube crimping system ensures leak-proof packaging.
5. High-speed filling accuracy maintains ±1% volume consistency.

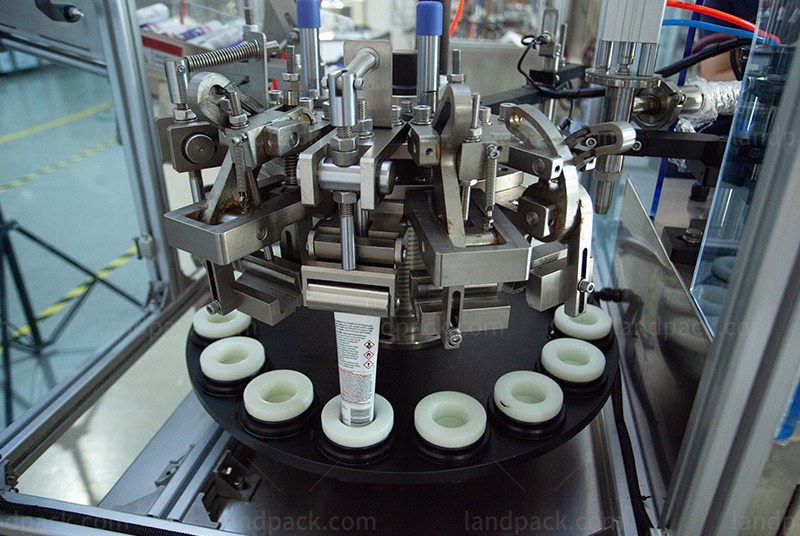

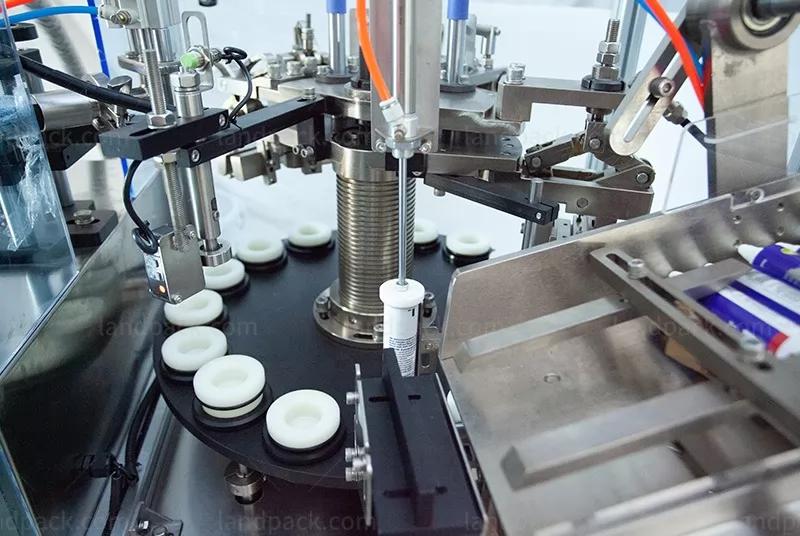

Workflow:
1. Auto tube hopper to feed tubes one by one
2. Fixing tube tightly with a pusher
3. Positioning the tube in the correct direction

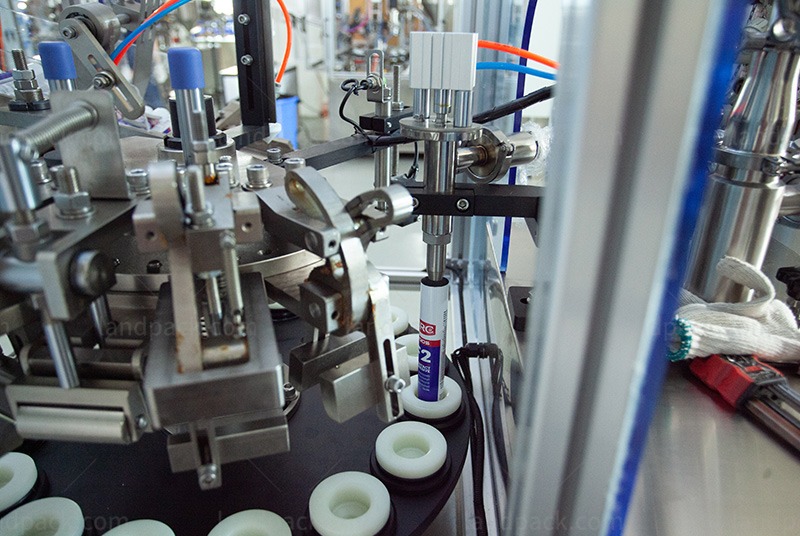

4. Filling by piston pump
5. Pressing & Folding station
6. Coding
7. Outlet
Model | LFF-ZWS-008 |
| Tube material | Aluminum / Metal tube |
| Tube diameter | 10-50 mm |
| Tube length | 25-250 mm (customizable) |
Filling volume | 75 ml/pcs (adjustable) |
| Filling accuracy | ≤±1% |
| Sealing way | Folding |
| Folding times | 2 folds |
| Output | 20-25 bpm |
| Capacity of liquid tank | 30L (the material tank will be removed) |
| Air consumption | 0.55-0.65Mpa |
Motor power | 1.1 KW (220V/50Hz, 110V/60Hz) |
| Machine size | 1230*700*1400 mm |
| Machine weight | 300kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
