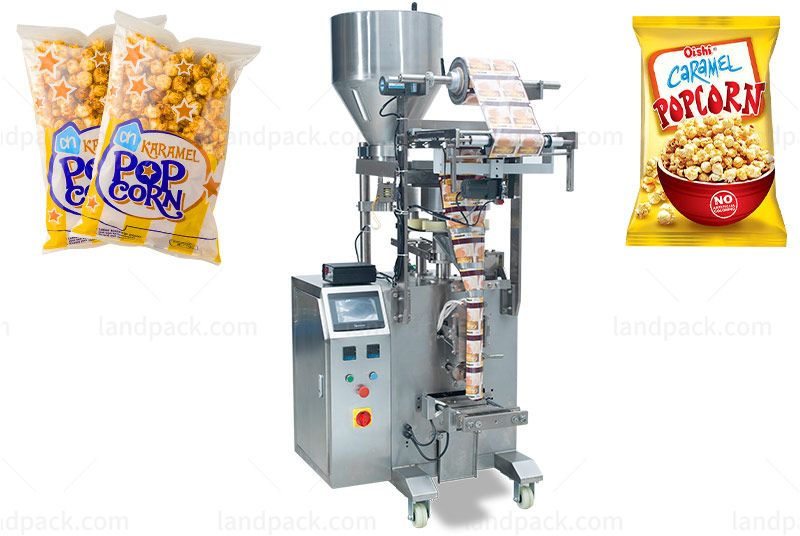

Automatic 20g~500g Popcorn Packing Machine LD-320A/ 380A

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic 20g~500g Popcorn Packing Machine LD-320A/ 380A, it is suitable for packaging of various kinds of puffed food, shrimp bars candies, peanuts, popcorn, rice and such materials in grain or piece.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic 20g~500g Popcorn Packing Machine LD-320A/ 380A

  1. Products dosing, Filling, Laminate heat sealable pouch making and sealing;

  2. Stainless steel 304 structure and surface;

  3. Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;

  4. Simple changing of pouch former, to adapt different pouch size requirement;

  5. Intelligent temperature controlling configuration, ensure the artistic and neat sealing;

  6. Configure with packaging film pre-pulling device, to enable stable pouch making;

  7. easy to change the packaging film.

Model LD-320LD-380
Film width 120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film roll Max.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness 0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)970*680*1950mm1100*800*2150mm
Machine weight About 300kgAbout 450kg

After receiving your inquiry,We will send you the quotation as soon as possible.
