Application:
This automatic packaging machine is suitable for a wide range of granular products across multiple industries, including food, pet food, and hardware. Ideal for packing items such as peanuts, popcorn, pistachios, walnuts, dog food, bird food, cat food, nails, bolts, nuts, buckles, and more. Designed for efficient, accurate, and high-speed performance to meet diverse packaging needs.
Suitable Package:
Back Sealing Bag, Pillow Bag, Gusset Bag, etc
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Big bucket elevator made from food-grade material - safe and easy to clean.
2. High-precision combination weigher ensures accurate and consistent filling.
3. Secondary lifting design - ideal for factories with limited ceiling height.
4. Up to 60 bags per minute - enhance productivity without compromising quality.
5. Efficient and compact structure saves space in restricted production areas.
6. Modular system allows flexible adjustment for various product types.
7. Built for hygiene-sensitive industries like snacks, nuts, and frozen food.
8. Perfect for medium to high-speed packaging lines seeking precision and efficiency.

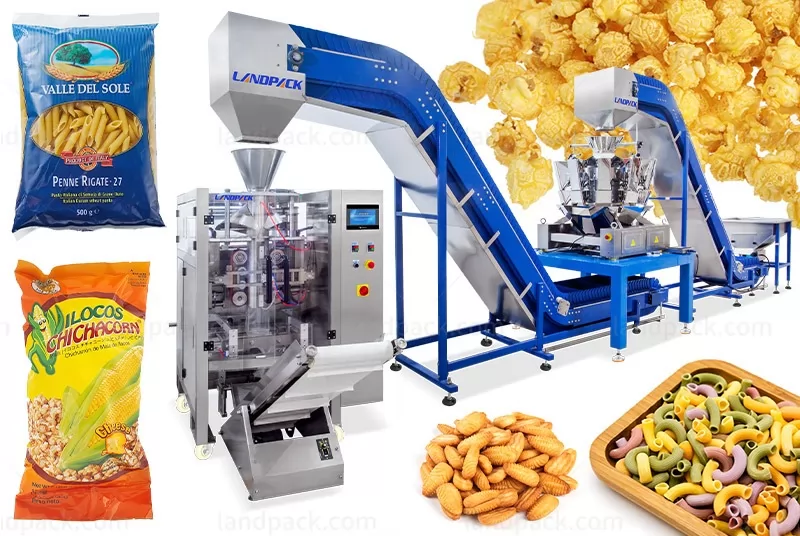

Workflow:

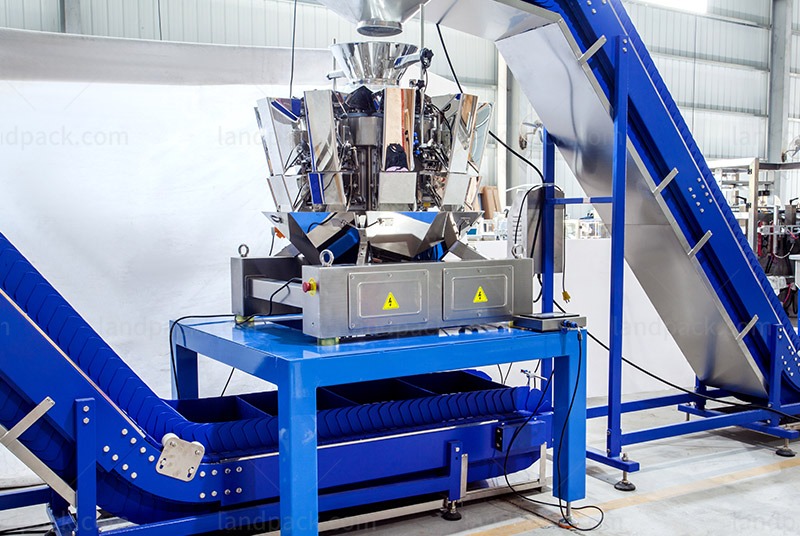

1. Big bucket elevator
2. Multi-head weigher

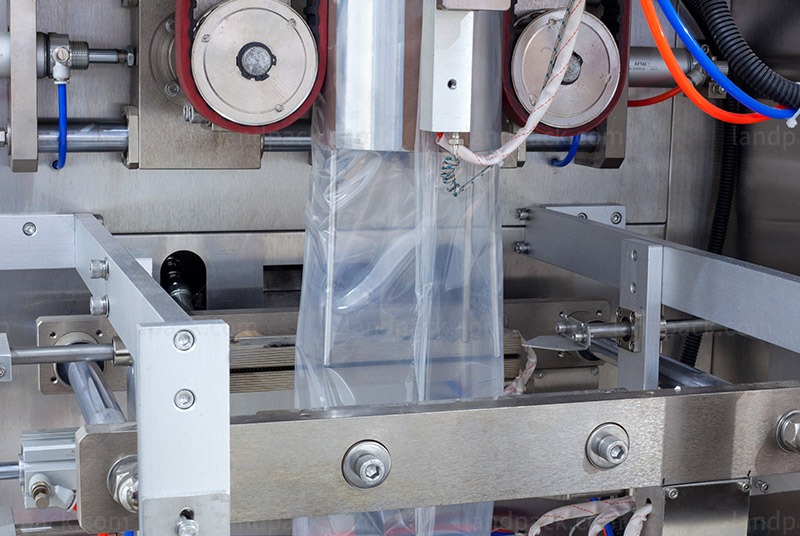

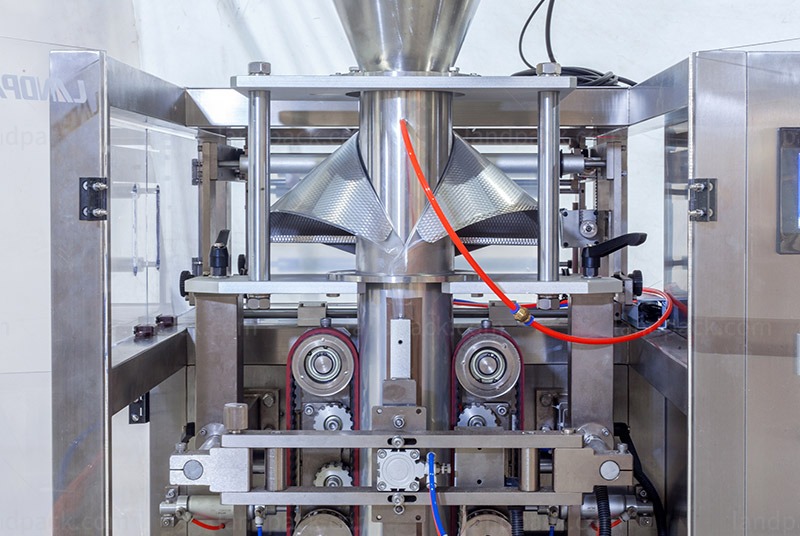

3. 520 Model Back Sealing Vertical Machine
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | 5-20 bags/min | 5-20 bags/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
