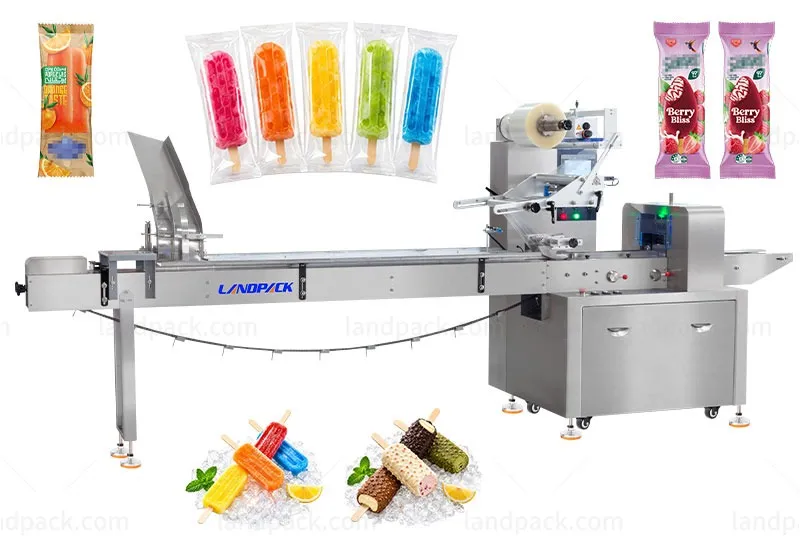

Automatic Popsicle Horizontal Flow Wrapping Machine with Ice Lolly Feeding System

Application:
This popsicle packaging machine wraps ice pops, ice lollies, frozen fruit bars, ice cream sticks, and similar individually packed frozen products. The automatic feeder places each popsicle onto the conveyor, while the photoelectric sensor tracks its position before sealing and cutting. The ice popsicle wrapping machine runs at up to 230 bags/min, depending on product length, feeding spacing, and film size.

Package Type:
The popsicle wrapping machine produces pillow-style flow-wrap bags from roll film. The upper-film feeding structure suits products that need support from the conveyor during wrapping. It works with printed or plain heat-sealable films such as OPP/CPP, BOPP/CPP, PET/PE, and cold-resistant laminated materials.

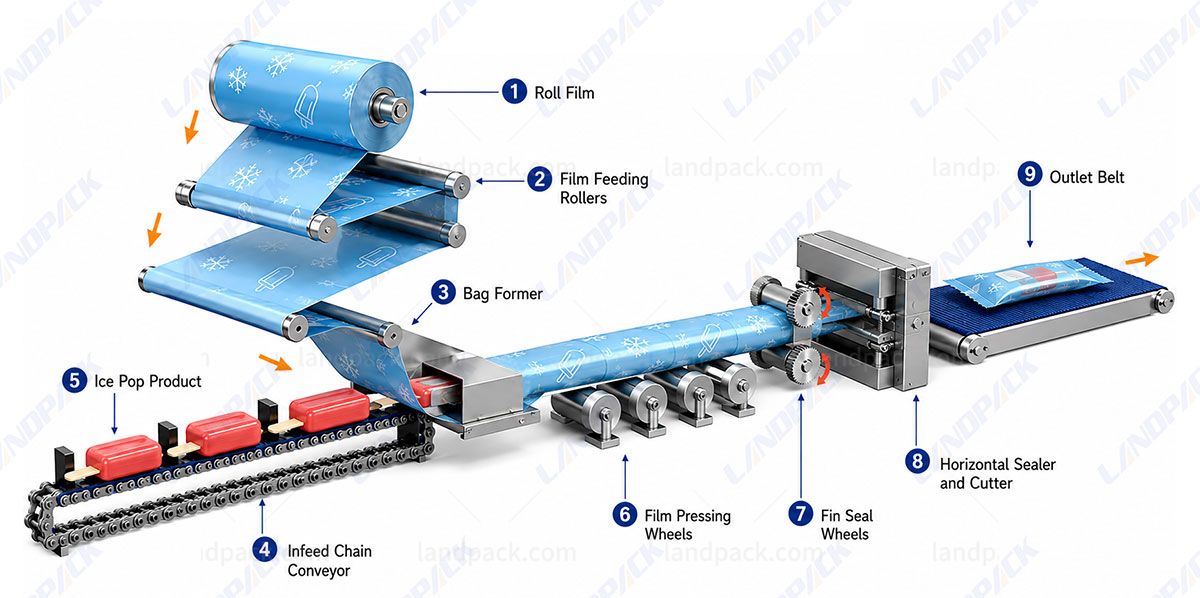

Workflow:
1. Popsicle Feeding, 2. Product Conveying, 3. Position Detection, 4. Ink-Roll Coding, 5. Upper Film Feeding, 6. Bag Forming, 7. Longitudinal Sealing, 8. End Sealing and Cutting, 9. Finished Product Output

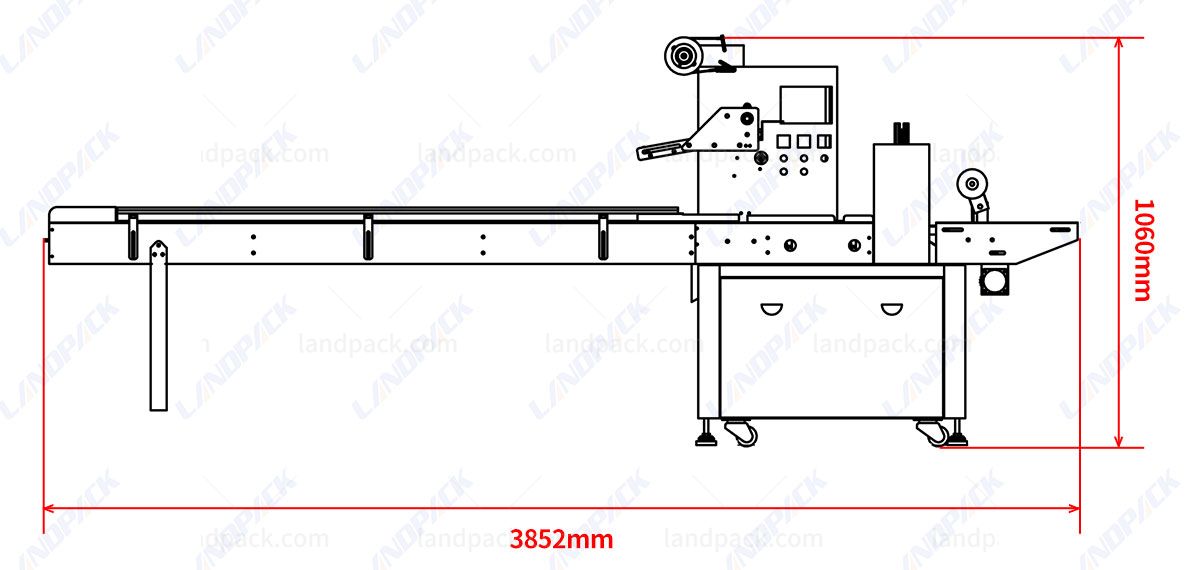

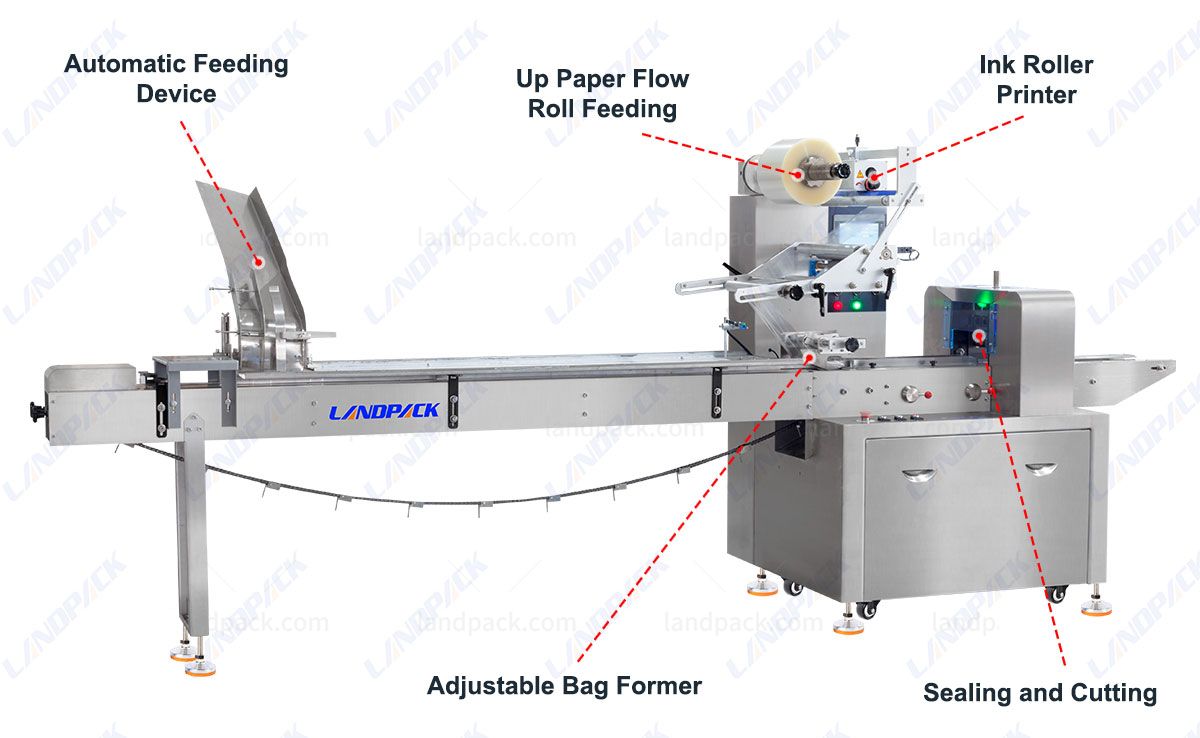

Machine Structures:

Features:

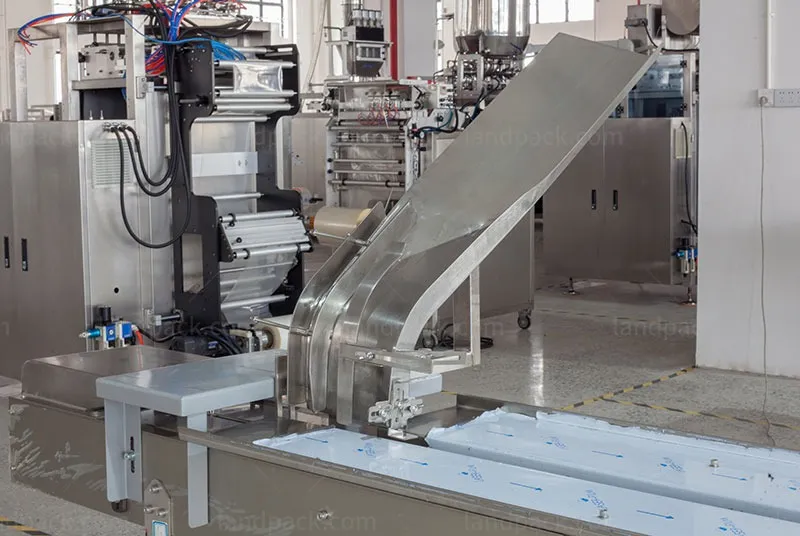

1. Automatic popsicle feeder reduces manual product placement
2. Upper-film flow wrapping structure handles ice lollies and stick-shaped frozen products

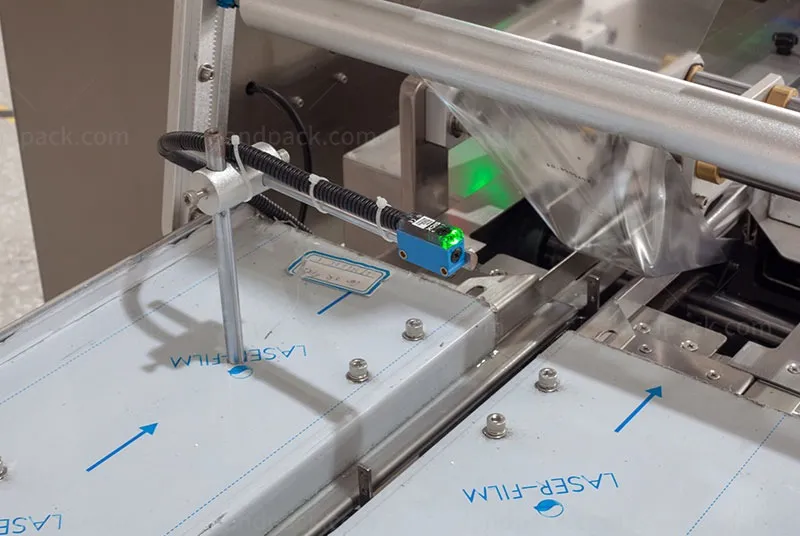

3. Photoelectric sensor detects each product before sealing and cutting
4. No-product, no-bag control pauses film feeding when the conveyor lacks products
5. Accurate product tracking reduces empty bags and incorrect cutting positions
6. Ink-roll printer adds production dates and batch details
7. PLC and touchscreen control conveyor speed, bag length, and sealing settings
8. Adjustable guides handle different popsicle lengths and widths
9. Independent temperature controls match different wrapping films
10. Continuous flow-wrap system completes feeding, coding, forming, sealing, and cutting
11. The machine can connect with cooling conveyors, collection belts, and cartoning equipment
