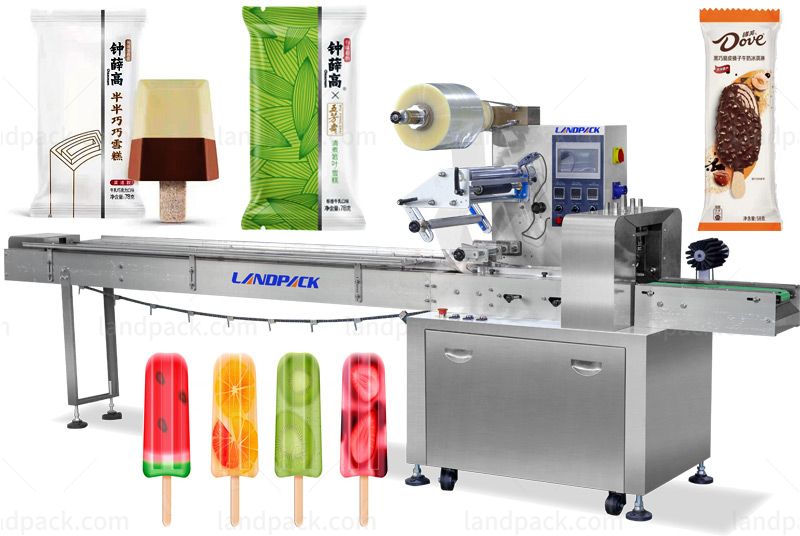

Suitable for the packing of popsicles, ice pop, ice lolly, ice cream, soft, long strips, and loose objects such as towels, paper towels, noodles, egg rolls, sausages, squid, soft candy, biscuits, and fresh fruits etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
The whole package cover is made of 304 stainless steel.
The structural improvement of the transverse seal makes the adjustment of the knife convenient and reasonable.
Improve the structure of the lower clamping and discharging parts, so that the bearing life is extended to 2-3 times and the maintenance is more convenient.
The new structure of the input end of the input machine is extended by 2-3 times compared with other manufacturers and the maintenance is more convenient.
Use a patented electronically tunable bag.
The method of the electromagnetic film is adopted to eradicate the problem of poor film precision caused by unstable air pressure.
|Film width||Max250mm||Max350mm||Max450mm||Max600mm||Max700mm||Max.800 mm||Max.900mm|
|Bag length||65-190mm or120-280mm||65-190mm or120-280mm||150-450mm||160-500mm||180-600 mm||210-650mm||240-700mm|
|Bag width||30-110mm||50-160mm||50-180mm||100-280mm||100-330 mm||120-350mm||150-400mm|
|Product height||Max.40mm||Max.40mm||Max.75mm||Max.110mm||Max.110 mm||Max.130 mm||Max.150mm|
|Film roll diameter||Max.320mm|
|Packaging rate||40-230 bags/min||40-180bags/min||30-150Bags/min||20-150 bags/min||20-130 bags/min||20-120bag/min||20-100 bags/min|
|Machine quality||About 500kg||About 580kg||About650kg||About680kg||About720kg||About800kg||About 850kg|
|Remarks||optional air filling device）/optional angle folding）|
|Film material）||OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film|
After receiving your inquiry,We will send you the quotation as soon as possible.
