Automatic Various Flavors Jelly Ice Lollies Stick Packing Machine Stick Bagging System

  • Application
  • Description
  • Parameter
  • Video

Application:
Automatic multi-lane stick pack liquid packaging stick bagging line is suitable for kinds of liquid products, such as shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, etc.

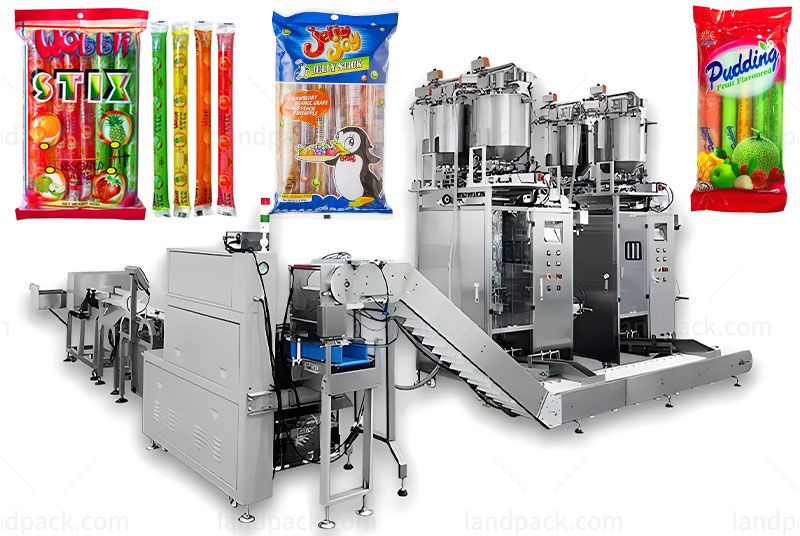

Packaging Line Composition:
This stick packaging and bag-in-bag machine line consists of LD480YL multi-lane stick pack liquid packaging machine, a sorting bag equipment and LD350 vertical filling sealing machine. It can realize stick packed packaging into a bag.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    stick pack filling machine

1. It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, metal detection, weight detection, and other functions.

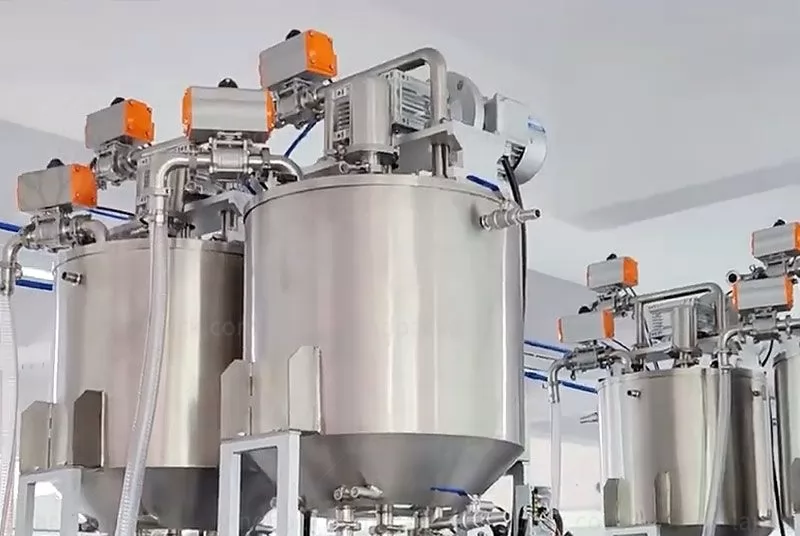

2. Multiple barrels and piston pump metering devices can achieve high-precision metering of jelly of various flavors.

3. The heat-generating parts and moving parts are hidden in the protective cover.

4. The contact part of the box and material is made of stainless steel, which meets the requirements of medicines and food production.

5. The equipment is equipped with casters for easy handling and movement.

6. Automatic alarm protection, saving materials, and no wasting film.

Model
LD480YL
LD350
Lane number
4-8
/
Filling Method
Piston pump
/
Capacity
15-40 cycles/min
40-230 bags/min
Sachet size
L: 120-400mm, W: 35-60mm
L: 120-280mm, W: 50-160mm
Film width & Thickness
Max.480mm; 0.05-0.1mm
Max.350mm
Sealing type
4 side sealing
Pillow
Cutting type
Straight cutting
Zig zag cutting
Air & Power
0.8MPA, 0.8m³/min
2.6KW
Dimension & weight
1555*1686*2400mm; 800kg
420*745*1450mm; 900kg

After receiving your inquiry,We will send you the quotation as soon as possible.
