Application:

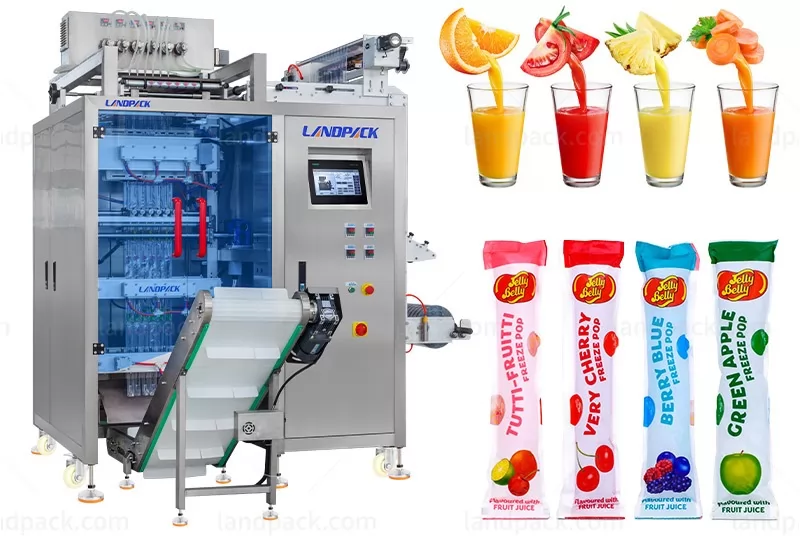

This high-speed 6-lane liquid packaging machine is ideal for manufacturers in:
Food & Beverage: Jelly, honey, sauces, syrups, condiments
Cosmetics: Shampoo, conditioner, lotions
Pharmaceuticals: Oral liquid, herbal extract
Daily Chemicals: Liquid detergent, liquid hand wash
Suitable for 3/4 side sealing sachet packing, depending on customization.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
High-Speed Performance: Multi-lane operation with 6 individual packing lanes for simultaneous, high-efficiency production at 120–150 sachets per minute.
Versatile Product Compatibility: Capable of packing a wide range of low-viscosity liquids: jelly, honey, shampoo, sauce, oral liquids, and more.

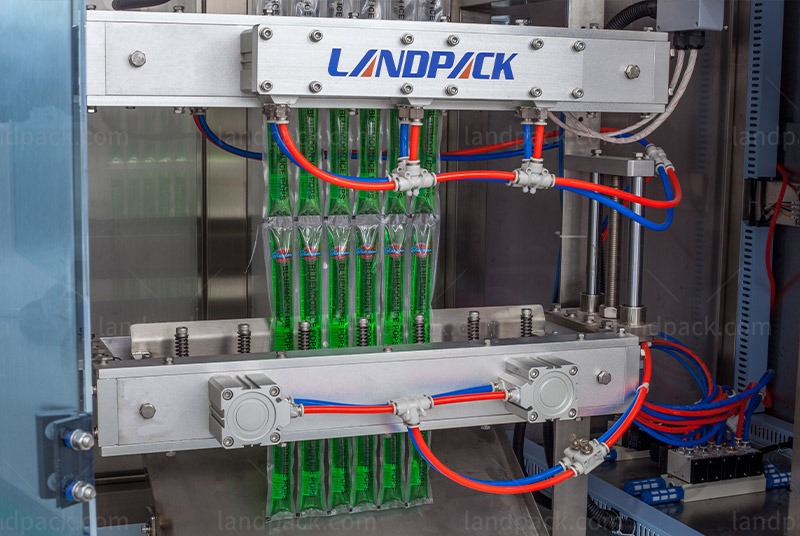

Precision Magnetic Pump Filling: Hygienic and space-saving magnetic pump system ensures clean, accurate filling with minimal waste.
Servo Motor Driven System: Sealing and bag forming are precisely controlled by servo motors, enhancing speed and product consistency.
User-Friendly Interface: Equipped with Siemens PLC and touch screen, making operation simple and intuitive with real-time monitoring.

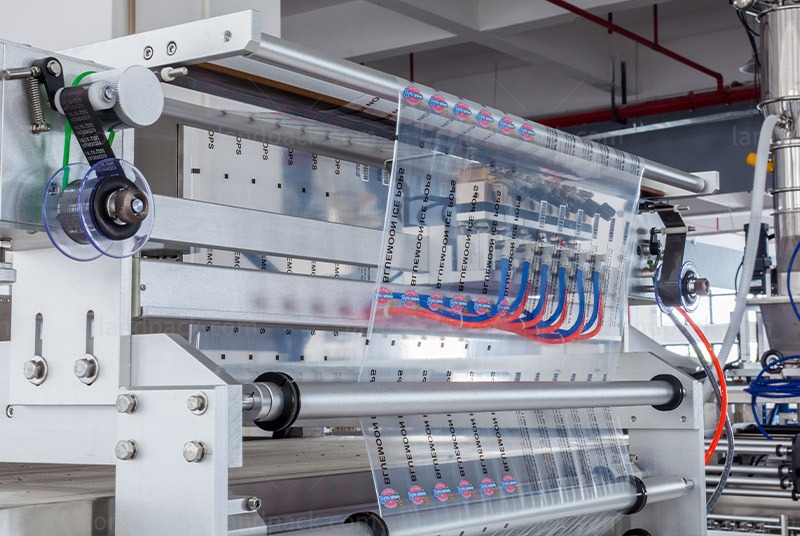

Flexible Film Compatibility: Handles various film types such as PET/PE, OPP/PE, NY/PE, etc. with efficient roll-film feeding and bag-making.
Compact & Integrated Design: All-in-one structure with film feeding, date coding, filling, sealing, and cutting, ideal for space-limited production floors.
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
