High Speed Powder Bottle Filling Machine Line with Aluminum Foil Sealing and Vision Detection

Application:
It can be used in food, spice, beverage, nutritional supplement, baking ingredient and daily-use powder production lines where automatic bottle sorting, auger dosing, weight inspection, metal detection, capping, aluminum foil sealing, visual detection and labeling are required. Such as chili powder, turmeric powder, curry powder, coffee powder, cocoa powder, matcha powder, milk powder, coffee creamer, protein powder, collagen powder, electrolyte powder, meal replacement powder, baking powder, starch powder, soup powder, cheese powder, talcum powder and cleaning powder.

Package Type:
Suitable for rigid plastic bottles and jars with screw caps and aluminum foil liners, including compatible round and square containers.

Workflow:

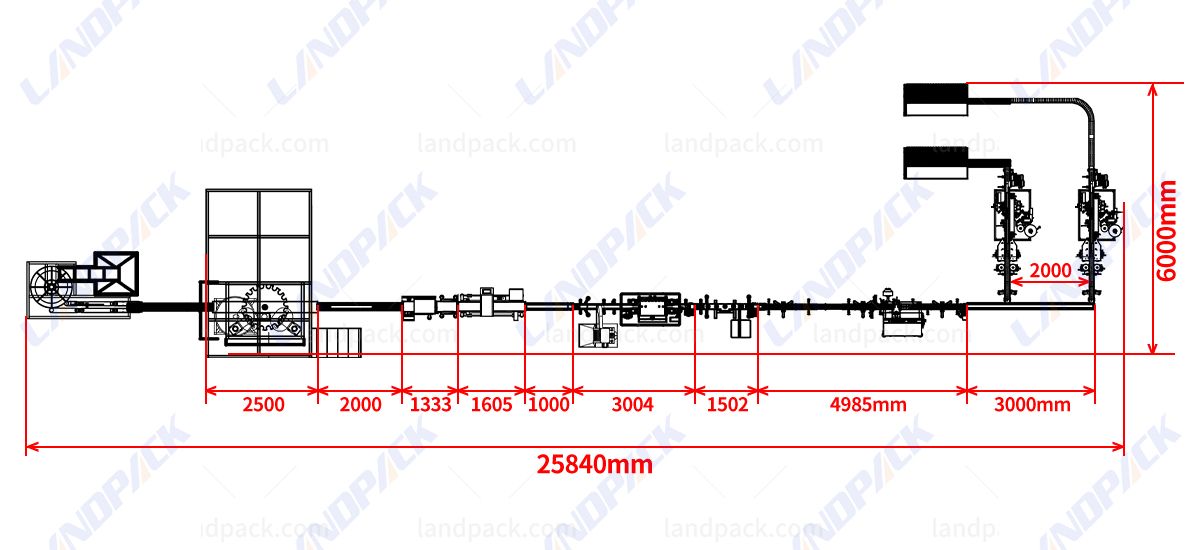

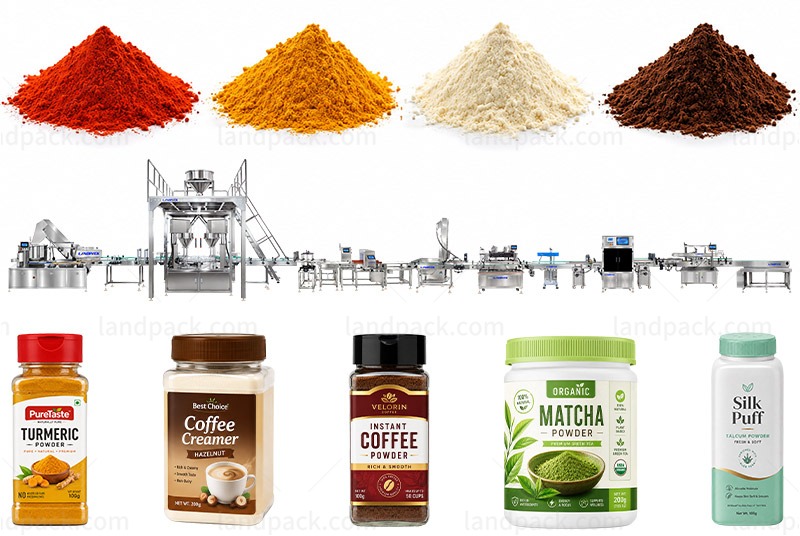

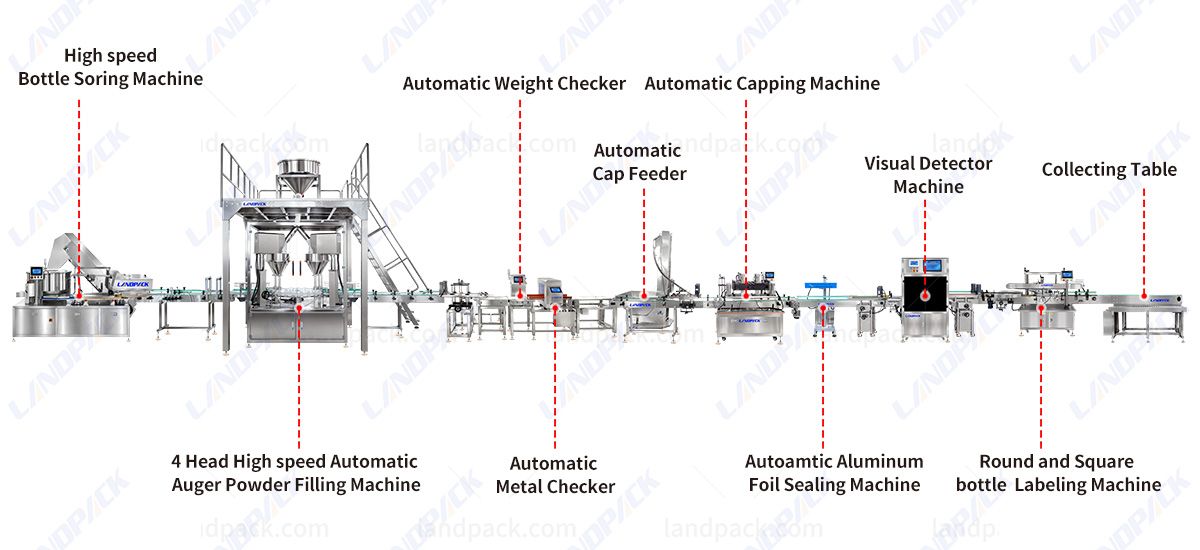

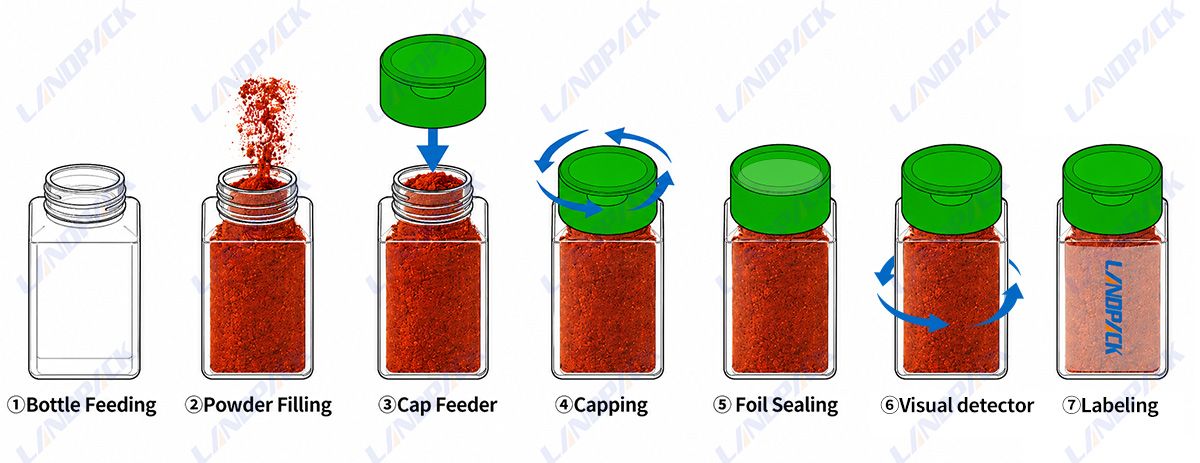

Bottle Loading → Automatic Bottle Unscrambling → Powder Feeding → Dual-Head Dual-Lane Rotary Auger Filling → Checkweighing → Metal Detection → Automatic Cap Feeding → Capping → Aluminum Foil Sealing → Vision Detection & Bottle Orientation → Four-Side Labeling → Finished Bottle Collection

Machine Key Components:

Features:

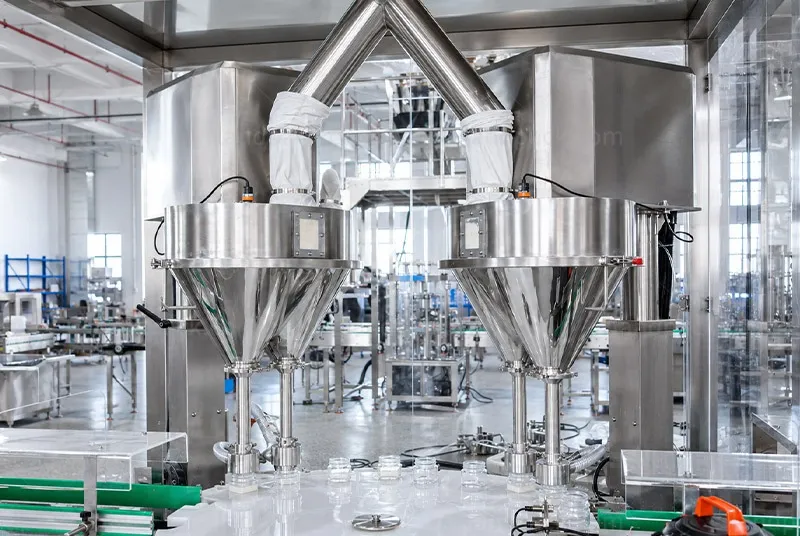

1. Dual-head dual-lane rotary auger filling system supports continuous powder dosing and higher production output for bottle filling applications.
2. Photoelectric bottle detection enables no-bottle-no-filling operation to reduce powder loss during continuous production.
3. Leak-resistant filling nozzles and dust extraction around the filling station help reduce powder leakage and airborne dust.
4. Automatic checkweigher and metal detector inspect filled bottles before the downstream capping and sealing process.
5. Automatic cap elevator and cap feeding system continuously supply caps to the high-speed capping machine and reduce manual cap handling.

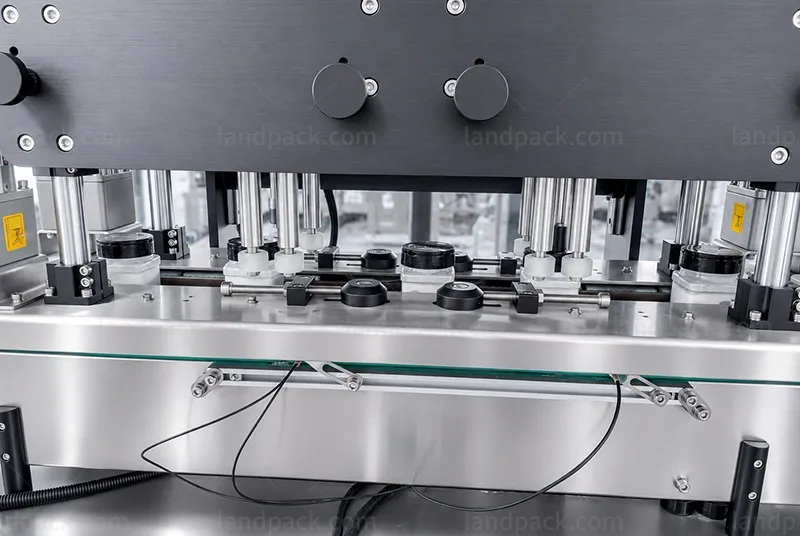

6. Adjustable linear capping system can accommodate different compatible bottle sizes without replacing bottle-specific molds for every changeover.
7. Aluminum foil sealing machine provides an additional sealed barrier inside the cap for compatible bottle and foil-liner combinations.
8. Camera-based vision detection recognizes bottle orientation and keeps containers correctly positioned before the labeling process.

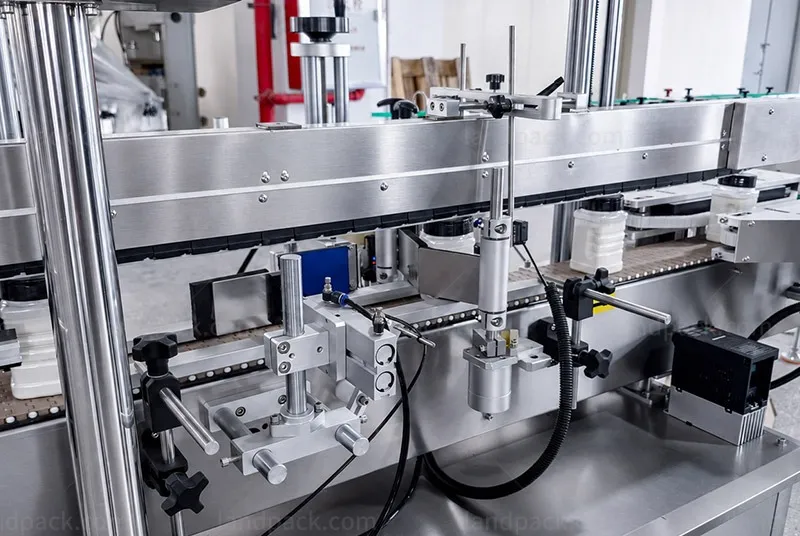

9. Four-side wrap-around labeling system supports square bottle labeling and can be configured according to different bottle and label dimensions.
10. Stainless-steel machine frames and integrated conveyors connect bottle sorting, filling, inspection, sealing and labeling into one continuous production line.
