Automatic Powder Pouch Packing Machine Multi-Head Linear Weigher Filling Sealing Machine

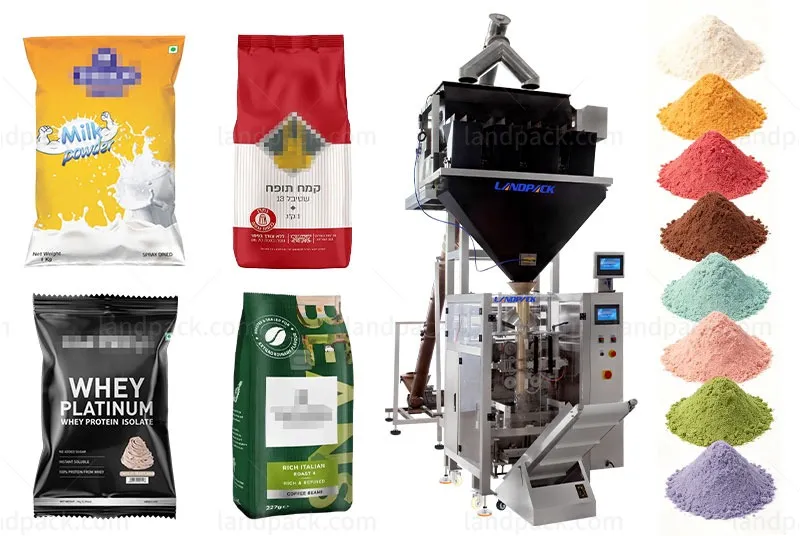

Application:
This automatic powder packing machine packs soybean powder, almond powder, grain powder, cereal powder, baking mixes, nutrition powder, and similar products. The screw feeder supplies powder to the 4-head twin-screw linear weigher, while Teflon-coated contact surfaces reduce powder buildup during weighing. The powder packaging machine then forms, fills, gussets, seals, and cuts each bag at up to 60 bags/min, depending on filling weight and powder flow

Package Type:
The powder pouch packing machine produces back-seal gusset bags from roll film. The side gussets give larger powder packs more internal space and a fuller bag shape. It works with printed or plain laminated films such as PET/PE, PET/AL/PE, BOPP/PE, and other heat-sealable materials.

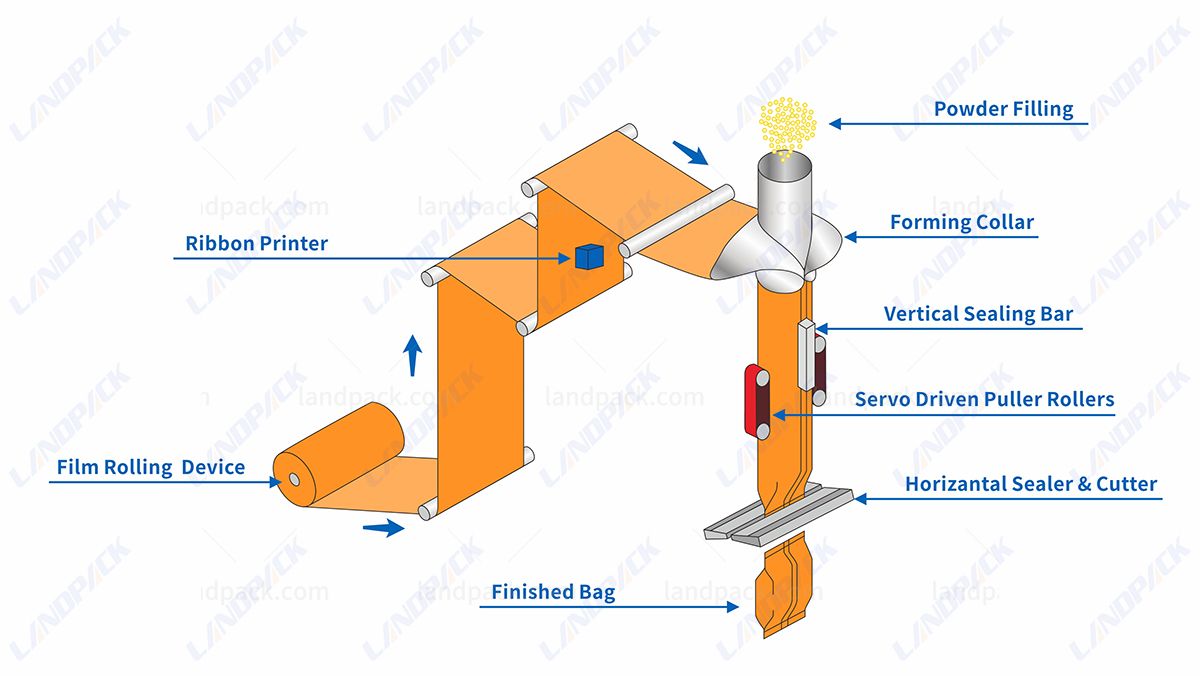

Workflow:
1. Screw Feeding, 2. 4-Head Screw Weighing, 3. Roll Film Feeding, 4. Bag Forming, 5. Powder Filling, 6. Gusset Forming, 7. Back Sealing, 8. End Sealing and Cutting, 9. Finished Bag Output

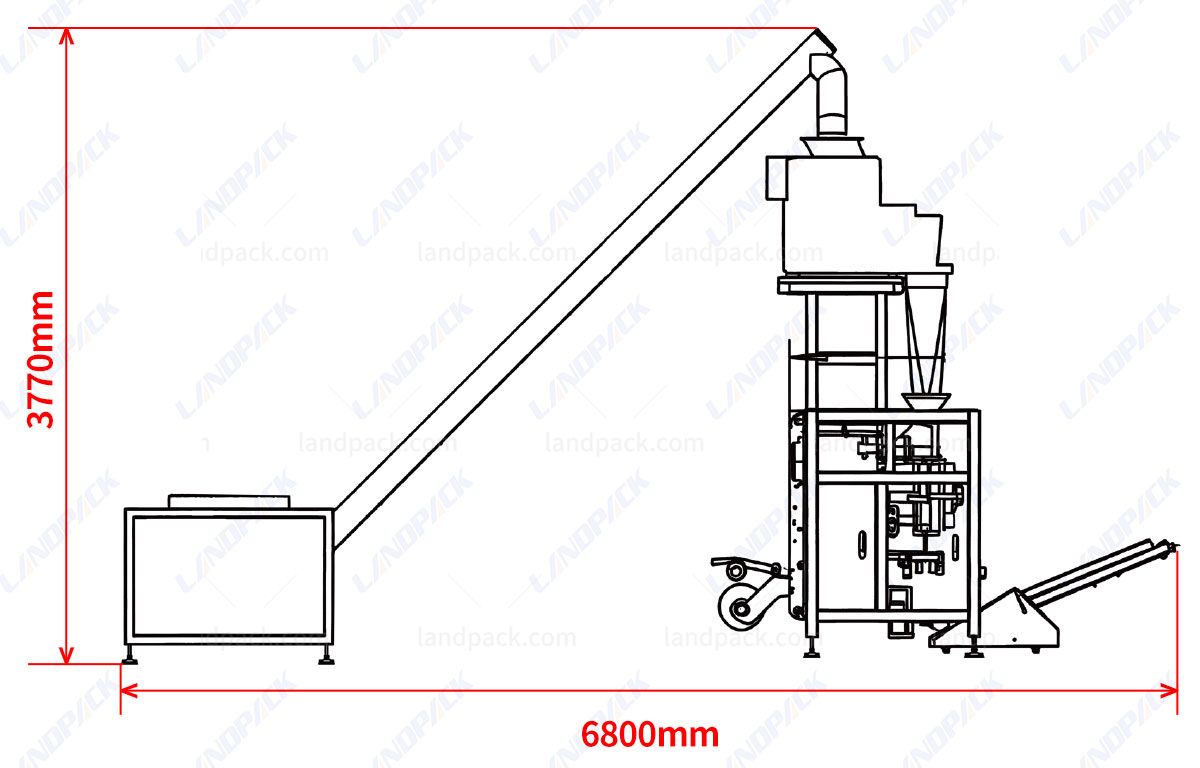

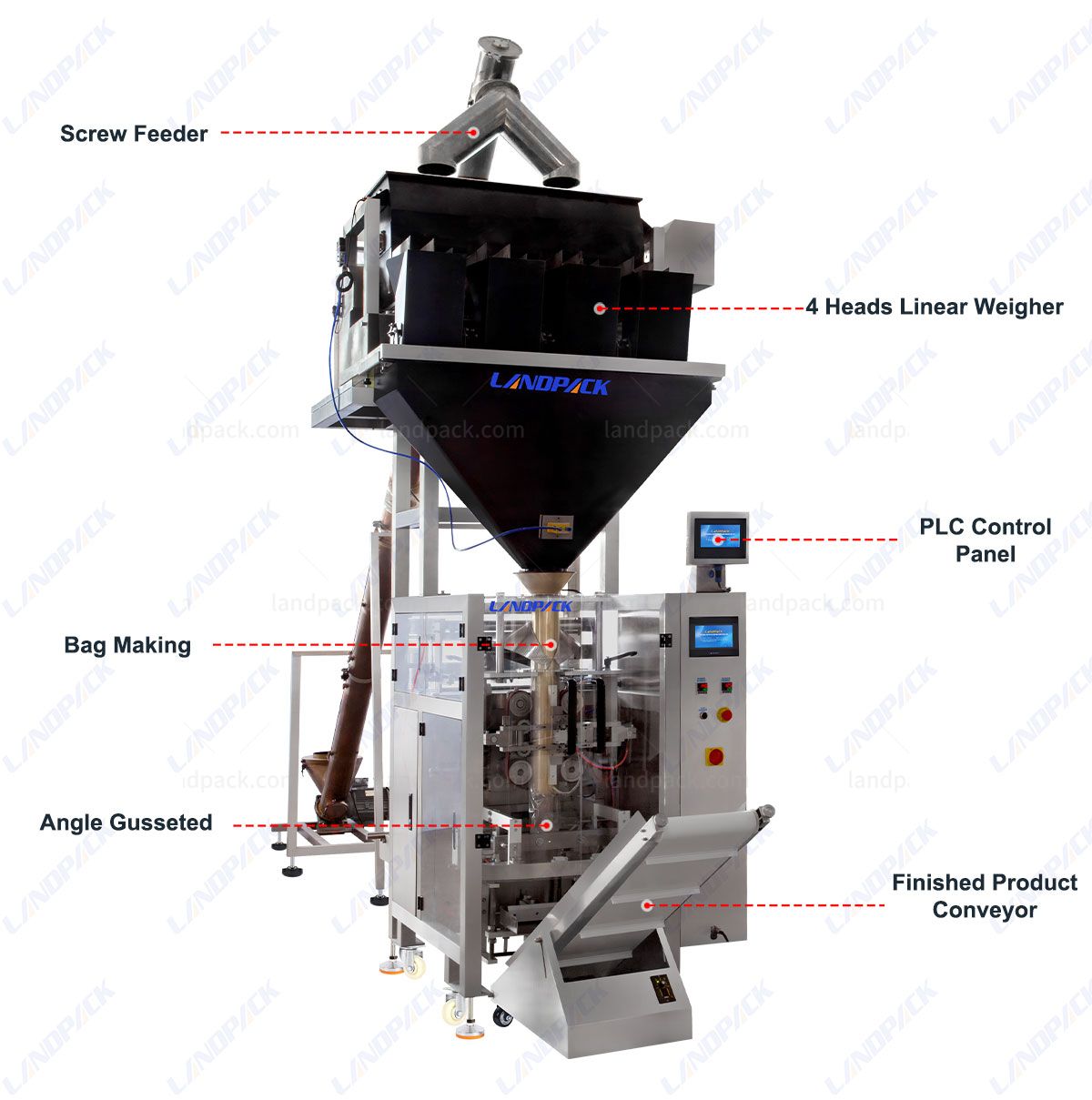

Machine Structure Overview:

Feature:
1. Open-cover screw conveyor gives easier access during product changes and cleaning

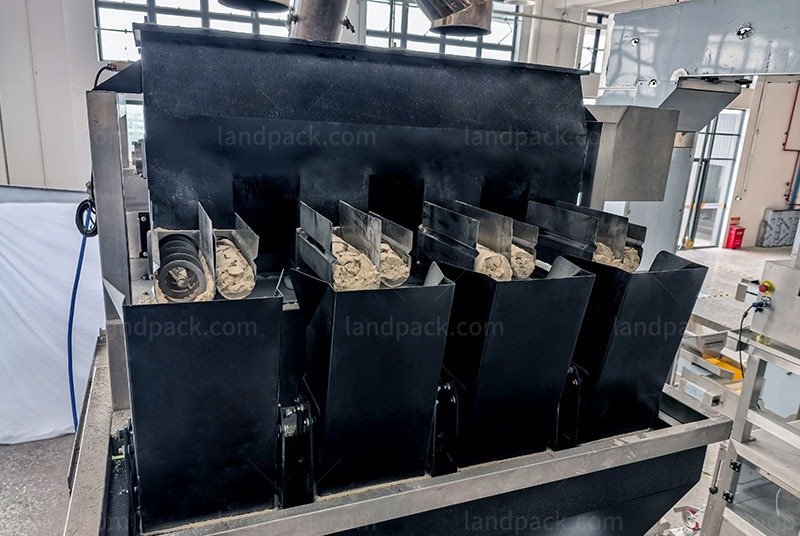

2. 4-head twin-screw linear weigher handles powders that do not flow well through standard linear scales
3. Separate screw channels control the feeding quantity for each weighing head
4. Teflon-coated product-contact surfaces reduce soybean and almond powder sticking
5. Reduced powder buildup helps the weighing system maintain consistent dosing
6. Roll-film system forms and fills bags without premade pouch feeding

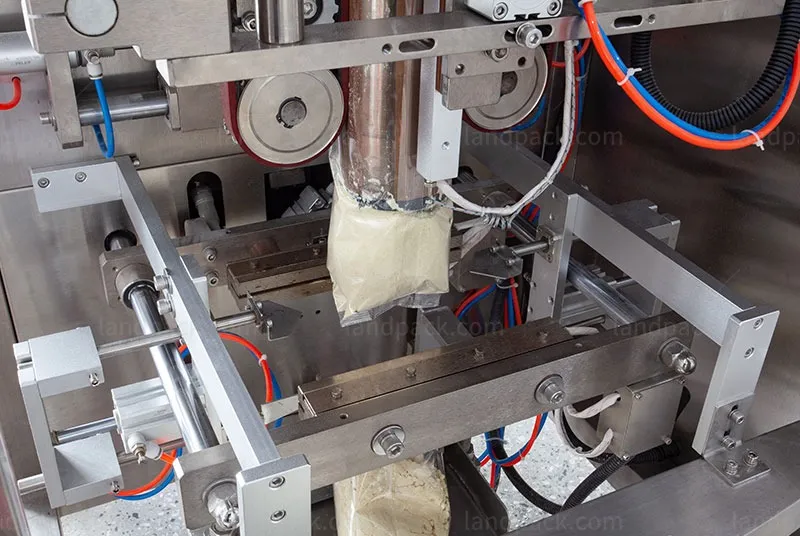

7. Gusset-forming unit makes fuller back-seal bags for medium and larger powder packs
8. Servo film control keeps bag length and film movement aligned
9. Adjustable sealing temperature matches different laminated films
10. Operators can change filling weight, bag length, speed, and sealing settings through the control panel
