High Speed Multilane Powder Bagging And Cartoning Packaging Line System

  • Application
  • Description
  • Parameter
  • Video

Application:
High speed multilane bagging and cartoning packaging line system suitable for the automatic filling of various powder products, such as milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Packaging Line Composition:

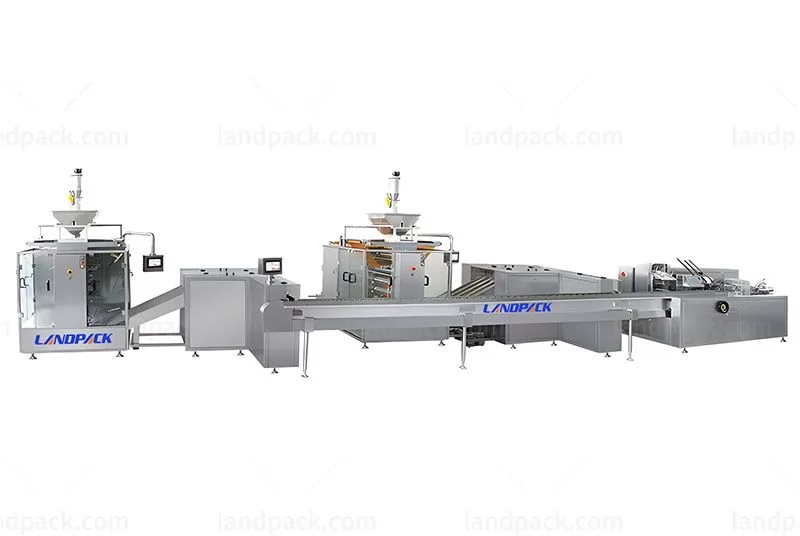

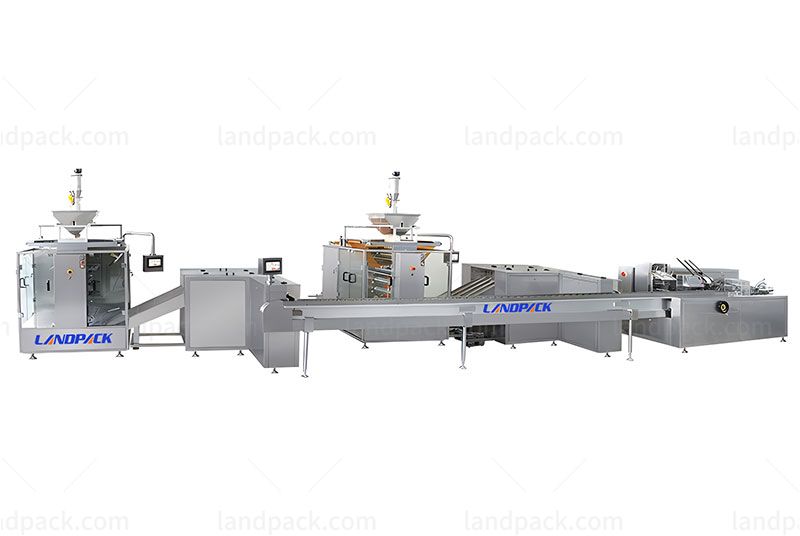

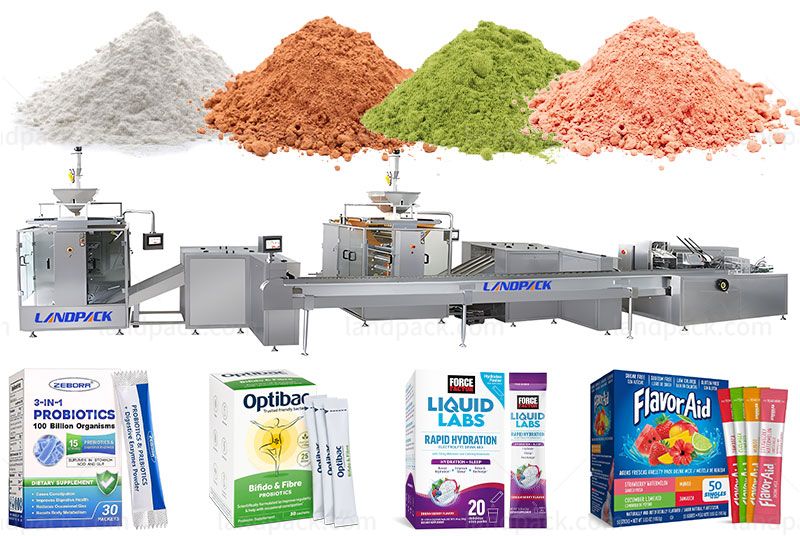

This stick packaging machine line consists of LD-480Y-2 multi-lane stick pack fine granule and powder packaging machine, small bag sorting conveyor, electronic weighing machine, weight sorting scale, and cartoning machine. It can realize stick packed packaging into boxes.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    powder stick packing machine

1. It is suitable for automatic connection and boxing of 3/4 side sealing bags or stick packs. Online can complete automatic vacuum feeding, bag making, filling, batch numbering, cutting and tearing, bag-shaped punching, bag picking arrangement and transmission, single bag weighing, missing and less filling removal, automatic counting of finished bags, stacking and transferring, manual-folding, carton forming, finished product bag boxing, batch number imprinting, carton packaging, waste rejection, finished product output, product counting, etc. can be automatically completed.

2. Adopt brand PLC control, and automatic counting, to ensure the stable work of the machine and easy maintenance.

3. The main components with stainless steel, and corrosion resistance, to adapt to the different environments of the workshop.

4. The machine adopts a module structure design to meet the customized needs of customers.

5. To control accuracy and convenient adjustment, the main parts are controlled by servo motors.

Multilane Packing Machine
ModelLD-480Y-2
Pouch Length50-120 (adjustable)
Pouch Width50-105 mm
Packing Speed60 time/min(depend by pouch size & material)
Filling Capacity0.5-50ml
Application FilmPET/ AL /PE, PET/PE, NY/AL/PE, NY/PE
Max Film Width900mm
Max Film Diameterφ300mm
Film Core Diameterφ75mm
Electric Source380v, 50hz (do as customer's request)
Total Powder15kw
Overall Dimension2200*1700*2250mm(L*W*H)
Machine Weight1500 kg
Packaging size1650*1500*2200mm(L*W*H)
Cartoning Machine Parameters
Encasing Speed30-100 cartons/min
Carton - Quality Requirement250-350 g/m³ (Base on sachet or pouch size)
Carton - Dimension Range (L*W*H)(70-180)mm*(35*120)mm*(14-50)mm
Leaflet - Quality Requirement60-70 g/㎡
Leaflet - Unfolded leaflet specification(80-250)mm*(90-170)mm
Leaflet - Fold range1-4 fold
Compressed air - Working pressure≥0.6Mpa
Compressed air - Air consumption200-240 L/min
Power supply220V, 50Hz
Motor supply1.1 KW
Machine dimension (L*W*H)3100*1100*1550mm
Machine weightabout 1400kg

After receiving your inquiry,We will send you the quotation as soon as possible.
