Automatic Powder Packing Machine 100g-5kg VFFS Pouch Packaging Machine

Application:

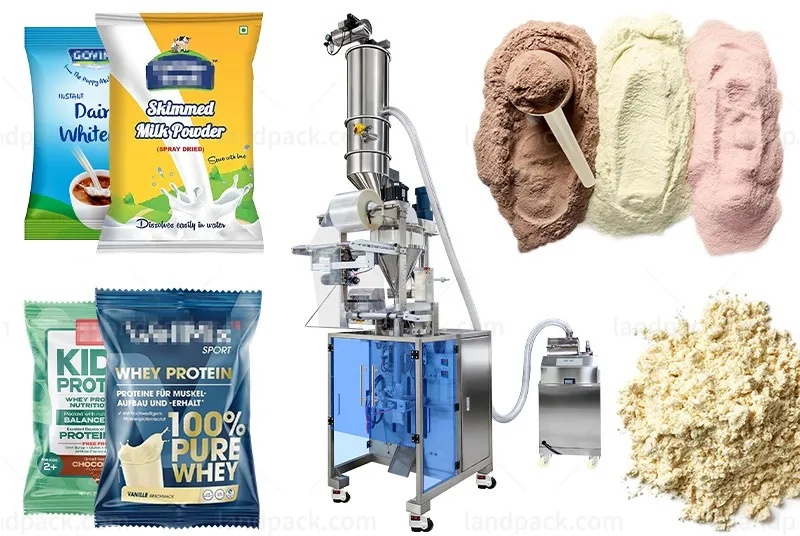

It can be used in food, beverage, agricultural and daily chemical production lines where automatic powder feeding, auger dosing, bag forming, coding, sealing and cutting are required. Such as wheat flour, corn flour, rice flour, starch, baking powder, cocoa powder, coffee powder, milk tea powder, protein powder, nutrition powder, spice powder, chili powder, pepper powder, soup powder, detergent powder, cleaning powder, cosmetic powder and feed additive powder.

Package Type:
Suitable for laminated roll film formed into back-seal pillow bags for powder products.

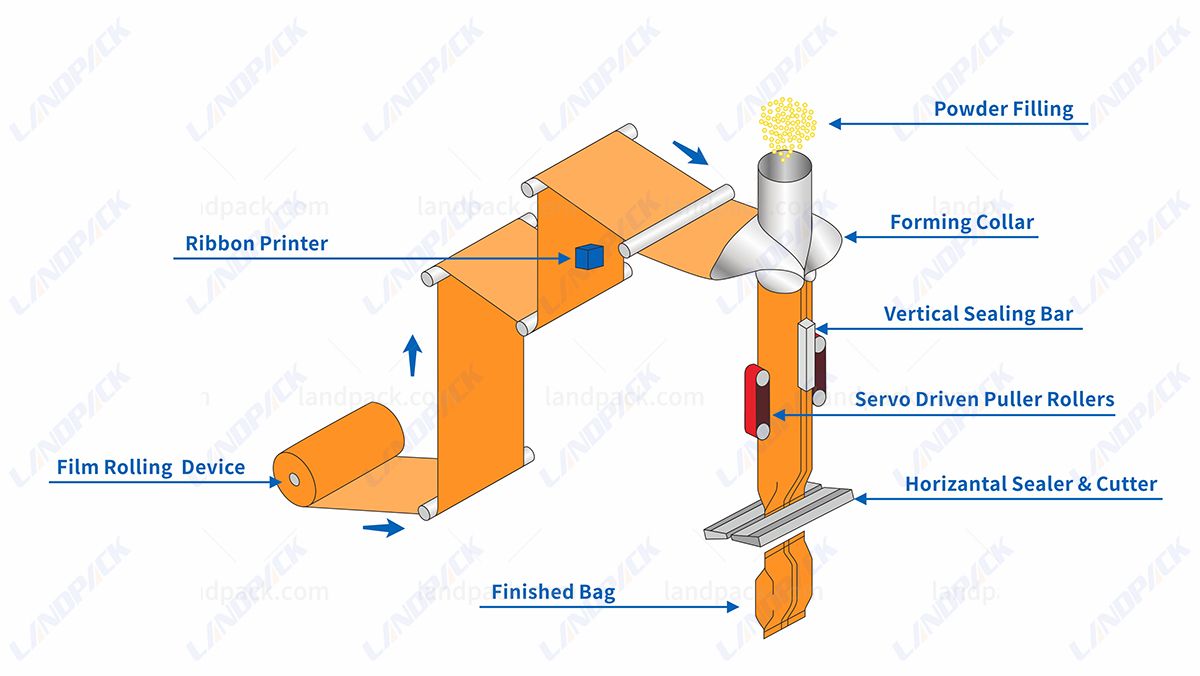

Workflow:
Powder Feeding → Vacuum Transfer → Auger Measuring and Filling → Film Unwinding → Ribbon Coding → Bag Forming → Vertical Sealing → Clamp Film Pulling → Horizontal Sealing and Cutting → Finished Bag Output

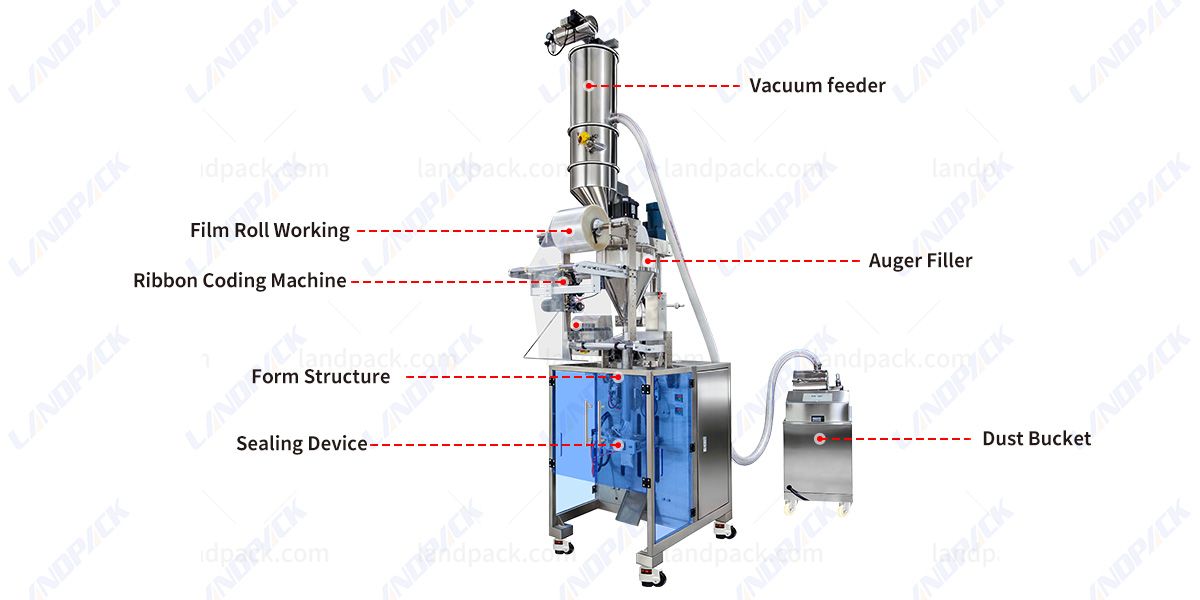

Machine Structure Overview:
1. Vacuum Feeder  2. Film Roll Working  3. Auger Filler  4. Ribbon Coding Machine  5. Form Structure  6. Sealing Device  7. Dust Bucket

Feature:
1. The 15 L auger filling system supports adjustable dosing for fine powder and free-flowing powder products.
2. The vacuum feeder transfers powder automatically into the filling hopper to reduce manual feeding during continuous production.

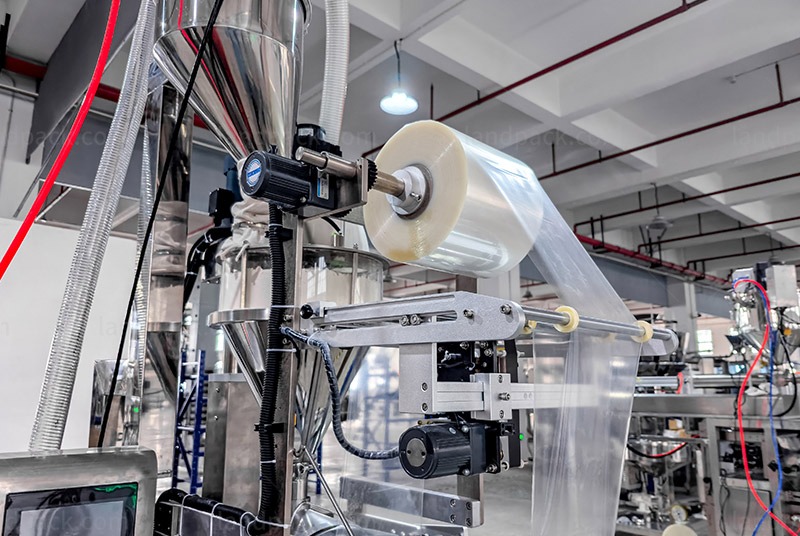

3. The clamp-pulling film structure guides the roll film through bag forming, pulling, sealing and cutting steps.

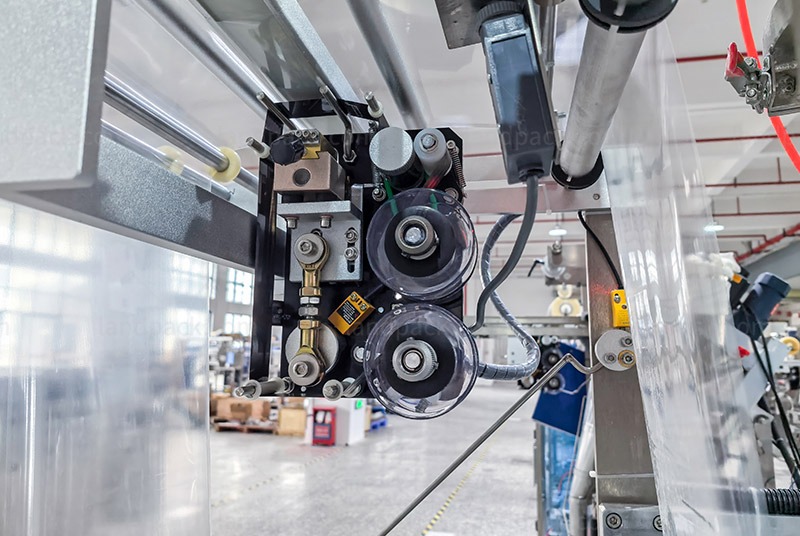

4. The ribbon coding machine can print production dates, batch numbers and other basic information on the packaging film.
5. The dust collection unit helps collect airborne powder generated during filling and keeps the working area cleaner.

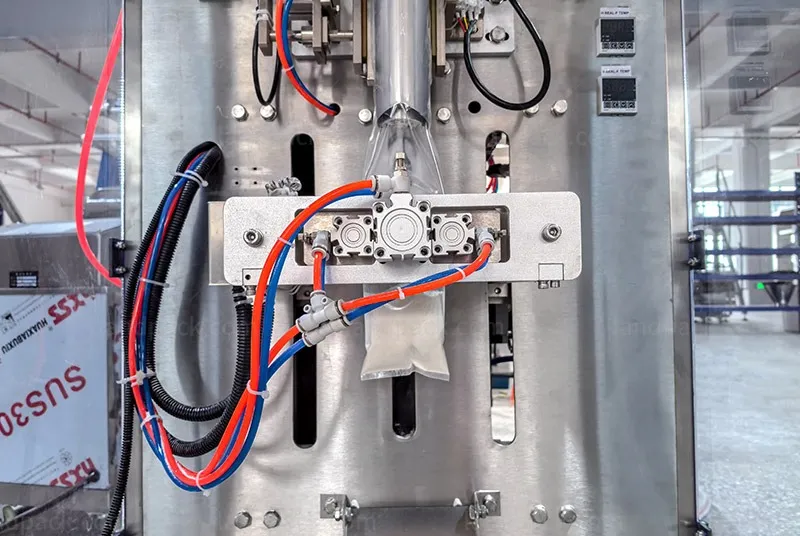

6. The vertical sealing device and horizontal sealing cutter complete back sealing, top sealing, bottom sealing and bag cutting automatically.
7. The compact machine structure is suitable for workshops that require an integrated powder feeding, filling and bagging solution.
