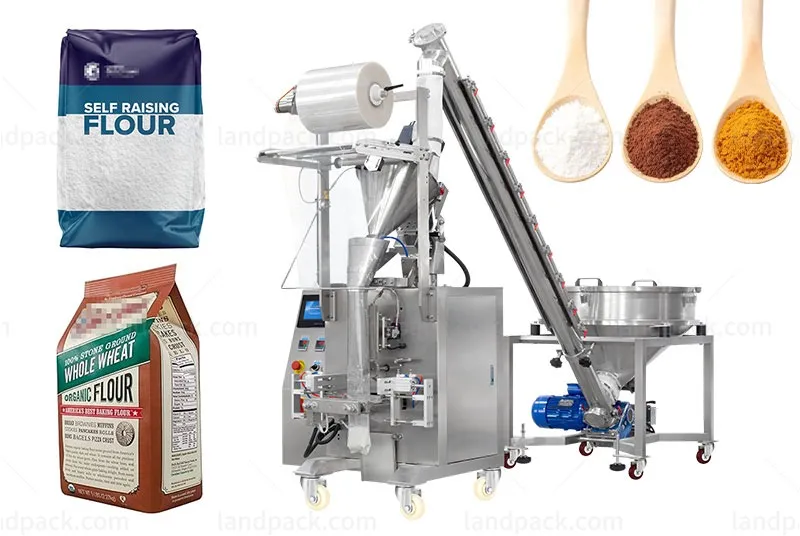

Automatic Powder Packing Machine with Screw Elevator LD320

Application:
It can be used in food, beverage, baking ingredient, seasoning and daily chemical production lines where automatic powder feeding, auger dosing, bag forming and sealing are required. Such as flour, rice powder, corn powder, cereal powder, oat powder, milk powder, coffee powder, cocoa powder, milk tea powder, soy milk powder, protein powder, seasoning powder, spice powder, chili powder, curry powder, baking powder, detergent powder and cleaning powder.

Package Type:
Suitable for laminated roll film formed into back-seal gusset bags for powder products.

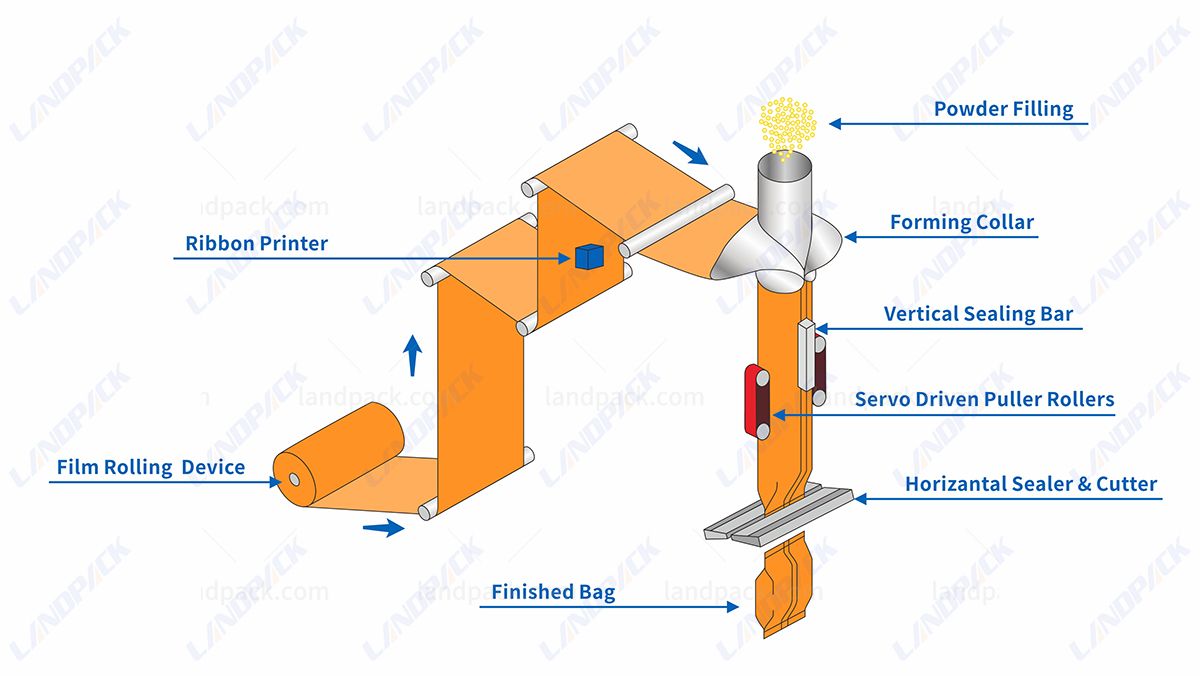

Workflow:
Powder Loading → Screw Feeding → Film Unwinding → Bag Forming → Gusset Forming → Powder Filling → Vertical Sealing → Finished Bag Output

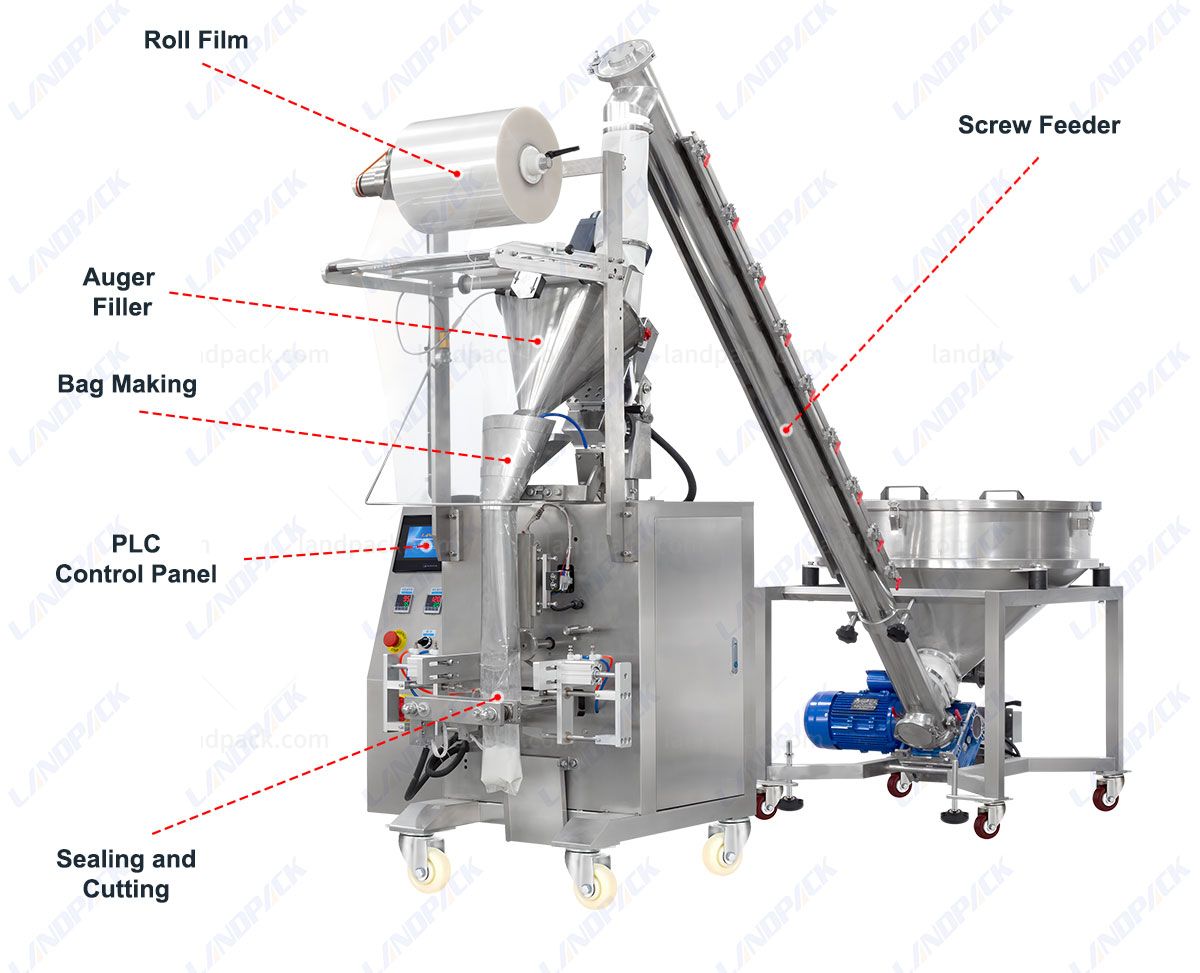

Machine Structure Overview:
1. Roll Film  2. Screw Feeder  3. Auger Filler  4. Bag Making  5. PLC Control Panel  6. Sealing and Cutting

Feature:

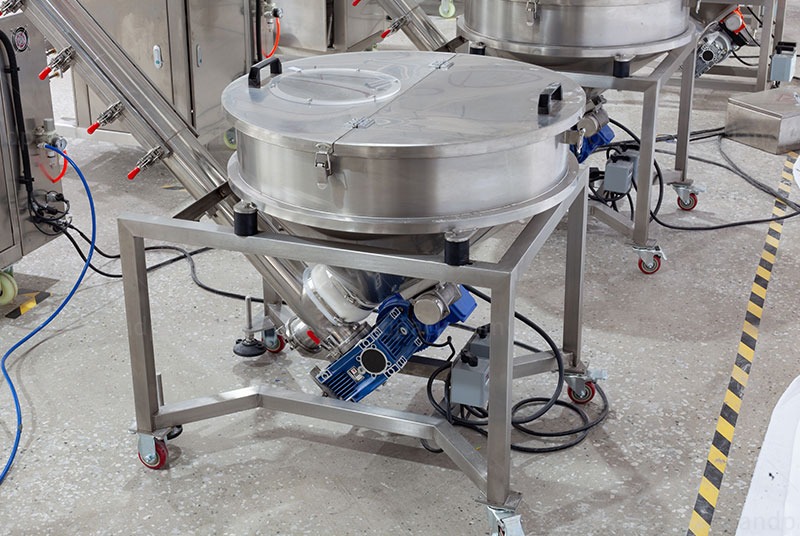

1. The screw feeder transfers powder automatically into the auger filling system for continuous production.
2. The auger filler supports volumetric dosing for flour, milk powder, seasoning powder and other fine powder products.
3. The vertical bag-making system forms packages directly from roll film, reducing the need for premade bags.
4. The gusset-forming structure creates side folds on the finished bags for a fuller package shape and improved shelf presentation.
5. The PLC control panel allows operators to adjust filling volume, bag length, sealing temperature and production settings from one interface.

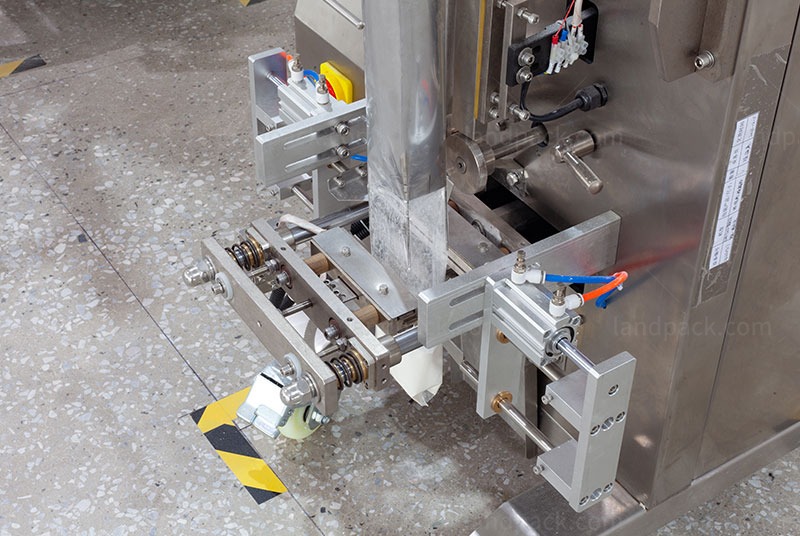

6. Vertical sealing, horizontal sealing and cutting are completed automatically after powder filling.
7. A ribbon printer or date coding device can be added according to production requirements.
8. The machine can be connected with additional conveyors, finished-bag collection devices or inspection equipment when required.
