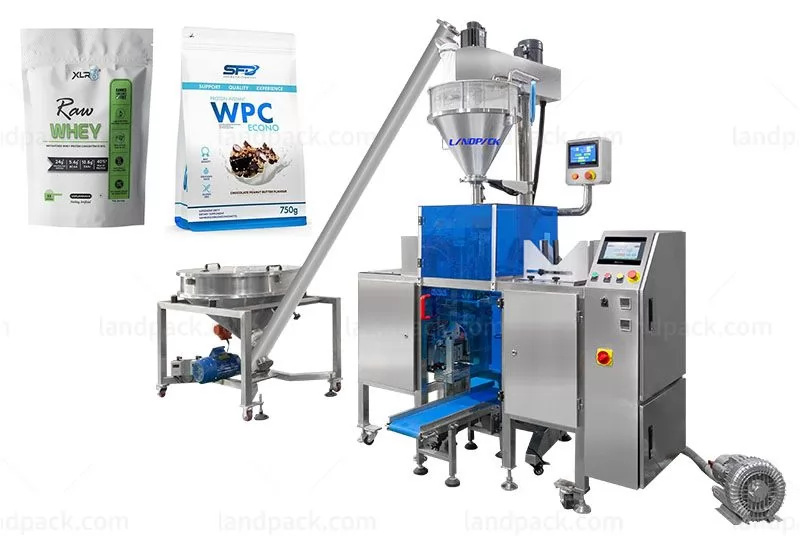

Automatic Protein Powder Doypack Filling Machine For Premade Pouch

  • Application
  • Description
  • Parameter
  • Video

Application:

It is suitable for packing for powder: protein powder,premium whey powder, coffee powder, milk powder, chilli powder, dandelion powder, tea powder, spice powder, pesticide powder, veterinary drug powder, traditional Chinese medicine powder, flour, feed additives, and other powders.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:新应用图.jpg

Different machine models are available to meet a wide range of premade bag sizes.

With an upgrade PLC control system, easy to operate on the touch screen of parameter setting.

Customized main machine structure for various kinds of bag shapes. Like doypack zipper bag, 4 side seal bag, stand up the bag and irregular bag, etc.

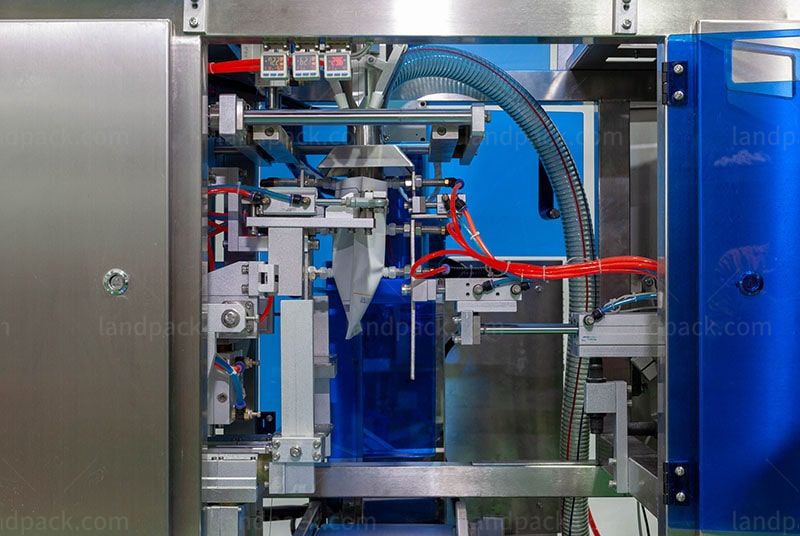

Multiple working stations to meet the fully automatic process of bag pickup, date printing, bag opening, filling, bag arranging, sealing, and output.

Machine machines can equip with a different metering system like a weigher, liquid pumps, auger filler, bucket chain for different kinds of product filling and packing in premade bags.

Model
LDB-300D
Bag MaterialMultilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type
3 Side Seal Bag, Stand-up Bag
Upgradable Bag TypeGusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range
80mm≤W≤300mm 100mm≤L≤400mm
Speed
0~15bags/min
Sealing Type
Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width10mm (5--20mm can be customized)
Voltage220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure0.65Mpa
Air Consumption0.3m³/min (Standard machine, no additional function)
Body Dimension1770*600*1260mm
Packing Dimension1860*710*1650mm (Export non-fumigation wooden case)

After receiving your inquiry,We will send you the quotation as soon as possible.
