Application:
Suitable for automatic filling and sealing of retort pouches and stand-up pouches containing liquid, semi-liquid, and granule products.
Widely used for ready meals, sauces, soups, curries, pickled food, seasoning paste, pet food, and similar products.
Applicable to food processing, central kitchens, and prepared food industries requiring sealed flexible packaging.
Package Type:
Suitable for premade retort pouches or stand-up pouches (doypack), sealed with heat sealing.
Supports granule, liquid, or mixed filling (granule + liquid), providing sealed flexible packaging for prepared food products.

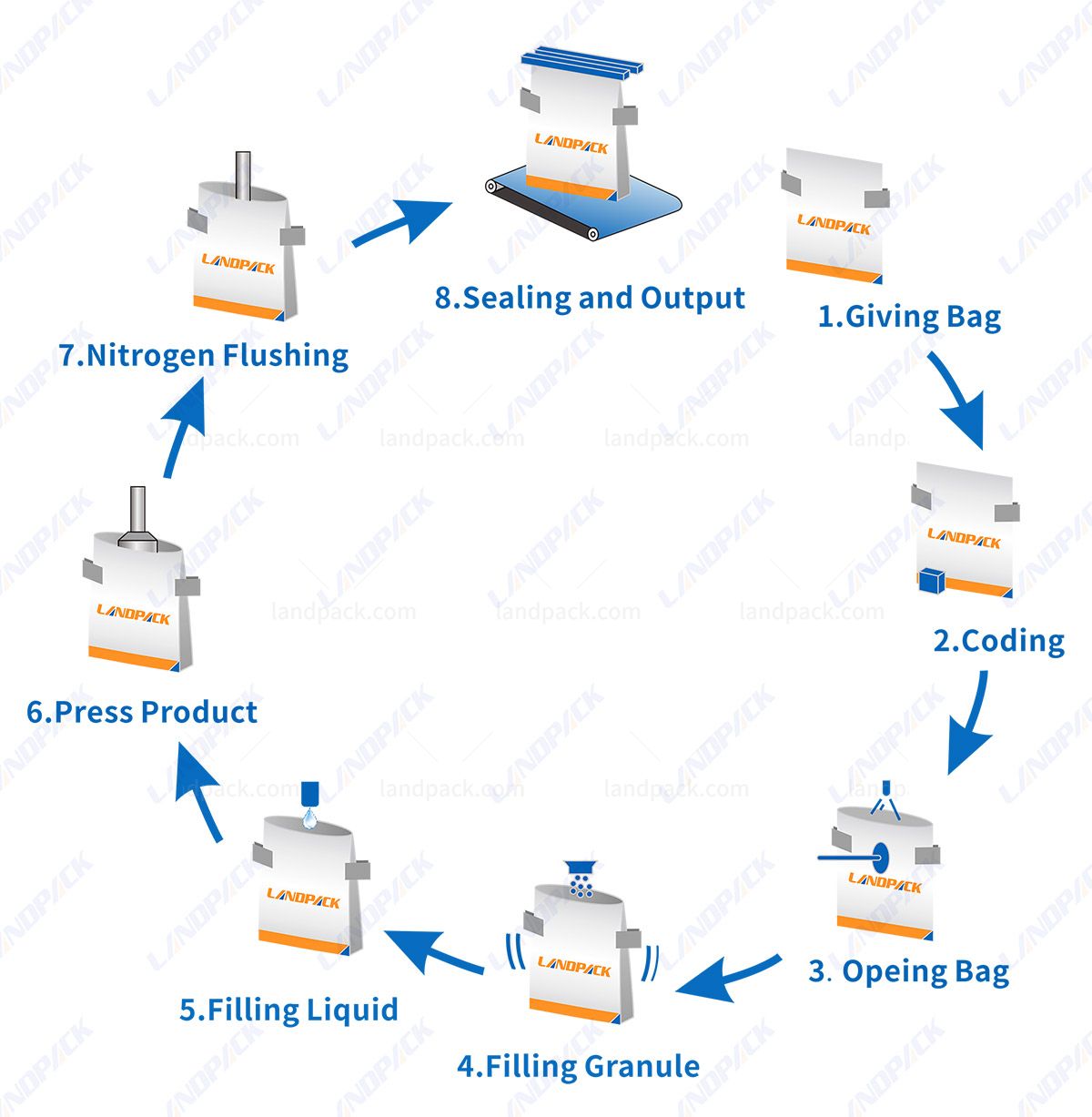

Workflow:
1. Bag feeding → 2. Coding → 3. Bag opening → 4. Filling (granule + liquid) → 5. Press Product → 6. Nitrogen Flushing → 8. Sealing and Output

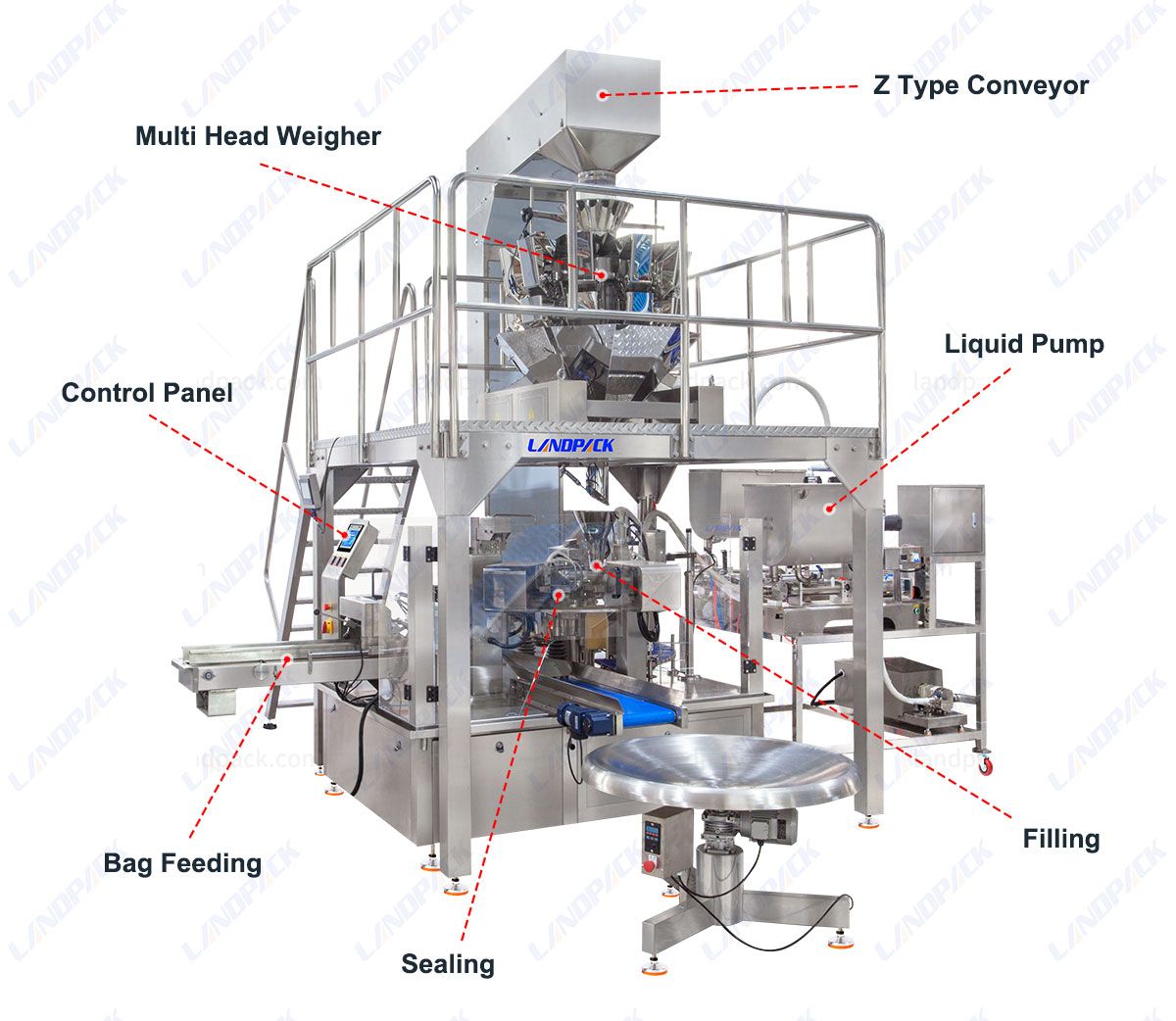

Machine Structure Overview:
1. Z Type Conveyor 2. Multi Head Weigher 3. Control Panel 4. Liquid Pumb 5. Bag Feeding 6. Filling 7. Sealing
Feature:
1. Rotary turntable structure for continuous circular operation.
2. Automatic pouch feeding, opening, filling, sealing, and discharge system.
3. Multi-station design for step-by-step processing.
4. Compatible with premade retort pouches and stand-up pouches.
5. Combination filling system for granule and liquid products.

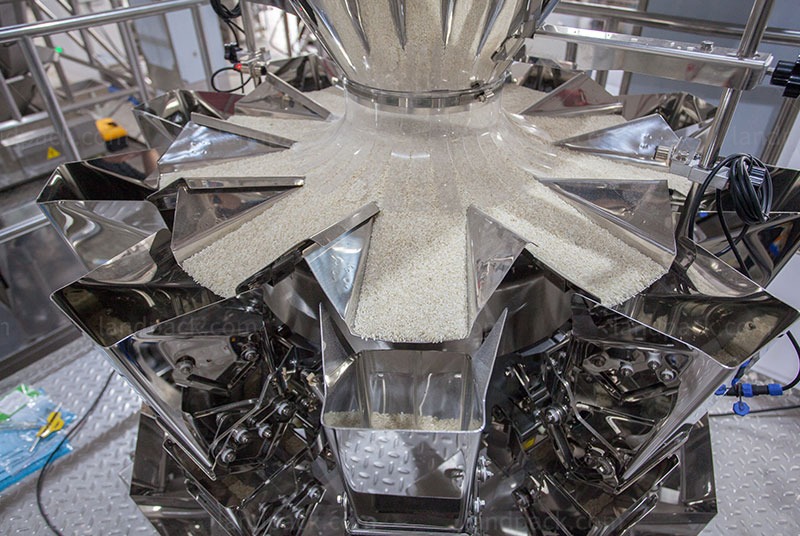

6. Multi-head weigher for solid dosing and pump for liquid filling.
7. Nitrogen flushing option for reducing oxygen content.
8. Heat sealing system with controlled temperature and pressure.
9. PLC control with touchscreen interface.
10. Sensors for pouch detection and positioning.
11. Stainless steel construction for product contact areas.
12. Servo-driven system for synchronized movement.
| Model | LD-8260A |
| Bag Size | Width:70-120mm/120-200mm, Length:80-160mm/150-300mm |
| Filling Volume | 10-500g (Depending on type of products) |
| Capacity | 30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute |
| Package Accuracy | Error≤±1% |
| Total Power | 2.5KW/5.5kw (220V/380V,3PH,50HZ) |
| Demension | 2100*1400*1700 mm/2600*1900*1700(Length*Width*Height) |
| Weight | 1600KGS/3000kgs |
| Compress Air Requirement | ≥0.8m³/min supply by user |
| Pouch Type | All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout, portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc. |
After receiving your inquiry,We will send you the quotation as soon as possible.
