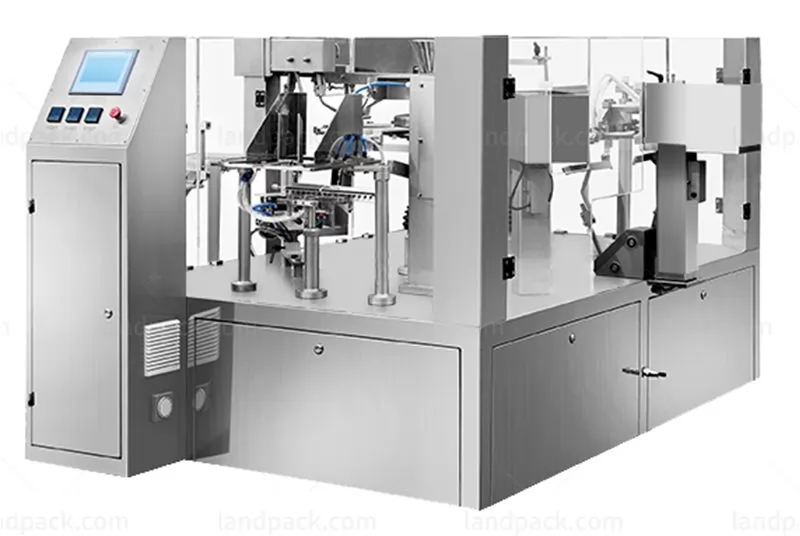

Automatic Big Premade Pouch Rotary Packing Machine

  • Application
  • Description
  • Parameter
  • Video


Suitable Pouches: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Big Premade Pouch Rotary Packing Machine

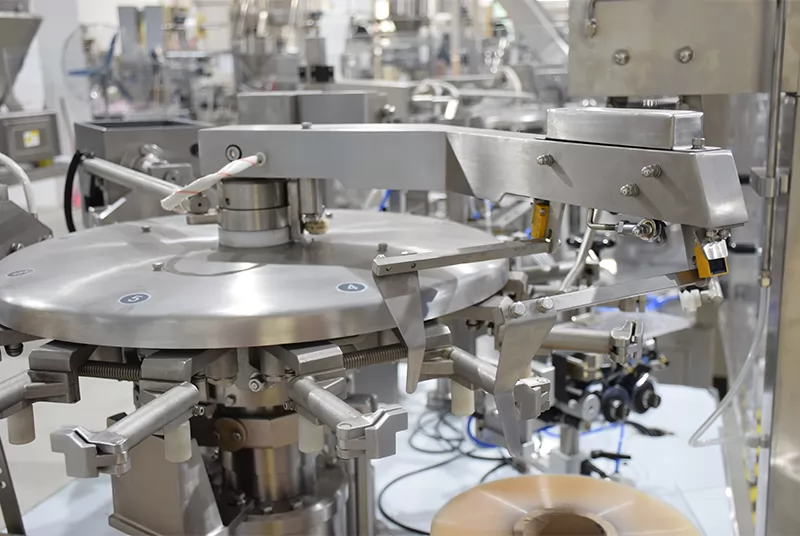

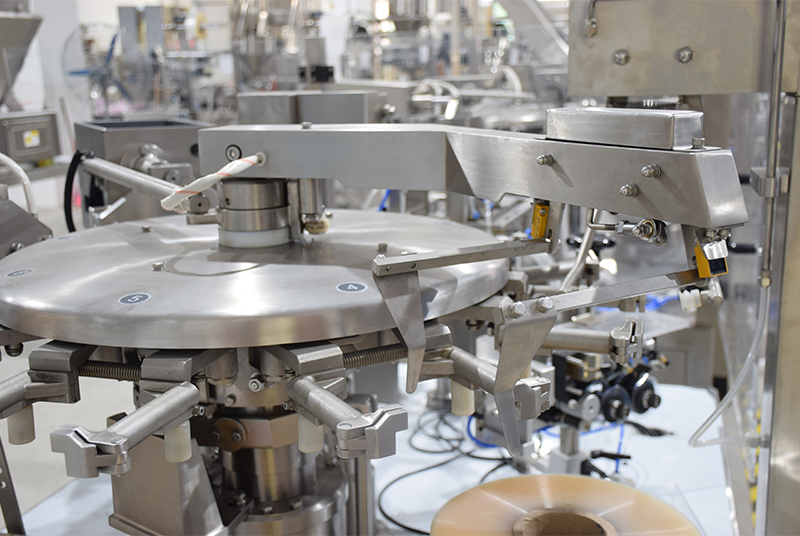

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

Automatic checking system can check bag situation, filling and sealing situation.

The system shows: 1.no bag feeding, no filling and no sealing; 2.no bag opening/opening error, no filling and no sealing; 3.no filling, no sealing.

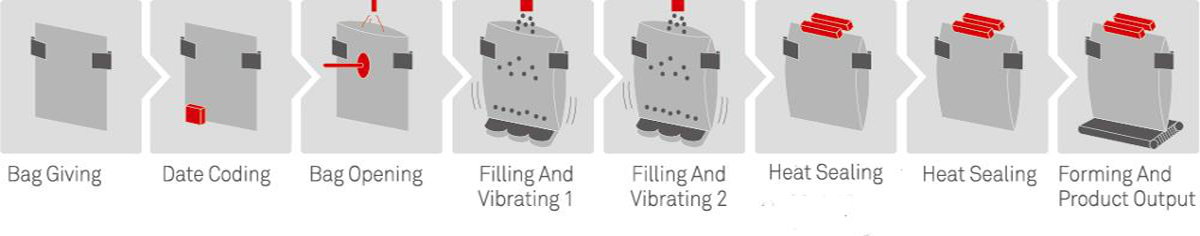

Work Process:Automatic Big Premade Pouch Rotary Packing Machine

FunctionPouch Fill/Sealing Machine
Capacity(PPM)30~40bags/min(the speed depends on type of products), 25~35bags/min (for zipper pouch)
Pouch SizeW: 200~300mm, L: 100~350mm.
Filling Volume10-2500g(Depend on type of products)
Package AccuracyError≤±1
Total power4KW(220V/380V,3PH,50HZ)
Compress air requirement≥0.6m³/min supply by user
