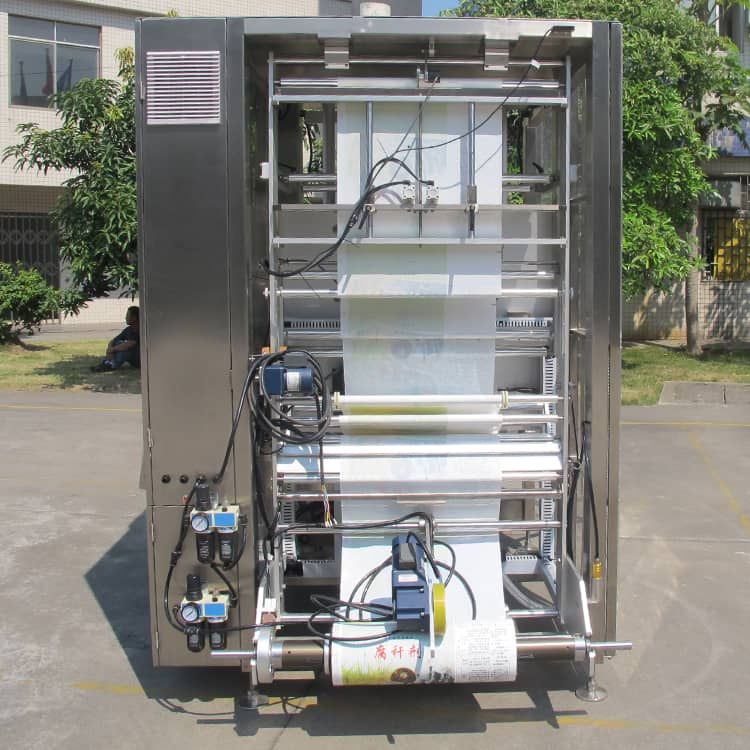

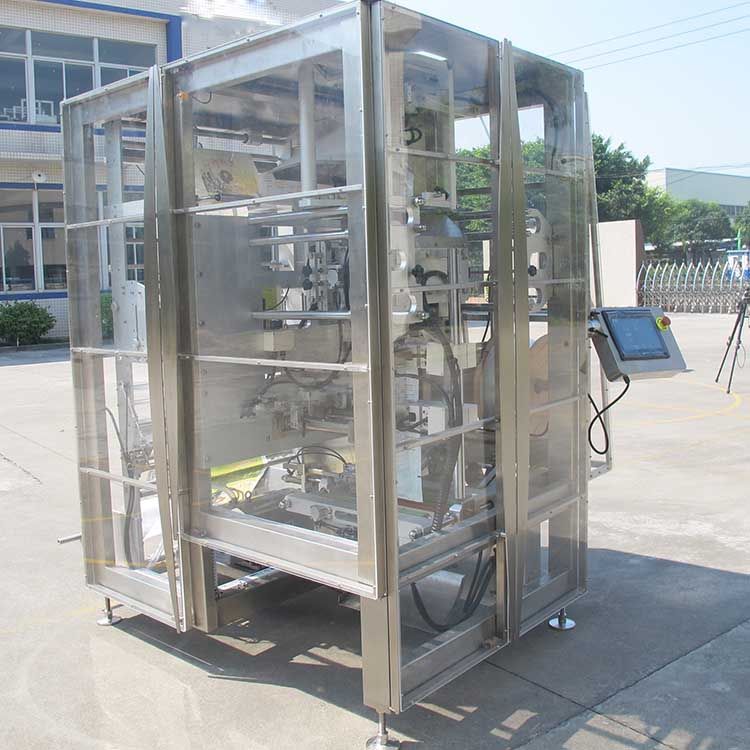

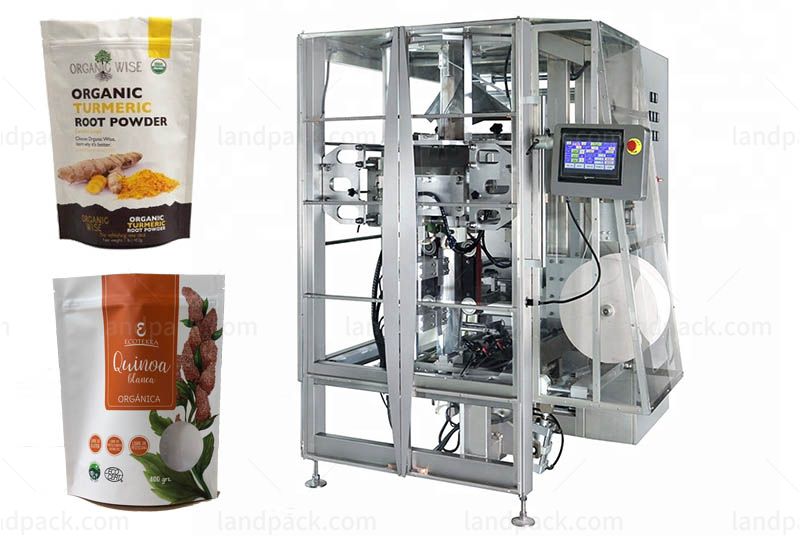

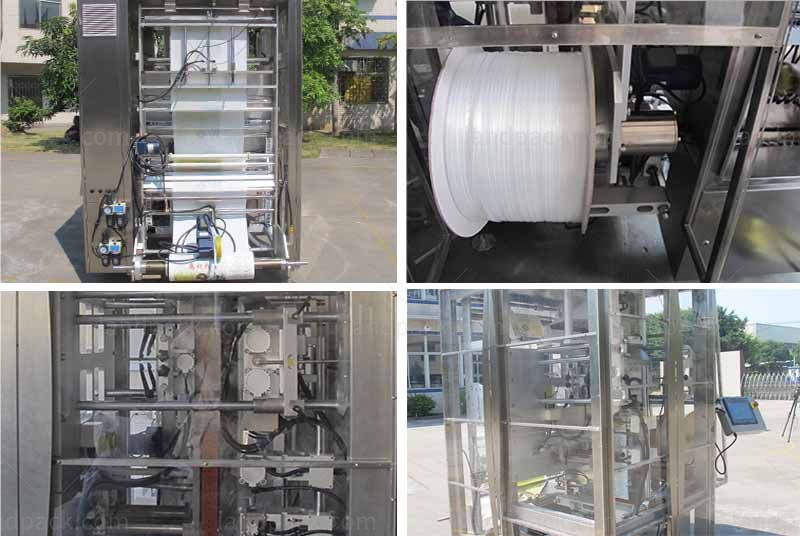

Automatic Granule Doypack Zipper Bags VFFS Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

FEATURES: This is specially for packing doy bags with zipper being form fill sealed in machine.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Granule Doypack Zipper Bags VFFS Packing Machine

FEATURES: This is specially for packing doy bags with zipper being form fill sealed in machine.

1. More than 95% spare parts are made of stainless steel. It can be used in humid environments stably and keep long time running.

2. All controlled by servo motor with planetary gear box. There are belts and vacuum pump control pulling film system

3. High standard bag type for market promotion.

4. Servo or cylinder can be chosen for horizontal sealing

5. The bottom side sealing and vertical sealing controlled by screw mandrel to adjust different size

6. With patent right for wrinkle tensioning device to make the bag better sealing

7. The bag forming tube is with five sides design, to make the perfect bag type and keep it nice.

NAMELD-DP520
Capacity40 Bags/min Maximum
Bag size(L)40-130 (W) 95-180mm
Film width300-520mm
Bag typestandard doy-pack Bags, doy-pack Bags with zipper
Film thickness0.04-0.09mm
botom gusset depth40-80mm
Air consumption0.8Mps 0.7m³/min
Total power5.3KW  220V 50/60HZ
DimensionL1920×W1460×H2100mm
Net Weight750kg

After receiving your inquiry,We will send you the quotation as soon as possible.
