Powder premade pouch rotary doypack machine LD-8200D/LD-8250D

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for preformed bag powder packing , such as milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

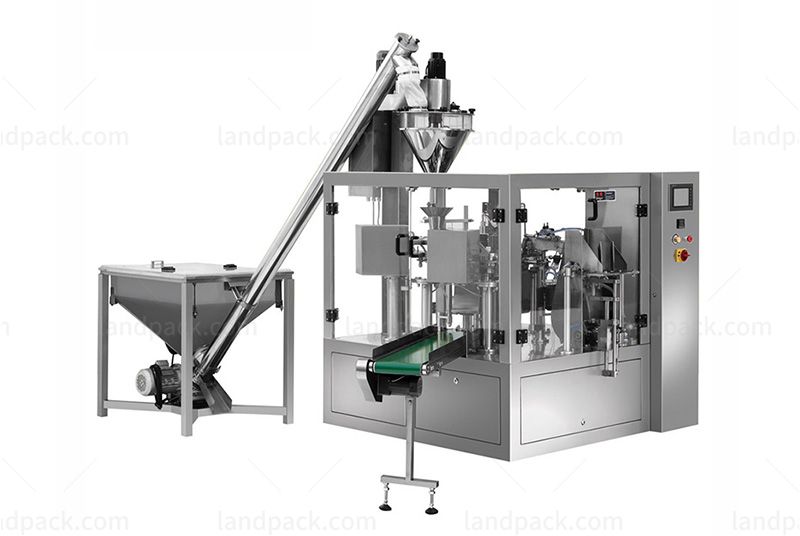

Packing Exambers:    Powder premade pouch rotary doypack machine LD-8200D/LD-8250D

1. Wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).

2. Easy To Operate:PLC control, man-machine interface is friendly.

3. Variable frequency speed regulation:Used frequency conversion adjustment device, the speed can be adjusted within the range according to the needs of reality in production.

4. Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.

5. The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.

6. Use no oil vacuum pimp,avoid polluting the enviroment in the production.

7. Easy to clean:the machine table can be washed.

ModelLD-8200/LD-8250
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
