Application:
The Capsule Counting Packaging Machine For Premade Pouch is suitable for Capsules, tablets, coated tablets, effervescent tablets and healthcare medicines, Vitamin capsules, fish oil softgels, probiotics, collagen tablets and dietary supplements, Candy tablets, mint tablets, chewing tablets and functional food products.
Package Type:
The Capsule Counting Packaging Machine supports various premade pouch types, including stand-up pouches, zipper pouches, doypack, premade pouches, spout pouches, and customized premade bags.
Workflow:
Material Feeding → Capsule Counting → Pouch Feeding → Pouch Opening → Product Filling → Heat Sealing → Weight Inspection → Finished Product Discharge

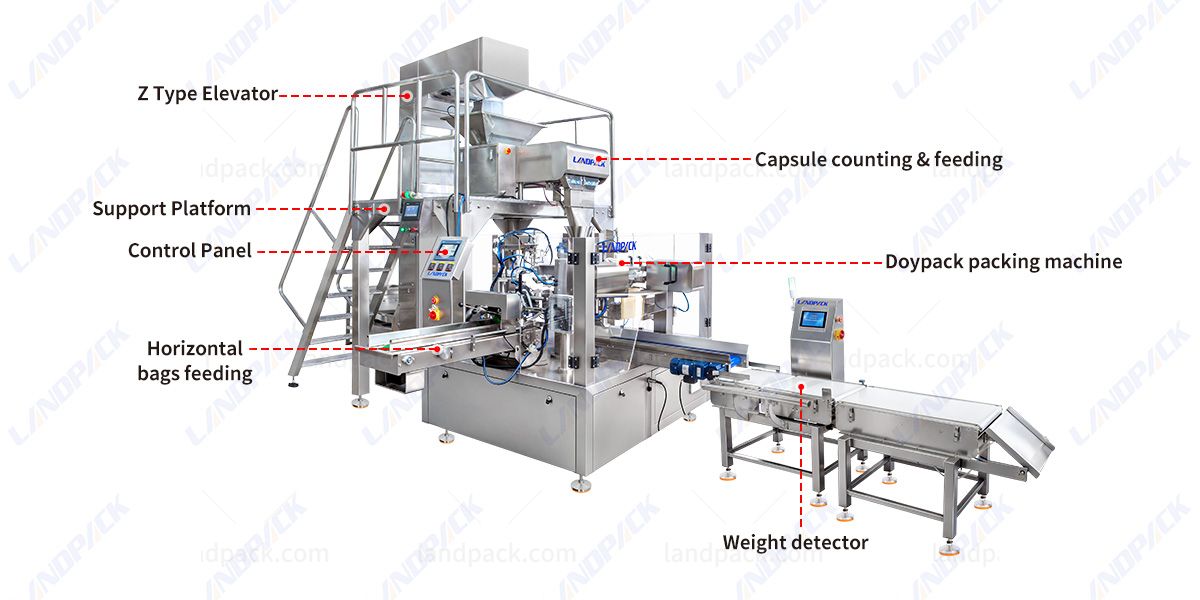

Machine Key Components:
Features:
1. SUS304 stainless steel construction, fully compliant with GMP requirements.

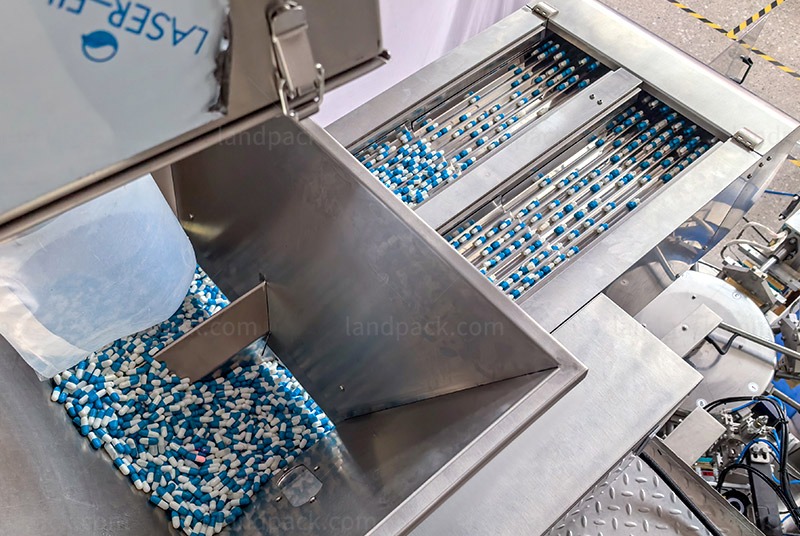

2. Customized 16-channel counting system ensures high counting accuracy for tablets and capsules.
3. Siemens PLC and touch screen control for easy operation and stable performance.
4. One-touch bag width adjustment, supporting premade pouches up to 230mm wide.

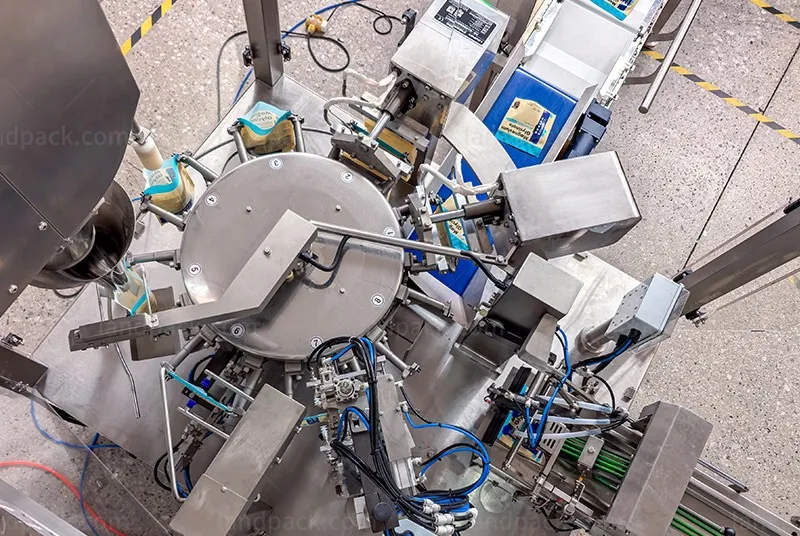

5. Automatic zipper pouch opening with top and bottom vacuum suction cups.
6. Intelligent "No Bag Open, No Fill" function reduces product waste.
7. Vibration settling, product pressing and double sealing ensure neat and secure pouch sealing.
8. Integrated check weigher verifies finished pouch weight for consistent packaging quality.
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||
| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
